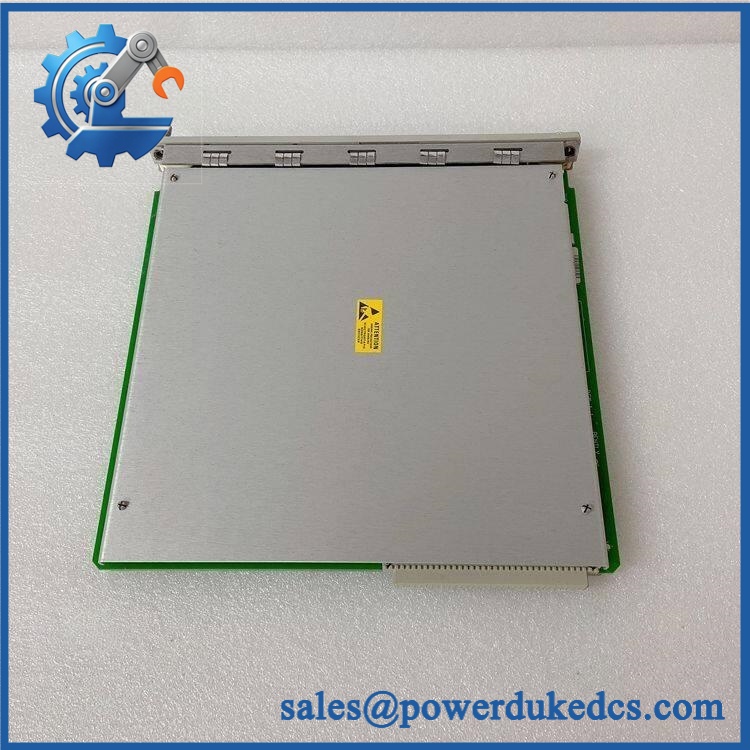

Bently Nevada 124761-01 | 3500 Power Supply Module

• Brand: Bently Nevada
• Full Model Number: 124761-01
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: 3500 Series machinery protection rack power supply
• Top 3 Technical Specs: 3500 Series; half-height rack module; exact power-input variant must be verified from the installed unit
• Stock & Condition: New surplus / tested refurbished — verify exact power-supply configuration before PO

The 3500/15 is the Bently Nevada power-supply family used in 3500 machinery-protection racks. The supply is a half-height module installed in the designated left-side rack slots, with one or two supplies permitted for primary/backup operation.

Module 3: Obsolescence & Supply Chain Deep Dive

When a Bently Nevada 3500 rack loses its power supply, the failure can affect the entire machinery-protection system rather than a single monitoring channel. An exact replacement keeps the installed 3500 rack architecture intact and can be considerably faster than redesigning the protection system. The 3500 system is specifically designed for continuous online machinery monitoring and protection, while the 3500/15 supplies the operating power required by the rack modules.

For TCO, the main benefit is avoiding unnecessary rack replacement, rewiring, engineering, commissioning, and extended machinery outages. A replacement power supply can preserve the existing 3500/05 rack, TDI, monitor modules, relay modules, and configuration. One important procurement qualification remains: 124761-01 should be verified against the actual installed power-supply assembly and input configuration before purchase. Bently Nevada documents multiple 3500/15 supply options, including universal AC, high-voltage DC, and low-voltage DC versions, and several of these are specifically incompatible with legacy power-input modules.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Power-supply variant mismatch: Bently Nevada’s current 3500/15 documentation lists universal AC, high-voltage DC, and low-voltage DC configurations. These are not universally interchangeable. In particular, the current documentation states that newer universal AC and DC supplies/PIMs are incompatible with certain legacy power-supply and PIM combinations.

Primary/backup arrangement: A 3500 rack can contain one or two power supplies. With two supplies installed, the lower unit serves as primary and the upper unit as backup; either supply can power a full rack. This arrangement also permits removal or insertion of one supply without interrupting rack operation, provided the second supply remains available.

Bently Nevada 124761-01

Module 5: Quality Assurance & Testing SOP

Power-supply testing should confirm both electrical performance and correct interaction with the 3500 rack.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and date-code information.
• Perform OEM anti-counterfeit visual inspection.
• Inspect housing, card edge, connectors, mounting hardware, and front-panel indicators.
• Check for corrosion, contamination, damaged components, bent contacts, or unauthorized repair.

2. Configuration verification

• Confirm 124761-01 identification.
• Identify the installed power-input configuration and associated PIM.
• Verify whether the unit belongs to a universal AC, high-voltage DC, low-voltage DC, or legacy configuration.
• Compare the replacement with the existing rack’s power-input assembly before energization.

3. Power-on testing

• Install the supply in an appropriate 3500 test rack.
• Apply controlled input power within the applicable specification.
• Perform power-on self-test (POST) at the rack level.
• Verify the Supply OK LED and all relevant rack status indications.
• Confirm stable startup without undervoltage or overvoltage alarms.

4. Electrical and rack testing

• Measure applicable output voltages under no-load and representative load conditions.
• Verify stable operation under representative rack loading.
• Perform I/O load testing at the rack level where applicable.
• Check communication and diagnostic status from the associated 3500 system.
• Where redundant supplies are installed, verify primary/backup behavior by controlled removal testing.

5. Final QC

• Record input conditions, measured outputs, serial number, and test date.
• Document the associated PIM configuration.
• Generate a unit-specific Test Report.
• Package using ESD protection, cushioning, and moisture protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 124761-01 genuinely in stock, and what is the emergency-shipping cutoff?

Physical stock should be confirmed against the actual unit, including part number, serial number, condition, and configuration. Emergency dispatch depends on completed QC, order/payment clearance, warehouse handling, and the courier cutoff.

How do you guarantee the condition and authenticity of an obsolete or surplus unit?

Require nameplate and serial-number verification, PCB and connector inspection, controlled power-up, electrical output measurements, rack-level testing, and a unit-specific Test Report. The actual unit photographs should be retained as part of the procurement record.

Are there compatibility issues my engineers should check before issuing the PO?

Yes. The critical point is the power-input configuration and associated Power Input Module (PIM). Bently Nevada documents multiple 3500/15 configurations and explicitly identifies incompatibilities between certain current and legacy supply/PIM combinations. Match the installed hardware before approving the replacement.

Can I substitute another 3500 power-supply part number?

Not automatically. Different 3500 power-supply variants can require different PIM configurations. A physically similar module may therefore be electrically incompatible with the installed rack. Confirm the exact power-supply and PIM combination first.

What warranty and return terms should procurement require?

Specify the complete part number, serial number, tested condition, warranty duration, DOA criteria, acceptance period, and return procedure in the PO. For a machinery-protection power supply, successful rack startup and stable electrical output should form part of the acceptance criteria.
