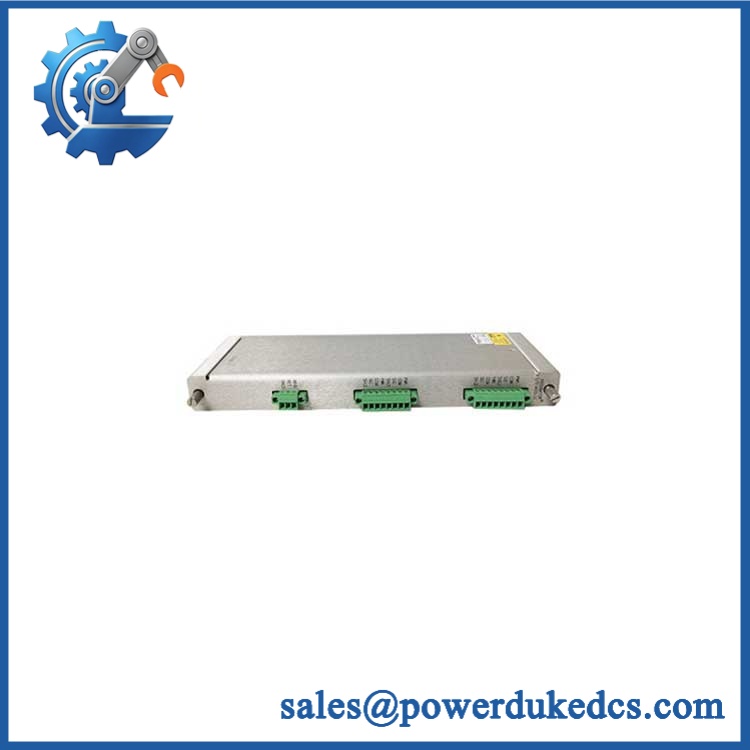

Bently Nevada 125680-01 | 3500/40M Proximitor I/O Module

Description

• Brand: Bently Nevada
• Full Model Number: 125680-01
• Lifecycle Status: Active / Current 3500 Series Spare
• Core Function: 3500/40M Proximitor I/O module with internal terminations
• Top 3 Technical Specs: 3500/40M application; 4-channel Proximitor I/O; Internal terminations
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed I/O module can disable the signal path between proximity probes and a machinery protection rack, even when the 3500/40M monitor itself remains operational. The Bently Nevada 125680-01 is the Proximitor I/O Module with Internal Terminations associated with the 3500/40M Proximitor Monitor. The 3500/40M is a four-channel monitor designed to accept proximity-transducer signals and support measurements such as radial vibration, thrust position, differential expansion, eccentricity, and related monitoring functions. Because the I/O module is part of that signal chain, the exact termination configuration must be matched before procurement.

For an installed 3500 system, replacing the failed I/O module can be considerably less expensive than redesigning the monitoring cabinet or converting the field interface to a different termination architecture. Existing monitor hardware, rack wiring, sensor infrastructure, and protection logic can remain in place when the replacement is correctly matched. That reduces engineering hours and outage exposure while preserving the existing maintenance strategy. —For emergency requirements, the main procurement risk is usually not firmware; it is selecting the wrong I/O configuration, particularly confusing an internal-termination 125680-01 with an externally terminated 3500/40M I/O variant.

Bently Nevada 125680-01

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: For an exact spare already available at the site, plan approximately 1–3 hours for module replacement, termination verification, channel checkout, and functional testing. A sourced unit may require 1–5 business days for inspection and expedited transportation, depending on destination and carrier cutoff.

Field Traps — Watch Out

• Internal vs. external terminations: The 125680-01 is specifically the Proximitor I/O Module with Internal Terminations. An external-termination version may require a different field-wiring arrangement.
• Monitor compatibility: Confirm the installed monitor is the 3500/40M Proximitor Monitor before approving the replacement.
• Channel configuration: The 3500/40M is a four-channel monitor. Verify each channel’s sensor type and configured measurement before returning the rack to service.
• Field wiring identification: Photograph terminal wiring before removal. A correct module with incorrectly landed field wiring can produce misleading vibration or position readings.

Module 5: Quality Assurance & Testing SOP

For machinery protection equipment, an I/O module should be qualified as part of the measurement chain rather than accepted solely on visual condition.

• Part-number verification: Confirm 125680-01, manufacturer markings, revision information, and serial/traceability data.
• OEM anti-counterfeit visual inspection: Inspect Bently Nevada identification, PCB markings, enclosure, connectors, terminal blocks, component placement, and evidence of unauthorized rework.
• Physical condition inspection: Check the module housing, internal termination area, terminal interfaces, connector contacts, mounting hardware, and PCB surfaces.
• Termination inspection: Verify all internal terminal interfaces for bent contacts, corrosion, contamination, loose hardware, and mechanical damage.
• Continuity testing: Check applicable signal and ground paths before functional energization.
• Power-on self-test (POST): Install the module in an appropriate 3500 test configuration and verify expected rack startup and module recognition.
• Channel testing: Apply controlled proximity-probe simulator signals to all applicable channels and verify correct signal acquisition.
• Signal-path verification: Confirm that each channel passes the expected transducer signal through the internal termination path to the associated 3500/40M monitor.
• Measurement verification: Test representative vibration, position, or other configured measurement functions and compare displayed values against calibrated inputs.
• I/O load testing: Apply representative signal conditions while monitoring channel stability, noise, and abnormal temperature rise.
• Alarm-path testing: Where the test setup permits, verify that simulated measurement changes produce the expected monitor response and alarm behavior.
• Extended observation: Run the module under controlled signal conditions to detect intermittent channel faults or unstable connections.
• Final QC release: Record part number, revision, serial number, channel-test results, photographs, condition grade, test date, and QC authorization.

The current 3500/40M documentation identifies 125680-01 specifically as the Proximitor I/O Module with Internal Terminations, while a separate ordering number is used for the external-termination version. This distinction should remain visible on the purchase specification.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 125680-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 125680-01 part number before the PO is accepted. Emergency shipment depends on QA completion, warehouse location, carrier pickup time, and destination. Same-day dispatch should only be confirmed after the actual module has been identified and released.

Q2. How do you guarantee the condition and authenticity of a 125680-01?
Require exact part-number verification, OEM visual inspection, connector and termination inspection, continuity checks, controlled channel testing, and a documented QC record. Actual photographs of the module identification and condition should be retained with the procurement file.

Q3. Is the 125680-01 a 3500/40M monitor?
No. The 125680-01 is the Proximitor I/O Module with Internal Terminations. The associated 3500/40M monitor is a separate module. Procurement should not confuse the I/O module part number with the monitor part number.

Q4. Can an externally terminated Proximitor I/O module replace the 125680-01?
Not as a direct substitution without engineering review. The key distinction is the termination architecture. The 125680-01 uses internal terminations, so replacing it with an external-termination version can require changes to field wiring and termination hardware.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, functional-failure coverage, return authorization procedures, inspection period, and serial-number traceability. For refurbished inventory, require the actual channel-test record and clearly define whether failures discovered during commissioning are covered.
