Description
- Brand: Bently Nevada
- Full Model Number: 125704-01
- Lifecycle Status: Legacy / Obsolescence-risk
- Core Function: TMR relay I/O module for the 3500 Machinery Protection System
- Top 3 Technical Specs: 3500/34 TMR Relay I/O | Six relay output channels | 2-out-of-3 voting architecture
- Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff
Module 3: Obsolescence & Supply Chain Deep Dive
A failed relay output module in a machinery protection rack can prevent confirmed trip commands from reaching the field even when the monitor modules themselves remain operational. Bently Nevada documentation identifies 125704-01 as the TMR Relay I/O module for the 3500/34, and the 3500 field-wiring documentation associates this part number directly with the 3500/34 TMR Relay module. The module sits within the 3500 protection architecture, where relay logic is used to transmit alarm and shutdown decisions to external equipment. Bently Nevada describes the 3500 platform as a continuous machinery protection system intended for applications including turbines, compressors, generators, motors, pumps, and other critical rotating equipment.
For an installed 3500 rack, replacing the affected relay I/O module is generally a smaller TCO event than migrating the complete machinery protection system. The existing rack, monitor channels, alarm logic, field wiring, and configuration can remain in service when the replacement matches the installed hardware variant. (For older 3500 installations, sourcing an exact relay I/O module can take longer than locating tested legacy inventory.) The economic calculation should account for avoided machinery outage hours, field engineering, protection testing, rewiring, and recommissioning—not merely the module purchase price. Bently Nevada’s current 3500 documentation confirms the continuing modular architecture of the system, including relay modules, monitor modules, I/O modules, and configuration software.
Module 4: Compatibility & Replacement Matrix
| Purchase Review Item | Engineering Guidance |
|---|---|
| Replacement Classification | Drop-in Replacement — conditional |
| Hardware Modification | Normally none for an exact 125704-01 installation |
| Primary System | Bently Nevada 3500 Machinery Protection System |
| Module Position | 3500/34 TMR Relay I/O |
| Relay Architecture | Triple Modular Redundant |
| Voting Logic | 2-out-of-3 |
| Output Channels | Six relay output channels |
| Typical Switch Time | ~2–6 labor hours for controlled replacement and verification |
| Typical Engineering Cost | Approximately 300–1,200 excluding plant outage and site travel |
| Recommended Migration Path | Record rack configuration → verify module and I/O part numbers → document field wiring → replace → verify relay logic → perform trip/alarm functional test |
The Bently Nevada 3500 field-wiring documentation specifically lists 125704-01 as the 3500/34 TMR Relay I/O part number. This is important during procurement because the 3500 family contains several relay I/O configurations that are not interchangeable merely because they occupy a similar rack position.
Field Traps — Watch Out
- I/O variant mismatch: Do not substitute a standard 3500/32 relay I/O module for the 3500/34 TMR configuration. Bently Nevada’s field-wiring documentation distinguishes 125720-01 for the 3500/32 4-channel Relay I/O from 125704-01 for the 3500/34 TMR Relay I/O.
- Trip-logic verification: Preserve the existing alarm/trip logic and field wiring documentation before removal. After installation, verify the complete protection path rather than accepting a normal module power indication as proof of correct operation.

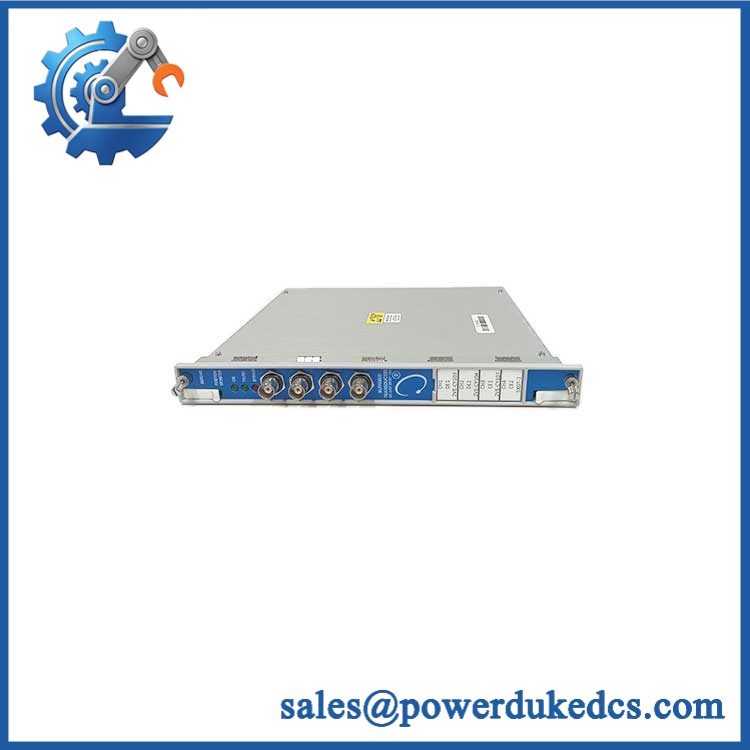

Bently Nevada 125704-01 3500/34
Module 5: Quality Assurance & Testing SOP
A strict pre-shipment inspection for Bently Nevada 125704-01 should include:
- Identity verification: Confirm the complete 125704-01 part number, module designation, serial information, faceplate markings, connectors, and hardware configuration.
- OEM anti-counterfeit visual inspection: Examine Bently Nevada markings, PCB identifiers, component placement, connectors, solder work, labels, and evidence of unauthorized repair.
- Mechanical inspection: Check the module housing, card edge, terminal/interface connections, mounting hardware, and PCB condition for cracks, corrosion, contamination, or bent contacts.
- Power-on self-test (POST): Install the module in an approved 3500 test rack and verify normal startup and diagnostic behavior.
- Relay output test: Exercise each applicable relay output and confirm expected energized/de-energized states.
- TMR voting test: Simulate independent alarm/trip states and verify the expected 2-out-of-3 voting response.
- Alarm logic test: Verify relay activation against controlled Alert/Danger or trip-condition simulations.
- I/O load testing: Exercise relay contacts with representative controlled loads and monitor contact behavior.
- Continuity verification: Test applicable normally energized/de-energized contact paths and terminal assignments.
- Rack communication check: Confirm correct module recognition and interaction with the installed 3500 rack configuration.
- Extended operation: Monitor relay behavior and diagnostic status during sustained operation to identify intermittent contact or module faults.
- Final QC release: Record serial number, test results, contact-state verification, condition grade, photographs, and packaging approval.
Bently Nevada’s 3500 architecture uses relay modules to act on monitor alarm states, and the 3500/34 TMR arrangement is specifically identified in the field-wiring documentation as a distinct relay I/O configuration.
Module 6: Procurement & Lifecycle FAQ
Is Bently Nevada 125704-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 125704-01 part number before PO release. Emergency dispatch depends on inventory location, payment clearance, export documentation, and the carrier’s daily pickup schedule.
How do you verify the condition and authenticity of an obsolete 125704-01 module?
Require part-number and serial verification, OEM marking inspection, PCB examination, power-up diagnostics, relay-output testing, TMR voting verification, contact continuity testing, and documented final QC. The supplied condition should be clearly classified as New Surplus or Tested Refurbished.
Can I replace 125704-01 with another 3500 relay I/O module?
Not automatically. Bently Nevada documentation distinguishes the 125704-01 3500/34 TMR Relay I/O from the 125720-01 3500/32 4-Channel Relay I/O. The replacement must match the installed protection architecture and field wiring.
Does the replacement require software or firmware changes?
For an exact hardware replacement, extensive software modification is not normally expected. The engineering team should still verify the rack configuration, relay logic, module type, and programmed alarm/trip behavior before returning the protection system to service.
What warranty and return terms should procurement require?
The quotation should specify the exact 125704-01 part number, condition grade, serial traceability, pre-shipment test scope, warranty period, DOA coverage, and return authorization procedure. For machinery-protection hardware, the test record should remain associated with the specific serial-numbered unit supplied.
