Bently Nevada 125736-01 3500/92 | Modbus RS232 RS422 I/O Module

Description

• Brand: Bently Nevada
• Full Model Number: 125736-01
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: 3500/92 communication gateway Modbus I/O interface
• Top 3 Technical Specs: Modbus RTU; RS-232 / RS-422; 10BASE-T Ethernet interface via 3500/92 gateway
• Stock & Condition: New surplus / tested refurbished — verify exact 3500/92 configuration before PO

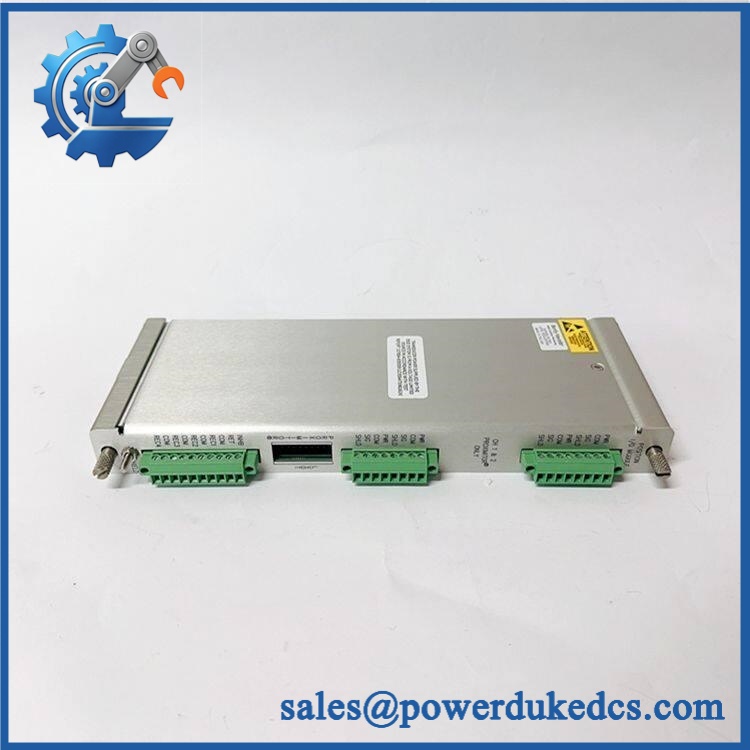

The 125736-01 is documented as the Modbus RS-232/RS-422 I/O module used with the Bently Nevada 3500/92 Communication Gateway. It occupies one full-height rear slot in the 3500 rack and interfaces monitored rack data with external control or data-acquisition systems.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 125736-01 can interrupt the communication path between an installed 3500 monitoring rack and the plant’s PLC, DCS, SCADA, or data-acquisition system. The issue is not necessarily a loss of vibration monitoring itself; the greater problem can be loss of access to monitored values and rack status at the supervisory level. The 125736-01 is the serial Modbus I/O module specified for the 3500/92 Communication Gateway, supporting RS-232 and RS-422 communication.

For TCO, replacing the communication I/O module is normally far less disruptive than replacing an entire 3500 communication architecture. Existing rack hardware, communication mapping, PLC/DCS interfaces, and monitoring software can remain in service when the replacement matches the installed configuration. The key procurement point is configuration accuracy: Bently Nevada documents several 3500/92 I/O variants, including 125736-01 for Modbus RS-232/RS-422, so another communication I/O part number should not be assumed compatible merely because it belongs to the same 3500/92 family.

Bently Nevada 125736-01 3500/92

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

RS-232/RS-422 versus RS-485: The 125736-01 is specifically documented as the Modbus RS-232/RS-422 I/O module. Bently Nevada separately lists 133323-01 for Modbus RS-485. These should not be treated as interchangeable without reviewing the existing wiring and communication interface.

3500/92 Assembly Dependency: The 125736-01 is an I/O module associated with the 136180-01 3500/92 Communication Gateway Module. Verify that the host gateway, memory configuration, firmware, and I/O module match the installed system before commissioning.

Module 5: Quality Assurance & Testing SOP

The 125736-01 should be validated as a communication component, with the final acceptance criterion being correct data exchange.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and revision/date-code markings.
• Perform OEM anti-counterfeit visual inspection.
• Inspect the PCB, rear-panel connector, mounting hardware, and communication interface.
• Check for corrosion, contamination, cracked components, bent pins, damaged traces, or unauthorized rework.

2. Configuration verification

• Confirm 125736-01 identification.
• Verify the module is the Modbus RS-232/RS-422 configuration.
• Confirm compatibility with the associated 3500/92 gateway.
• Photograph identification labels and connector areas for traceability.

3. Power-on testing

• Install the module into a compatible 3500/92 test rack.
• Apply controlled rack power.
• Perform power-on self-test (POST) at the system level.
• Verify module and gateway status indications.
• Confirm the gateway initializes without hardware or communication alarms.

4. Communication and I/O testing

• Connect controlled RS-232 and/or RS-422 test equipment.
• Verify Modbus RTU communication.
• Confirm baud rate, parity, stop-bit, node-address, and timeout behavior.
• Read representative monitored values from the 3500 rack.
• Verify correct register mapping and data integrity.
• Test communication continuously to identify intermittent link failures.
• Perform I/O load testing where the associated interface requires it.

5. Final QC

• Record communication parameters and test results.
• Record serial number and test date.
• Generate a unit-specific Test Report.
• Confirm connector integrity and physical condition.
• Package with ESD protection and mechanical cushioning.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 125736-01 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual serial-numbered module and its condition. Emergency dispatch depends on QC completion, payment/order clearance, warehouse processing, and the courier pickup cutoff.

How do you guarantee the condition and authenticity of an obsolete or surplus 125736-01?

Require complete part-number verification, serial-number traceability, PCB and connector inspection, controlled 3500/92 power-up, Modbus communication testing, and a unit-specific Test Report. Actual photographs of the supplied module should also be retained for procurement records.

Are there compatibility issues my engineers should check before issuing the PO?

Yes. Confirm that the installed 3500/92 requires Modbus RS-232/RS-422. Bently Nevada separately specifies other I/O variants for RS-485 and Ethernet-based combinations, so the interface type must match the plant’s existing communication wiring and architecture.

Can I substitute 133323-01 or another 3500/92 I/O module?

Not without an engineering review. 133323-01 is the Modbus RS-485 version, while 125736-01 is the RS-232/RS-422 version. Other 3500/92 I/O variants use Ethernet combinations. The correct substitute depends on the installed gateway configuration and physical communication interface.

What warranty and return terms should procurement require?

Specify 125736-01, serial number, tested condition, warranty duration, DOA criteria, acceptance window, and return procedure in the PO. For this module, successful communication with the customer’s specified 3500/92 test configuration should form part of functional acceptance.
