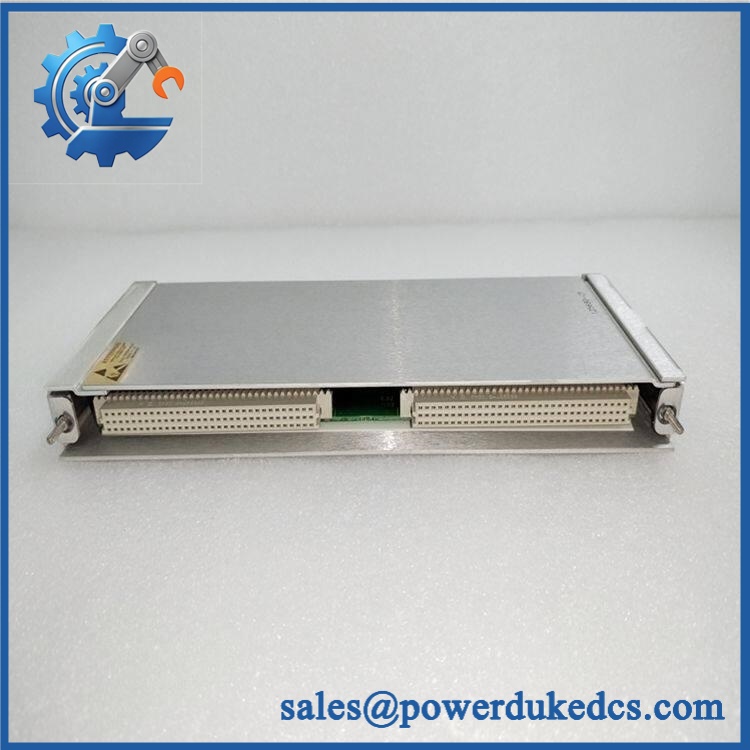

Bently Nevada 125800-01 | 3500/25 Keyphasor I/O Module

• Brand: Bently Nevada
• Full Model Number: 125800-01
• Lifecycle Status: Active / Current 3500 Series Spare
• Core Function: Keyphasor I/O signal interface for the 3500/25 Enhanced Keyphasor Module
• Top 3 Technical Specs: 3500/25 application; Internal terminations; Two-channel Keyphasor signal interface
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Keyphasor I/O interface can interrupt the phase-reference signal used by a 3500 machinery protection rack, affecting speed and phase-related monitoring even when the remaining monitor modules are operational. The Bently Nevada 125800-01 is the Keyphasor I/O Module with Internal Terminations for the 3500/25 Enhanced Keyphasor Module. The 3500/25 is a half-height, two-channel module that accepts signals from proximity probes or magnetic pickups and provides conditioned Keyphasor signals to the 3500 rack. The published parts documentation distinguishes the 125800-01 internal-termination version from the 126648-01 external-termination version.

For a plant with an operating 3500 protection system, replacing the failed I/O module can be far less expensive than changing the rack architecture or redesigning field terminations. Existing Keyphasor wiring, monitor modules, rack hardware, and machinery-protection logic can remain in service when the correct I/O configuration is selected. That reduces engineering hours and outage exposure while maintaining the existing protection strategy. —The critical procurement check is termination type: the 125800-01 is specifically an internal-termination configuration, so an apparently similar external-termination module should not be approved as a direct substitute without engineering review.

Bently Nevada 125800-01

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: For an exact spare already staged at the facility, plan approximately 1–3 hours for controlled replacement, termination verification, Keyphasor signal checkout, and rack functional testing. A newly sourced unit may require 1–5 business days for inspection and expedited transportation, depending on destination and carrier cutoff.

Field Traps — Watch Out

• Internal vs. external termination: 125800-01 is explicitly the Keyphasor I/O Module with Internal Terminations. The corresponding external-termination version is 126648-01.
• Isolated version mismatch: 125800-02 is an isolated Keyphasor I/O module designed for magnetic-pickup applications. Do not substitute it without confirming the installed transducer type and protection design.
• Channel configuration: The Enhanced Keyphasor Module uses a half-height, two-channel card. Confirm the number and type of Keyphasor signals required by the installed rack.
• Companion module identification: The 125800-01 is the I/O component; the associated Enhanced Keyphasor module is a separate assembly. Do not quote the I/O part as though it were the complete monitor card.

Module 5: Quality Assurance & Testing SOP

For machinery-protection inventory, the Keyphasor signal path should be tested as an actual measurement interface. A visual inspection alone is insufficient.

• Part-number verification: Confirm 125800-01, manufacturer markings, revision information, and serial/traceability data.
• OEM anti-counterfeit visual inspection: Inspect Bently Nevada identification, PCB markings, connectors, terminal interfaces, component placement, and evidence of unauthorized rework.
• Physical condition inspection: Check the enclosure, internal termination connectors, mounting features, PCB surfaces, and contacts for damage or corrosion.
• Termination inspection: Verify internal terminal positions, connector condition, contact integrity, and absence of contamination or mechanical damage.
• Continuity testing: Check applicable signal and ground paths before functional energization.
• Power-on self-test (POST): Install the module in an appropriate 3500/25 test assembly and verify expected module recognition and rack startup behavior.
• Keyphasor signal testing: Apply controlled simulated proximity-probe or approved signal inputs and verify correct signal acquisition.
• Signal conditioning verification: Confirm the Keyphasor output is correctly conditioned and transferred to the associated 3500 rack circuitry.
• Channel testing: Test each applicable channel independently and record input/output behavior.
• Load testing: Apply representative signal conditions while monitoring signal stability and module temperature.
• Alarm/interface verification: Confirm the associated 3500/25 module responds correctly to simulated Keyphasor signal changes.
• Extended observation: Run the module under controlled signal conditions to identify intermittent connections, unstable signal processing, or thermal faults.
• Final QC release: Record part number, revision, serial number, channel-test results, photographs, condition grade, test date, and QC authorization.

The published 3500 documentation specifies that the 125800-01 is the internal-termination I/O option, while 126648-01 is the external-termination equivalent. That distinction should appear directly on the procurement specification and receiving inspection checklist.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 125800-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 125800-01 part number before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup time, and destination. Same-day shipment should only be confirmed after the actual module has been identified and released.

Q2. How do you guarantee the condition and authenticity of a 125800-01?
Require exact part-number verification, OEM visual inspection, connector and termination inspection, continuity checks, controlled Keyphasor signal testing, and documented QC results. Actual photographs of the identification markings and physical condition should be retained with the procurement record.

Q3. Is the 125800-01 the complete 3500/25 Enhanced Keyphasor Module?
No. The 125800-01 is the Keyphasor I/O Module with Internal Terminations. The Enhanced Keyphasor electronics are a separate component, identified in the published documentation as 149369-01. Complete assemblies can be specified using the appropriate 3500/25 ordering configuration.

Q4. Can 126648-01 replace 125800-01?
Not as a direct substitution. 125800-01 uses internal terminations, whereas 126648-01 uses external terminations. The field-wiring arrangement must therefore be checked before approving any substitution.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, functional-failure coverage, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual Keyphasor channel-test record and define whether failures discovered during commissioning are covered.
