Bently Nevada 126632-01 | 3500 Rack Internal I/O Module

• Brand: Bently Nevada
• Full Model Number: 126632-01
• Lifecycle Status: Legacy / Lifecycle-managed
• Core Function: 3500 rack I/O interface hardware
• Top 3 Technical Specs: Bently Nevada 3500 platform; rack-mounted I/O architecture; application-specific interface configuration
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Emergency dispatch subject to order cutoff

126632-01 requires careful identification before procurement. Publicly indexed technical material does not provide enough authoritative detail to safely assign a specific monitor-channel function to this part number. The Bently Nevada 3500 architecture uses dedicated monitor modules together with corresponding I/O modules, so the exact module designation must be matched to the installed rack configuration.

Module 3: Obsolescence & Supply Chain Deep Dive

A wrong I/O module in a Bently Nevada 3500 rack can create a costly commissioning problem even when the replacement physically fits. The 126632-01 should therefore be sourced as an exact-identification replacement rather than substituted on the basis of similar 3500-series part numbers. The 3500 system uses a modular rack architecture containing monitor modules and associated I/O hardware, with the I/O arrangement depending on the installed monitoring function.

The TCO case remains favorable when the installed rack and monitoring architecture are still serviceable. A verified replacement can preserve existing wiring, cabinet hardware, engineering configuration, and machinery-protection logic, avoiding the cost of replacing an entire monitoring architecture. That said, 126632-01 should not be released as a universal substitute until the installed rack documentation and physical module markings have been compared — particularly where hazardous-area barriers, signal types, or dedicated monitor I/O variants are involved.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• Function-code mismatch: Do not infer the electrical function of 126632-01 from the part number alone. Match the installed module label, rack position, I/O type, and associated monitor module against the system documentation.
• Barrier and wiring configuration: The 3500 platform supports multiple I/O arrangements, including hazardous-area interfaces and different signal configurations. An apparently similar I/O assembly may not match the installed field circuit.

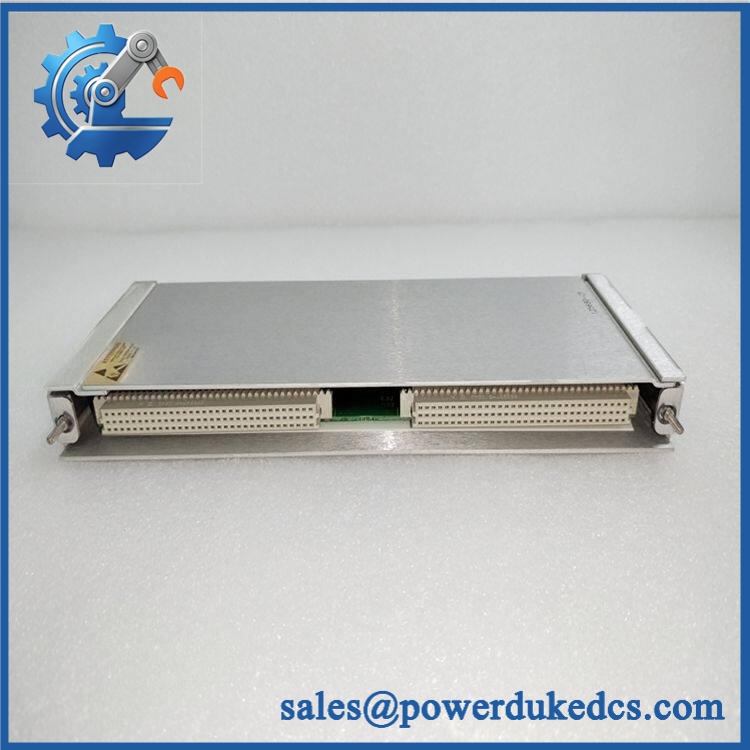

Bently Nevada 126632-01

Module 5: Quality Assurance & Testing SOP

For this part number, QA should emphasize exact identification and rack-level functional verification.

• Incoming traceability: Record Bently Nevada markings, complete 126632-01 part number, revision, serial information, and available date-code data.
• OEM anti-counterfeit visual inspection: Inspect labels, PCB markings, connectors, component population, solder quality, terminal interfaces, and evidence of unauthorized rework.
• Mechanical inspection: Check PCB edges, ejectors, mounting hardware, connectors, terminal interfaces, and rack mating surfaces.
• Power-on self-test (POST): Install in an approved 3500 test rack and verify normal startup and module-status indications.
• Power verification: Confirm correct supply behavior and check for abnormal current draw or heating.
• Rack recognition test: Verify that the 3500 rack recognizes the installed module in the expected position.
• I/O functional test: Exercise the applicable input/output paths using a calibrated test source appropriate to the identified module function.
• Signal verification: Confirm expected signal transmission between the I/O assembly and its associated 3500 monitor channel.
• Communication/diagnostic check: Verify rack diagnostics and absence of persistent module or configuration faults.
• Extended operation: Run representative signals continuously and monitor temperature, stability, and intermittent errors.
• Final QC release: Record part number, revision, rack position, test results, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 126632-01 genuinely in stock, and what is the cutoff for emergency shipping?

Physical availability should be confirmed against the exact 126632-01 part number, revision, and configuration before PO release. For a shutdown-driven order, request current photographs, the physical label, and confirmation of the warehouse location before authorizing shipment.

2. How do you verify the condition and authenticity of this surplus 3500 hardware?

Verification should combine physical identification with electrical and rack-level testing. Inspect the PCB, labels, connectors, terminal interfaces, and mounting features, followed by controlled power-up and functional I/O testing. Retain photographs and test records for MRO traceability.

3. Are there firmware compatibility issues engineers should check before issuing the PO?

The principal concern is module and I/O configuration compatibility, not simply firmware. Confirm the installed rack position, associated monitor module, signal type, field termination arrangement, and any applicable hazardous-area interface before procurement.

4. Can the 126632-01 replace the installed module without cabinet modification?

An exact replacement is generally intended to preserve the existing 3500 rack architecture. Physical compatibility alone is not enough, however. The replacement must match the installed module’s function, I/O arrangement, rack position, and field wiring.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 126632-01, exact revision/configuration, condition, inspection status, test documentation, warranty period, and return procedure. Warranty coverage should address DOA and verified functional defects while excluding damage caused by incorrect installation, unsuitable power, wiring errors, or field modification.
