Bently Nevada 132419-01 | 2201 Four Channel Monitor Module

• Brand: Bently Nevada
• Full Model Number: 132419-01 / 190662-28
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: Four-channel machinery condition and vibration monitoring
• Top 3 Technical Specs: 2201 monitoring system; 4-channel architecture; 190662-28 associated configuration
• Stock & Condition: New surplus / tested refurbished — verify 132419-01 and 190662-28 identification before PO

Current equipment listings identify 132419-01 with 190662-28 as a Bently Nevada 2201 four-channel monitor. Independent repair documentation also identifies the unit as a four-channel monitor module and lists repair/replacement support.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 132419-01 can create an immediate monitoring gap on rotating machinery where the installed 2201 system depends on its four-channel measurement capability. This is particularly relevant for plants maintaining older vibration-monitoring installations, because a missing monitor can affect access to machinery condition data even when the mechanical equipment and other monitoring hardware remain operational. The available equipment records identify 132419-01 / 190662-28 as a four-channel Bently Nevada monitor associated with the 2201 monitoring system.

The TCO case favors an exact replacement when the existing 2201 installation remains serviceable. Retaining the installed rack, field wiring, transducers, alarm architecture, and maintenance documentation can avoid a larger controls or machinery-monitoring migration. That can materially reduce engineering and outage exposure. The procurement point is configuration accuracy: 132419-01 should be purchased against the complete installed identification, including 190662-28 where present, rather than treating every four-channel monitor as interchangeable. Current market references separately identify 132417-01 / 190662-26 and 132419-01 / 190662-28, confirming that these identifiers distinguish different monitor assemblies.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

132417-01 versus 132419-01: These part numbers are both associated with the Bently Nevada 2201 family but are paired with different associated identifiers — 190662-26 and 190662-28, respectively. Do not substitute one for the other without a documented engineering compatibility check.

Transducer and channel configuration: A four-channel monitor must be checked against the installed transducer type, channel assignments, alarm settings, and field wiring. A physically compatible module does not guarantee identical measurement configuration after installation.

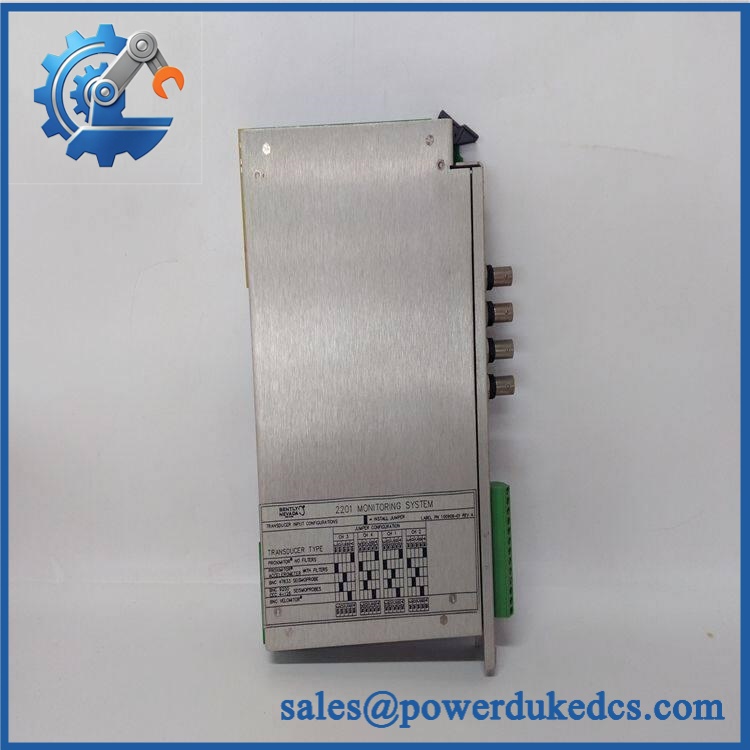

Bently Nevada 132419-01

Module 5: Quality Assurance & Testing SOP

A 132419-01 should be evaluated as a machinery-monitoring instrument, with channel-level functional testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and associated 190662-28 identification where applicable.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, connectors, terminal areas, housing, and mounting hardware.
• Check for corrosion, contamination, damaged pins, cracked components, or unauthorized repair.

2. Configuration verification

• Confirm 132419-01 identification.
• Verify the associated 190662-28 designation where applicable.
• Record hardware revision/date-code information.
• Photograph all identification markings for traceability.
• Compare the module against the customer’s installed configuration.

3. Power-on testing

• Install the monitor in a compatible 2201 test setup.
• Apply controlled system power.
• Perform power-on self-test (POST) where supported.
• Verify startup indications and diagnostic status.
• Confirm the monitoring system recognizes the expected four-channel hardware without internal faults.

4. Channel and alarm testing

• Apply calibrated simulated inputs to all required monitoring channels.
• Verify signal acquisition and channel response.
• Check channel scaling and measurement stability.
• Exercise alarm and trip outputs according to the installed configuration.
• Verify alarm reset and fault behavior.
• Perform I/O load testing where output contacts are part of the application.
• Run an extended operational test to identify intermittent channel faults.

5. Final QC

• Record test results for each active channel.
• Record serial number, revision, and test date.
• Generate a unit-specific Test Report.
• Confirm connector integrity and physical condition.
• Package using ESD protection and mechanical cushioning.
• Apply final QC identification before dispatch.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 132419-01 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual 132419-01 / 190662-28 unit, including condition and revision. Emergency shipment depends on QC completion, order/payment clearance, warehouse handling, and the courier cutoff. Current repair/supply references show that 132419-01 is actively supported in the aftermarket.

How do you guarantee the condition and authenticity of an obsolete or surplus 132419-01?

Require part-number and serial-number verification, PCB inspection, connector inspection, controlled power-up, four-channel signal testing, alarm verification, and a unit-specific Test Report. Actual photographs of the supplied monitor should be retained with the procurement record.

Are there firmware or configuration issues my engineers should check before issuing the PO?

Yes. Record the installed 2201 configuration, channel assignments, transducer types, measurement ranges, alarm setpoints, output logic, and any available hardware revision before replacement. The exact monitor identification should be matched rather than relying solely on the four-channel description.

Can I substitute Bently Nevada 132417-01 for 132419-01?

Do not approve that substitution without engineering verification. Current parts listings associate 132417-01 with 190662-26 and 132419-01 with 190662-28, indicating distinct configurations.

What warranty and return terms should procurement require?

Specify 132419-01 / 190662-28, serial number, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. For this monitor, acceptance should include successful startup and verification of all required monitoring channels and alarm outputs.
