Bently Nevada 133819-02 3500/61 | RTD TC Temperature I/O Module

• Brand: Bently Nevada
• Full Model Number: 133819-02
• Lifecycle Status: Legacy / Lifecycle verification recommended
• Core Function: Six-channel RTD/TC non-isolated I/O module with internal terminations for 3500/61 temperature monitoring
• Top 3 Technical Specs: 6 temperature channels | RTD/TC non-isolated inputs | Internal terminations
• Stock & Condition: Physical stock confirmation required | New Surplus / New Factory Stock / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed temperature I/O assembly can remove multiple RTD or thermocouple measurement points from a 3500 rack at once. Bently Nevada 133819-02 is specified as the 3500/61 RTD/TC Non-Isolated I/O Module with Internal Terminations. The 3500/61 temperature-monitoring platform provides six channels and accepts RTD, thermocouple, or a mixture of the two on the non-isolated input version. The module is installed behind the 3500/61 monitor and provides the field termination interface for the temperature sensors.

For an operating 3500 system, replacing the correct I/O module can avoid rewiring six temperature channels or changing the entire monitoring architecture. The 3500/61 monitor performs the temperature measurement processing and alarm comparison, while 133819-02 provides the corresponding field I/O path. Its internal-termination configuration is significant because the external-termination variant uses a different part number. (For older temperature-monitoring installations, verified inventory can shorten an outage when the failed I/O module must be replaced without redesigning field wiring.) The TCO calculation should include electrician hours, sensor rewiring, loop verification, alarm testing, commissioning, and lost production time.

Module 4: Compatibility & Replacement Matrix

Bently Nevada documentation identifies 133819-02 specifically as the 3500/61 RTD/TC non-isolated I/O module with internal terminations. The ordering information also distinguishes it from 133827-02, the corresponding external-termination variant.

Field Traps — Watch Out

• Internal versus external termination: Do not substitute 133827-02 for 133819-02 without changing the field-termination arrangement. The two variants use different wiring architectures.
• RTD/TC channel configuration: The non-isolated I/O version can accept RTDs, thermocouples, or a mixture. Record the type assigned to each of the six channels before replacement; channel configuration must be restored correctly after installation.

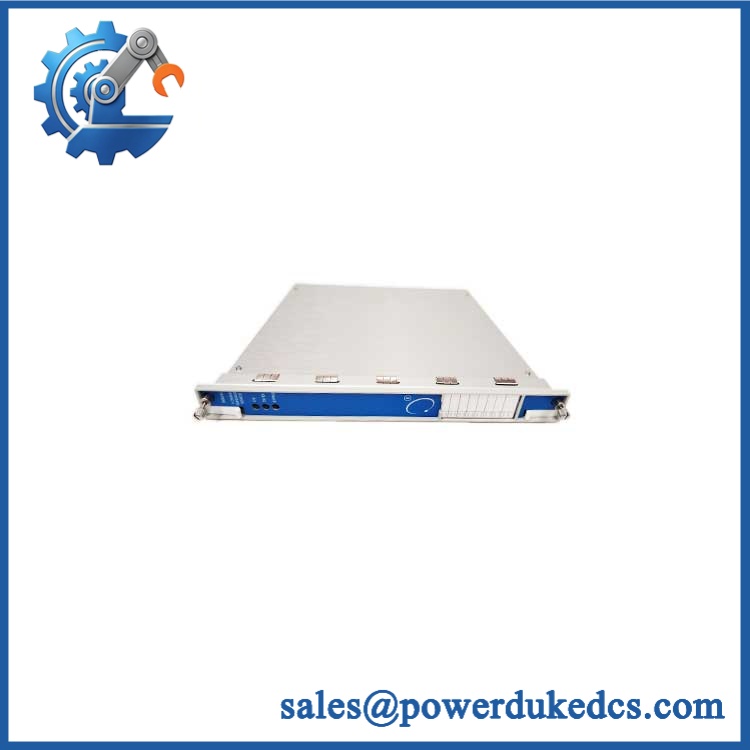

Bently Nevada 133819-02 3500/61

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 133819-02 should include:

• Identity verification: Confirm complete 133819-02 part number, 3500/61 association, serial information, labels, connectors, and internal-termination configuration.
• OEM anti-counterfeit visual inspection: Examine Bently Nevada markings, PCB identifiers, terminal construction, connectors, component placement, solder quality, and evidence of unauthorized repair.
• Mechanical inspection: Check housing, card edge, terminal blocks, connector pins, mounting hardware, and PCB surfaces for corrosion, cracks, contamination, or bent contacts.
• Power-on self-test (POST): Install the I/O module behind an approved 3500/61 monitor and verify normal startup behavior.
• Channel 1–6 verification: Exercise every temperature-input channel independently.
• RTD simulation test: Apply calibrated RTD signals to representative channels and verify measurement response.
• Thermocouple simulation test: Apply calibrated thermocouple signals to representative channels and verify correct response.
• Mixed-input test: Where the application requires both RTD and TC inputs, verify representative mixed-channel operation.
• Terminal continuity test: Check each applicable sensor circuit from the terminal interface through the I/O assembly.
• Alarm verification: Apply controlled temperature values around configured alarm thresholds and confirm proper alarm transitions at the 3500/61 monitor.
• Recorder-output verification: For a complete 3500/61 configuration, verify the corresponding recorder outputs where applicable; the 3500/61 provides recorder outputs for its six channels.
• I/O load testing: Exercise applicable input circuits under controlled conditions and monitor for unstable readings, abnormal resistance, or intermittent connections.
• Extended run test: Monitor all six channels for drift, signal dropout, noise, diagnostic faults, or unstable readings.
• Final QC: Record serial number, channel-by-channel results, sensor simulation values, termination configuration, condition grade, photographs, and packaging approval.

The module is an I/O interface rather than the temperature-processing CPU itself, so QC must verify actual sensor input performance and terminal integrity, not merely a successful rack power-up.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 133819-02 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 133819-02 part number before PO release. Current supplier records show both in-stock listings and longer quoted lead times, so emergency dispatch should be based on physically verified inventory rather than catalog status.

How do you verify the condition and authenticity of this legacy temperature I/O module?
Require complete part-number and serial verification, OEM marking inspection, PCB and terminal examination, power-up diagnostics, six-channel functional testing, RTD/TC simulation, alarm verification, and documented final QC. The condition should be explicitly classified as New Surplus, New Factory Stock, or Tested Refurbished.

Can I replace 133819-02 with another 3500/61 I/O module?
Not automatically. 133819-02 is the RTD/TC non-isolated internal-termination version. 133827-02 uses external terminations, while other variants provide isolated TC inputs or internal barriers. The installed field-wiring architecture must therefore match the replacement.

Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Firmware is not normally the primary issue for the I/O module. The critical checks are the 3500/61 monitor configuration, six channel assignments, RTD versus TC selection, internal termination arrangement, sensor wiring, alarm setpoints, and associated monitor revision.

What warranty and return terms should procurement require?
The quotation should specify the exact 133819-02 part number, condition grade, serial traceability, six-channel test scope, warranty period, DOA coverage, and return authorization procedure. For a temperature I/O assembly, the acceptance record should include actual RTD/TC simulation results and channel-by-channel verification.
