Bently Nevada 135473-01 | 3500/25 Keyphasor I/O Module

Description

• Brand: Bently Nevada
• Full Model Number: 135473-01
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: 3500/25 Keyphasor signal input/output with internal barriers and internal terminations
• Top 3 Technical Specs: 3500/25 system; internal barrier I/O; internal terminations
• Stock & Condition: New surplus / tested refurbished — verify exact 3500/25 configuration before PO

The 135473-01 is the Bently Nevada 3500/25 Keyphasor I/O Module with internal barriers and internal terminations. It is the rear I/O module associated with the enhanced Keyphasor architecture.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 135473-01 can interrupt the Keyphasor signal path used by the 3500 machinery-protection system. That matters because the Keyphasor reference establishes shaft rotational position and phase information used by the monitoring system. The 135473-01 is specifically the internal-barrier, internal-termination I/O configuration, so it is not simply a generic rear card that can be exchanged with every 3500/25 I/O variant.

For TCO, replacing the matching I/O module can preserve the existing 3500 rack, Keyphasor monitor electronics, field wiring, and protection configuration. The alternative—rewiring or replacing the monitoring architecture—can introduce engineering, testing, and outage costs that are disproportionate to the failed component. The critical procurement issue is configuration matching: Bently Nevada specifies separate internal-termination, external-termination, isolated, and internally barriered versions. The 135473-01 belongs specifically to the internal-barrier/internal-termination category.

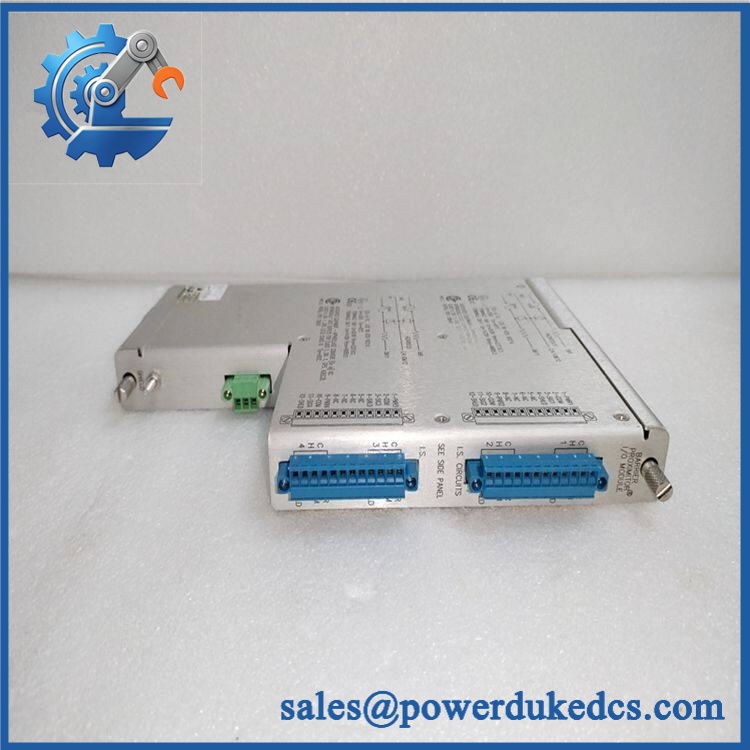

Bently Nevada 135473-01

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Internal barrier configuration: 135473-01 specifically includes internal barriers and internal terminations. Bently Nevada lists other 3500/25 I/O variants for external terminations and isolated magnetic-pickup applications. Do not substitute them without checking the actual field wiring and hazardous-area architecture.

Monitor card versus I/O module: The 3500/25 system consists of a monitor module and its associated I/O hardware. The 135473-01 is the I/O module, not the front Keyphasor monitor card. Purchasing the wrong component can leave the rack unable to accept the existing field wiring even when the front card is healthy.

Module 5: Quality Assurance & Testing SOP

For a Keyphasor I/O component, acceptance should focus on isolation integrity, signal routing, and correct rack operation.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and revision/date-code markings.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, connectors, terminal interfaces, barrier components, and mounting hardware.
• Check for corrosion, contamination, cracked components, damaged terminals, bent pins, or unauthorized rework.

2. Configuration verification

• Confirm 135473-01 identification.
• Verify 3500/25 Keyphasor I/O with internal barriers and internal terminations.
• Confirm terminal arrangement against the required installation.
• Record hardware revision where available.
• Photograph identification labels and terminal areas for traceability.

3. Electrical inspection

• Inspect barrier and termination circuits for visible damage.
• Perform continuity checks on applicable signal paths.
• Perform insulation-resistance testing using an appropriate controlled procedure.
• Verify grounding and isolation requirements relevant to the installation.
• Confirm connector retention and terminal integrity.

4. Power-on and signal testing

• Install the I/O module in a compatible 3500/25 test rack.
• Apply controlled rack power.
• Perform power-on self-test (POST) at the system level.
• Connect calibrated Keyphasor test signals.
• Verify correct signal reception and routing through the I/O module.
• Test applicable magnetic-pickup or proximity-probe signal paths according to the configured installation.
• Verify the host Keyphasor monitor recognizes the expected input.
• Perform extended signal testing for intermittent faults.

5. Final QC

• Record signal amplitude/frequency test results and applicable isolation measurements.
• Record serial number, revision, and test date.
• Generate a unit-specific Test Report.
• Package using ESD protection, cushioning, and moisture protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 135473-01 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual 135473-01 unit, including condition and revision. Current aftermarket listings identify the part as a 3500/25 Keyphasor I/O Module, although published inventory status varies by supplier. Emergency dispatch depends on completed QC, order/payment clearance, warehouse processing, and the courier cutoff.

How do you guarantee the condition and authenticity of an obsolete or surplus 135473-01?

Require complete part-number and revision verification, PCB inspection, barrier and terminal inspection, controlled rack installation, Keyphasor signal testing, and a unit-specific Test Report. Actual photographs of the supplied I/O module should be retained with the procurement record.

Are there compatibility issues my engineers should check before issuing the PO?

Yes. Confirm that the existing installation requires internal barriers and internal terminations. The 3500/25 family also includes external-termination and isolated I/O configurations, and those should not be assumed equivalent.

Can I substitute another 3500/25 I/O module?

Not automatically. Bently Nevada lists 125800-01 for internal terminations, 126648-01 for external terminations, 125800-02 for isolated internal-termination applications, 126648-02 for isolated external-termination applications, and 135473-01 for internal barriers with internal terminations. The field installation determines the appropriate configuration.

What warranty and return terms should procurement require?

Specify 135473-01, serial number, tested condition, warranty duration, DOA criteria, acceptance period, and return procedure in the PO. For this module, functional acceptance should include successful 3500/25 startup and correct Keyphasor signal transmission through the specified internal-barrier/termination configuration.
