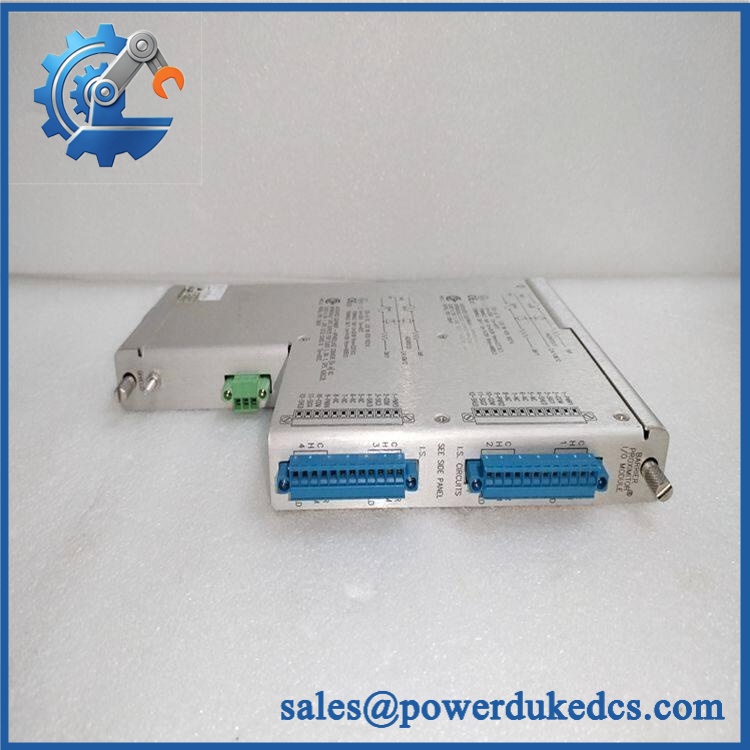

Bently Nevada 135489-01 | 3500/42M Internal Barrier I/O Module

Description

• Brand: Bently Nevada
• Full Model Number: 135489-01
• Lifecycle Status: Legacy / Lifecycle-managed
• Core Function: 3500/42, 3500/70, and 3500/72 I/O module with internal barriers and internal terminations
• Top 3 Technical Specs: 4 Prox/Accel channels; internal intrinsic-safety barriers; internal terminations
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Emergency dispatch subject to order cutoff

The Bently Nevada 135489-01 is specified as an I/O module with internal barriers and internal terminations for four Prox/Accel channels. Bently Nevada documentation associates it with the 3500/42, 3500/70, and 3500/72 monitor families.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 135489-01 can interrupt four vibration-monitoring channels while leaving the rest of a 3500 rack operational. That makes exact replacement important: this is not simply a generic I/O card, but a barrier-equipped interface designed for Prox/Accel transducers with internal terminations. The published 3500 internal-barrier documentation explicitly identifies 135489-01 for four Prox/Accel channels and requires selection of the appropriate I/O type for the associated monitor module.

The TCO advantage comes from retaining the installed machinery-protection architecture. A matched I/O module can preserve existing field termination, intrinsic-safety interface design, and monitor-channel allocation without forcing a larger rack redesign or migration project. That is especially valuable where the cost of an extended protection-system outage exceeds the spare-part cost by a wide margin. One procurement caution remains critical: 135489-01 is not interchangeable with 135489-02 or 135489-03, because those variants support different transducer channel combinations.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• Transducer mismatch: 135489-01 is specifically the 4 × Prox/Accel version. Do not substitute it for 135489-02, which supports a different two-Prox/Accel + two-Velomitor combination, or 135489-03, which supports four Velomitor channels.
• Hazardous-area configuration: Internal barriers form part of the signal-interface design. Confirm the site’s hazardous-area approval requirements and associated monitor configuration before PO release. Bently Nevada documentation states that the appropriate I/O module type must be specified for each monitor module and that an IS earthing module is required in racks containing internal barriers.

Bently Nevada 135489-01

Module 5: Quality Assurance & Testing SOP

This module requires more than a visual inspection because the barrier and signal-interface functions directly affect machinery-protection circuits.

• Incoming traceability: Record Bently Nevada markings, complete 135489-01 part number, revision, serial information, and available date-code data.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, terminal blocks, connectors, component population, solder quality, barrier circuitry, and evidence of unauthorized rework.
• Mechanical inspection: Verify housing, mounting features, terminal interfaces, connector alignment, and PCB condition.
• Power-on self-test (POST): Install the module in an approved 3500 test rack and verify normal startup behavior and applicable status indications.
• Supply verification: Confirm correct rack power behavior and check for excessive current draw or abnormal heating.
• Channel testing: Test all four Prox/Accel channels with appropriate calibrated vibration/proximity signal simulation equipment.
• Signal-conditioning test: Verify correct response through the internal barrier and termination circuitry.
• Input impedance / continuity checks: Confirm expected electrical continuity and absence of unintended open or short conditions.
• Monitor integration test: Verify correct interaction with the associated 3500 monitor module and rack configuration.
• Diagnostic verification: Confirm expected channel status and absence of persistent faults.
• Extended operation: Run representative signals continuously while monitoring temperature, stability, and intermittent faults.
• Final QC release: Record part number, revision, channel test results, barrier verification, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 135489-01 genuinely in stock, and what is the cutoff for emergency shipping?

Public supplier data is mixed. One listing currently shows the part as out of stock with an estimated 9–11 week lead time, while another independent listing reports in stock. For an emergency requirement, obtain physical stock confirmation, current photographs, exact part-number verification, and the warehouse shipping cutoff before releasing the PO.

2. How do you verify the condition and authenticity of this surplus I/O module?

Verify the complete 135489-01 identifier and inspect the PCB, labels, connectors, internal-barrier circuitry, and termination hardware. Functional testing should then exercise all four Prox/Accel channels using appropriate test equipment. Keep photographs, serial information, and test measurements with the MRO receiving record.

3. Are there any firmware compatibility issues engineers should check before issuing the PO?

The primary concern is not a firmware flash. Engineering should verify the associated monitor module, channel type, rack configuration, transducer type, and hazardous-area approval arrangement. The key distinction is the four-channel Prox/Accel configuration assigned to 135489-01.

4. Can the 135489-01 replace the existing I/O module without hardware modification?

For an exact 135489-01 replacement in a compatible 3500 configuration, additional cabinet modification is normally not expected. Before energizing, confirm the installed monitor type, field transducers, terminal arrangement, barrier requirements, and rack configuration.
