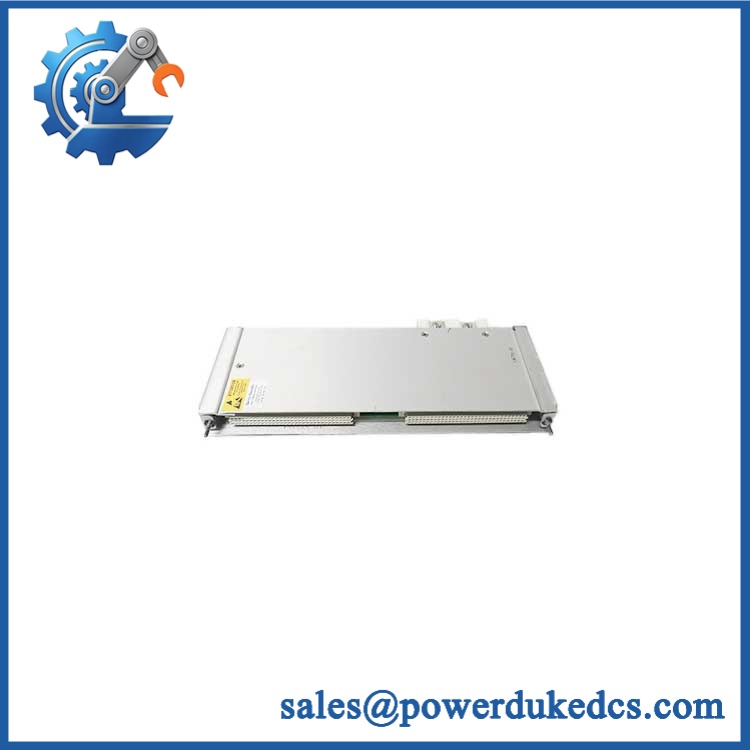

Bently Nevada 136719-01 | 3500/04 Earthing I/O Module

Description

• Brand: Bently Nevada
• Full Model Number: 136719-01
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: 3500/04 intrinsic-safety earthing interface for racks using internal barriers
• Top 3 Technical Specs: 3500/04 system; Earthing I/O Module; required in racks containing internal barriers
• Stock & Condition: New surplus / tested inventory — verify exact 3500/04 approval configuration before PO

Baker Hughes identifies 136719-01 as the 3500/04 Earthing I/O Module and specifies that an IS Earthing Module must be installed in each 3500 rack containing internal barriers.

Module 3: Obsolescence & Supply Chain Deep Dive

A missing or failed 136719-01 is not a routine blank-panel issue when a 3500 rack uses internal barriers. The module provides the required IS earth connection for the barrier architecture, so its availability can directly affect the ability to maintain hazardous-area monitoring circuits within the existing rack. Baker Hughes’ current 3500/04 documentation explicitly lists 136719-01 as the Earthing I/O Module and states that an IS Earthing Module is required in each rack containing internal barriers.

From a TCO standpoint, restoring the existing earthing architecture is generally far less disruptive than redesigning the rack around external barriers or replacing the monitoring system. The existing barrier I/O modules, rack, field wiring, and protection configuration can remain in service when the correct earthing module is installed. There is one critical procurement distinction: 136719-01 is the earthing I/O hardware, not the individual barrier I/O module used by each monitor. The surrounding rack must also contain the correct internally barriered I/O modules for the intended monitors. Baker Hughes separately lists 135473-01, 135489-series modules, 136703-01, 136711-series modules, and others as barrier I/O spares.

Bently Nevada 136719-01

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Internal-barrier dependency: Baker Hughes explicitly states that the IS Earthing Module must be installed in each rack containing internal barriers. Do not treat 136719-01 as a general-purpose 3500 grounding accessory or omit it from an internally barriered rack.

Approval-code mismatch: The 3500/04 ordering structure includes agency-approval selections, including North America HazLoc and multi-approval configurations. The replacement must match the installed hazardous-area certification requirements; do not substitute solely because the base part number looks similar.

Module 5: Quality Assurance & Testing SOP

Because 136719-01 is part of an intrinsically safe barrier architecture, QA should focus on identification, mechanical integrity, grounding continuity, and correct rack-level installation.

1. Incoming inspection

• Record manufacturer, complete part number, serial/date code, and approval markings.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, connectors, terminal interfaces, mounting hardware, and front-panel hardware.
• Check for corrosion, contamination, cracks, damaged contacts, or unauthorized repair.

2. Configuration verification

• Confirm 136719-01 identification.
• Verify 3500/04 Earthing I/O Module configuration.
• Record applicable agency approval markings.
• Confirm the module is intended for a rack containing internal barriers.
• Photograph nameplate and approval markings for traceability.

3. Electrical inspection

• Inspect earthing terminals and backplane contacts.
• Perform continuity testing across the applicable earth path.
• Verify protective-earth bonding according to the approved test procedure.
• Perform insulation-resistance testing on applicable non-earth circuits using controlled methods.
• Confirm connector and terminal retention.

4. Rack-level testing

• Install the module in a compatible 3500/04 test rack.
• Verify correct mechanical seating and retention.
• Perform controlled rack power-up.
• Check rack diagnostic status and confirm no earthing-related alarms.
• Verify the internal-barrier architecture recognizes the correct earthing arrangement.
• Where applicable, perform a controlled earth-continuity verification with the associated barrier I/O installed.

5. Final QC

• Record continuity measurements, approval markings, serial number, and test date.
• Generate a unit-specific Test Report.
• Confirm the front-panel and mounting condition.
• Package with appropriate ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 136719-01 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual unit, including part number, approval markings, condition, and QC status. Emergency shipment depends on inspection completion, order/payment clearance, warehouse processing, and the courier cutoff. Current aftermarket listings identify 136719-01 as a 3500/04 Earthing I/O Module.

How do you guarantee the condition and authenticity of an obsolete or surplus 136719-01?

Require complete part-number and approval-marking verification, physical inspection, earth-continuity testing, controlled rack installation, and a unit-specific Test Report. Actual photographs of the identification and grounding interfaces should be retained with the procurement record.

Are there firmware compatibility issues my engineers should check before issuing the PO?

No firmware matching is normally required for the earthing module itself. The engineering checks are hardware- and safety-configuration related: confirm the rack contains internal barriers, verify the correct 3500/04 configuration, and ensure the replacement meets the required agency approval. Baker Hughes’ documentation defines 136719-01 as the Earthing I/O Module required for racks containing internal barriers.

Can I operate an internally barriered 3500 rack without 136719-01?

No. Baker Hughes specifically states that an IS Earthing Module must be installed in each rack containing internal barriers. The 136719-01 is listed as the applicable Earthing I/O Module spare.

What warranty and return terms should procurement require?

Specify 136719-01, serial number, approval configuration, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. For this component, acceptance should include successful rack installation and verified earth continuity under the approved test procedure.
