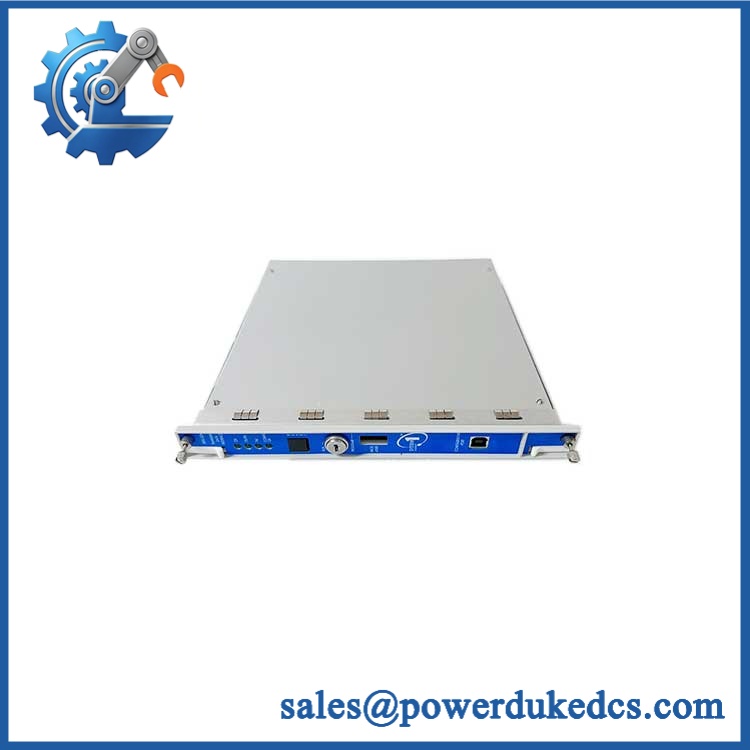

Bently Nevada 138607-01 3500/22M | Transient Data Interface

• Brand: Bently Nevada
• Full Model Number: 138607-01
• Lifecycle Status: Legacy / Replaced
• Core Function: 3500/22M Transient Data Interface (TDI)
• Top 3 Technical Specs: Slot 1 rack interface; 10/100 Ethernet; front USB configuration port
• Stock & Condition: New Surplus / Tested Refurbished / Fast Dispatch subject to physical stock confirmation

Baker Hughes identifies the 3500/22M TDI as the interface between a 3500 monitoring rack and compatible configuration and condition-monitoring software. It occupies Slot 1 beside the power supplies and handles steady-state and transient data collection.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 138607-01 can create a disproportionate procurement problem because this module sits at the rack-interface level rather than serving as an ordinary signal card. The 3500/22M is required in the 3500 architecture and provides the communication path used for rack configuration and data transfer to host software. Baker Hughes documentation states that every 3500 rack requires either a TDI or RIM, with the TDI installed in Slot 1 adjacent to the power supplies. This makes a verified replacement particularly important during an outage: the plant may have healthy monitor cards while still losing access to configuration, data collection, or System 1 connectivity.

From a TCO standpoint, replacing the failed interface module is generally much less disruptive than redesigning an entire 3500 rack. The 3500/22M combines rack-interface and communication-processor functions and supports Ethernet communication with host software, while the front USB port provides local configuration access. A replacement can therefore preserve the installed rack architecture, monitor modules, field wiring, and engineering configuration where the exact hardware and software revisions are compatible. Some current industry listings identify 138607-01 as a replaced part number, with newer replacement assemblies offered for the 3500/22 family; this should be verified against the installed rack revision before the PO is released.

Module 4: Compatibility & Replacement Matrix

Baker Hughes specifies that the TDI provides the communication interface to System 1 and 3500 System Configuration software, while continuously collecting steady-state and transient dynamic data from compatible M-series monitors.

Bently Nevada 138607-01 3500/22M

⚠️ Field Traps — Watch Out

Firmware and configuration revision: Do not assume that every 3500/22 or 3500/22M unit is interchangeable solely because the front-panel designation looks similar. Record the existing module’s hardware and firmware revision, rack configuration, and installed monitor-module revisions before substitution. The 3500/22M has a defined software and module compatibility structure.

RIM versus TDI confusion: A 3500/20 RIM is not automatically an equivalent substitute for the 3500/22M when transient-data collection and the required host communication functions are part of the application. The manufacturer describes the TDI as combining RIM functions with communication-processor and transient-data capabilities.

Module 5: Quality Assurance & Testing SOP

For a legacy 138607-01, inspection should establish both hardware identity and functional behavior before shipment.

1. OEM anti-counterfeit visual inspection
Verify the Bently Nevada identification label, exact 138607-01 part number, faceplate markings, revision information, connector arrangement, key switch, LEDs, and overall housing construction. Photograph all identifying marks for the procurement record.

2. Mechanical inspection
Check the card edge connector, mounting hardware, faceplate, key switch, USB connector, and enclosure for corrosion, impact damage, cracked plastic, bent hardware, or unauthorized repair.

3. Power-on self-test (POST)
Install the TDI in an appropriate 3500 test rack and apply controlled rack power. Verify normal startup behavior and inspect OK, TX/RX, TM, CONFIG OK, RUN, and related status indicators against the applicable operating documentation. Baker Hughes documentation shows these front-panel status functions on the 3500/22M.

4. Rack communication test
Connect the module to the test rack and confirm that the TDI establishes normal rack communication. Validate Ethernet connectivity and verify that the configuration interface is accessible through the supported service connection.

5. USB configuration-port test
Test the front USB service/configuration interface. Confirm stable device communication during configuration access and verify that the connection does not drop during a controlled read/write operation.

6. Data acquisition test
Connect compatible M-series monitor channels and confirm receipt of representative steady-state data. Where the test setup permits, generate transient waveform data and verify that the TDI captures and transfers the expected information. The TDI is specifically designed for both steady-state and transient dynamic data collection.

7. Host software communication test
Verify communication with the applicable 3500 configuration environment and, where available, System 1 integration. Check rack identification, module visibility, data transfer, alarm/event information, and configuration retention.

8. Extended soak and final QC
Operate the module continuously under representative load, monitor temperature and communication stability, then record the part number, revision, serial information where available, test results, photographs, and final QC disposition.

Module 6: Procurement & Lifecycle FAQ

Is 138607-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory must be confirmed against the exact 138607-01 part number and revision before PO acceptance. For emergency orders, the quotation should state the tested condition, available quantity, same-day dispatch cutoff, carrier service, and destination. Legacy inventory can change rapidly.

How do you guarantee the condition and authenticity of an obsolete or surplus 138607-01?
Require exact part-number verification, OEM anti-counterfeit visual inspection, connector and housing inspection, power-on testing, rack communication testing, Ethernet verification, USB-port testing, and documented QC results. For a high-criticality machinery system, serial-label photographs and a functional test report should accompany the commercial documentation.

Are there firmware or configuration compatibility issues engineers should check before issuing the PO?
Yes. Confirm the installed 3500 rack configuration, TDI revision, monitor-module revisions, configuration software requirements, and System 1 interface before substitution. The TDI is an active participant in rack configuration and host communication, so compatibility cannot be judged from the part number alone.

Is 138607-01 still the preferred replacement, or has the design moved to another part number?
Current industry listings identify 138607-01 as a replaced 3500/22M part, with 288055-01 cited as a newer replacement offering. Treat that as a migration decision rather than an automatic substitution; engineering should confirm the installed rack, software, firmware, and certification requirements before changing the BOM.

What warranty and return terms should procurement require?
For surplus or refurbished inventory, obtain written coverage for the exact unit supplied, including warranty duration, DOA provisions, test documentation, return authorization, and inspection requirements. For a critical machinery application, the PO should also define the remedy for a failed unit discovered during incoming inspection or commissioning.
