Bently Nevada 145988-02 3500/65 | Temperature Monitor Module

Description

• Brand: Bently Nevada
• Full Model Number: 145988-02
• Lifecycle Status: Active / legacy 3500-series spare; verify current OEM lifecycle status against installed system
• Core Function: 16-channel temperature monitoring for the Bently Nevada 3500 Machinery Protection System
• Top 3 Technical Specs: 16 temperature channels | RTD & isolated-tip thermocouple inputs | User-configurable Alert/Danger alarm setpoints
• Stock & Condition: New Surplus / Original OEM subject to physical inventory confirmation | Tested option available | Emergency dispatch subject to order cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 145988-02 can create a very specific procurement problem: the 3500 rack may remain serviceable while the temperature-monitoring function is lost. The 3500/65 accepts up to 16 RTD or isolated-tip thermocouple inputs and evaluates those signals against programmable alarm thresholds. For plants maintaining older 3500 installations, locating the exact monitor revision is usually preferable to redesigning the rack around an unrelated monitoring architecture. —For emergency MRO requirements, actual warehouse availability matters more than a nominal supplier lead time.

From a TCO perspective, replacing the failed monitor preserves the installed rack, field termination arrangement, configuration work, and commissioning effort. The 3500/65 is a rack plug-in monitor, while compatible I/O modules and termination arrangements are specified separately; the published documentation identifies 145988-02 as the monitor spare and lists 172103-01 and 172109-01 as associated I/O options. That can make a verified replacement materially less disruptive than replacing an entire machinery-protection installation. Before release of the PO, engineering should confirm the exact 3500/65 ordering configuration, termination type, sensor mix, and installed firmware/configuration.

Module 4: Compatibility & Replacement Matrix (Crucial for Buyers)

Field Traps — Watch Out

Termination mismatch: The 3500/65 documentation distinguishes internal-termination and external-termination I/O configurations. External-termination installations require the appropriate termination block and cable arrangement, while internal and external termination components are not interchangeable.

Sensor/configuration mismatch: The monitor supports RTDs and isolated-tip thermocouples, including multiple sensor arrangements. Preserve the existing channel assignment, sensor type, alarm limits, and configuration before removing the failed unit.

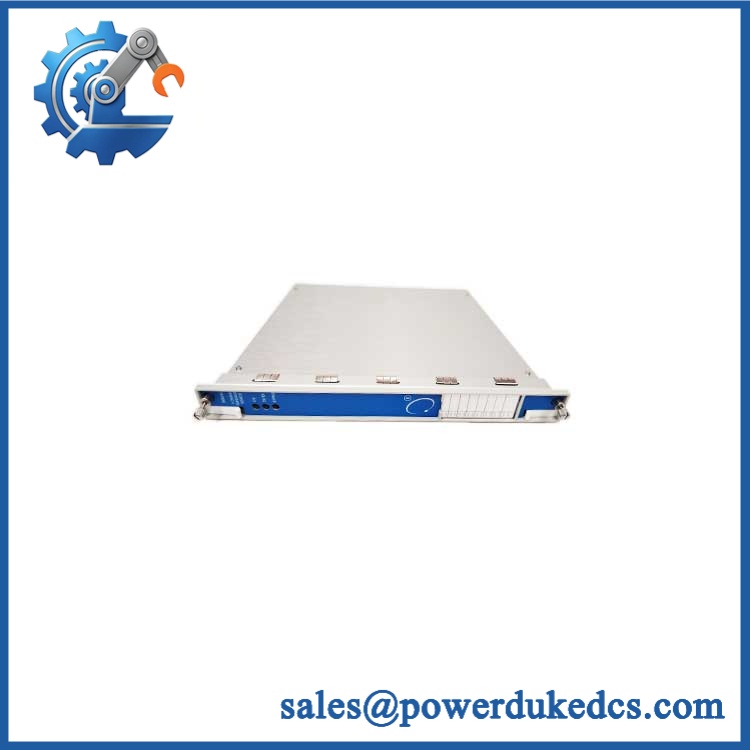

Bently Nevada 145988-02 3500/65

Module 5: Quality Assurance & Testing SOP

Each available 145988-02 should pass a documented receiving and pre-shipment inspection rather than relying on external appearance alone.

• OEM anti-counterfeit visual inspection: Verify manufacturer markings, part-number labeling, board condition, connectors, fasteners, and enclosure against known Bently Nevada construction.
• Part-number verification: Confirm 145988-02 and record visible serial/date identification where present.
• Physical inspection: Check PCB surfaces, connector pins, terminal interfaces, housing, labels, and evidence of corrosion, impact, contamination, or unauthorized repair.
• Power-on self-test (POST): Install the monitor in an appropriate 3500 test environment and verify expected OK / TX-RX / Bypass indicator behavior.
• Rack communication test: Confirm that the monitor is recognized by the 3500 rack and communicates correctly with the rack interface.
• I/O functional test: Apply controlled RTD and/or isolated-tip thermocouple input signals across representative channels; verify displayed temperature response.
• Alarm verification: Exercise programmable Alert and Danger thresholds and confirm expected alarm behavior.
• Load testing: Run representative channels under controlled conditions and monitor operating stability before release.
• Configuration record: Capture configuration parameters and relevant firmware/software information where accessible.
• Final QC: Record test results, inspector approval, packaging condition, and shipment identification.

The published 3500/65 documentation confirms the monitor’s 16-channel architecture, RTD/isolated-tip TC input capability, programmable alarm functions, and associated I/O hardware.

Module 6: Procurement & Lifecycle FAQ

Q1. Is Bently Nevada 145988-02 genuinely in stock, and what is the cutoff for emergency shipping?
A1. Physical stock should be confirmed against the specific order quantity and condition before PO release. Emergency dispatch depends on payment clearance, order receipt time, QC completion, and carrier pickup. A published supplier listing currently identifies 145988-02 as a 3500/65 monitor and shows a stated 1–10 working-day lead time, illustrating why buyers should request a warehouse confirmation rather than rely on catalog availability alone.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 145988-02?
A2. Require part-number verification, serial/label inspection where available, connector and PCB inspection, power-up testing, rack communication testing, and documented functional results. For new-surplus material, request photographs of the actual unit and packaging before shipment. Do not treat a generic product photograph as proof of stock.

Q3. Are there firmware or configuration compatibility issues engineers should check before issuing the PO?
A3. Yes. Confirm the installed 3500 rack configuration, monitor configuration, sensor types, alarm settings, and termination architecture. The 3500/65 requires configuration through the 3500 Rack Configuration Software, and the I/O architecture must match the installed termination arrangement.

Q4. Is 145988-02 a direct replacement for the installed 3500/65 monitor?
A4. For a failed unit carrying the same 145988-02 part number, it is normally a direct physical replacement. Engineering should still verify the rack slot, configuration, I/O termination arrangement, sensor assignments, and alarm parameters before returning the machinery-protection channel to service.

Q5. What warranty and return protection should procurement require?
A5. Require the quotation to state the exact warranty duration, coverage for DOA or functional failure, return authorization procedure, inspection period, and responsibility for return freight. One current supplier listing advertises a 12-month warranty, but warranty terms are supplier-specific and should be written into the purchase documentation rather than assumed.
