Bently Nevada 146031-02 3500/22M | Fiber Optic I/O Module

• Brand: Bently Nevada
• Full Model Number: 146031-02
• Lifecycle Status: Active / Current Spare
• Core Function: 3500/22M Transient Data Interface fiber-optic Ethernet I/O
• Top 3 Technical Specs: 100Base-FX; fiber-optic Ethernet; 3500/22M TDI I/O
• Stock & Condition: New surplus / tested refurbished — verify fiber type, connector arrangement, and TDI configuration before PO

Bently Nevada’s current datasheet lists 146031-02 as the fiber-optic I/O option, separate from the 146031-01 copper 10Base-T/100Base-TX module.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 146031-02 can break the fiber-optic data path between a 3500/22M TDI and the plant’s machinery-data network, even though the monitoring modules and protection functions remain operational. This part is the network I/O module, not the complete TDI. The 3500/22M architecture supports both copper Ethernet and 100Base-FX fiber interfaces, so the correct I/O variant must be maintained when the installed network depends on fiber.

For TCO, replacing only the failed 146031-02 preserves the existing 3500/22M TDI, rack hardware, fiber infrastructure, configuration, and System 1/data-acquisition architecture. That is normally much cheaper than redesigning the monitoring communications path. The procurement issue is physical and architectural matching: 146031-02 is specifically the 100Base-FX fiber option, while 146031-01 is the copper Ethernet version. A copper substitution would require a network-design review and may require new cabling or active network equipment.

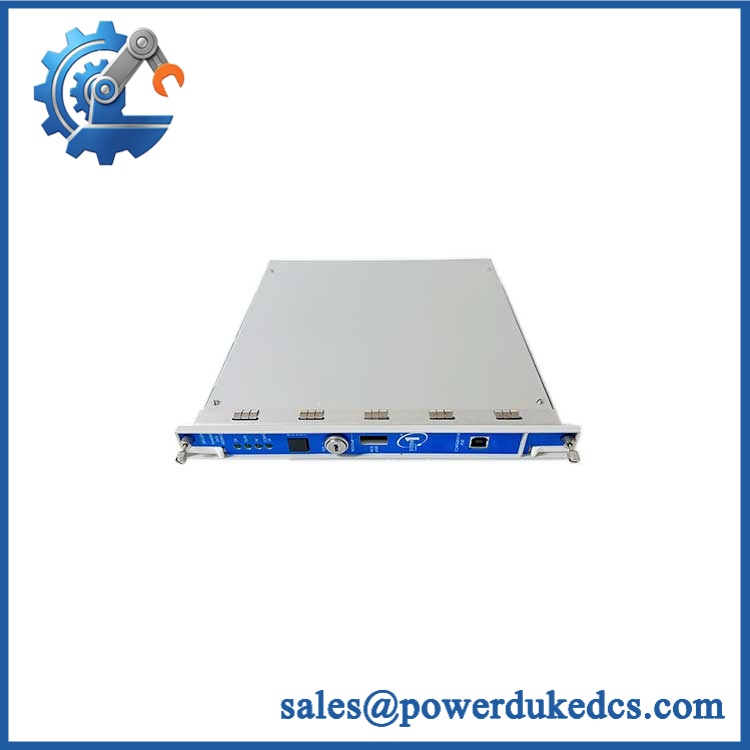

Bently Nevada 146031-02 3500/22M

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Fiber versus copper: 146031-02 is the 100Base-FX fiber-optic I/O module. 146031-01 is the 10Base-T/100Base-TX copper option. They are different physical network interfaces and should not be treated as interchangeable.

Fiber link compatibility: Verify the installed fiber type, connector style, transmission distance, patch-panel arrangement, and network equipment before approving the replacement. Bently Nevada’s documentation identifies 100Base-FX as the fiber interface and provides separate fiber-cable ordering specifications.

Module 5: Quality Assurance & Testing SOP

The 146031-02 should undergo optical-interface, electrical, and 3500/22M communication testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and revision/date code.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, fiber-optic interface, connectors, mounting hardware, and housing.
• Check for corrosion, contamination, cracked components, damaged optical ports, or unauthorized repair.

2. Configuration verification

• Confirm 146031-02 identification.
• Verify 100Base-FX fiber-optic I/O configuration.
• Record hardware revision markings.
• Confirm intended use with the 3500/22M TDI.
• Photograph the part number, revision, and optical interface for traceability.

3. Electrical inspection

• Inspect applicable power and signal contacts.
• Perform continuity testing on applicable electrical paths.
• Verify grounding continuity where required.
• Inspect the fiber-optic transceiver area for contamination or physical damage.
• Check connector retention and mechanical integrity.

4. Power-on and network testing

• Install the module in a compatible 3500/22M test rack.
• Apply controlled rack power.
• Perform power-on self-test (POST).
• Check applicable TDI status LEDs and diagnostic indications.
• Confirm successful I/O-module initialization.
• Connect a compatible 100Base-FX fiber link.
• Verify link establishment and data transmission.
• Confirm stable communication with the TDI host/test environment.
• Test data transfer from representative 3500 monitor channels.
• Perform I/O load testing on applicable communication/control circuits.
• Run an extended network test to identify intermittent optical or communication faults.

5. Final QC

• Record link status, data-transfer results, hardware revision, serial number, and test date.
• Document the fiber-interface configuration.
• Generate a unit-specific Test Report.
• Protect optical connectors with clean protective caps.
• Package with ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 146031-02 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual serial-numbered unit, including condition, revision, and QC status. The current Bently Nevada datasheet continues to list 146031-02 as the 100Base-FX I/O spare, while emergency dispatch depends on QC completion, payment clearance, warehouse processing, and the courier cutoff.

How do you guarantee the condition and authenticity of surplus 146031-02 units?

Require complete part-number and serial-number verification, PCB inspection, optical-interface inspection, controlled 3500/22M power-up, fiber-link testing, data-transfer verification, and a unit-specific Test Report. Actual photographs of the supplied module should be retained with the procurement record.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. The 146031-02 is an I/O component within the 3500/22M TDI architecture, so the installed TDI firmware, rack configuration, network settings, and host software should be documented before replacement. The underlying fiber interface is hardware-specific, so the communication architecture must also remain consistent.

Can I substitute 146031-01 for 146031-02?

Not as a routine drop-in substitution. 146031-01 is the 10Base-T/100Base-TX copper Ethernet I/O module, while 146031-02 is the 100Base-FX fiber-optic I/O module. Changing between them can require different cabling, network hardware, and engineering configuration.

What warranty and return terms should procurement require?

Specify 146031-02, serial number, hardware revision, 100Base-FX configuration, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include successful 3500/22M initialization, fiber-link establishment, stable data transmission, and verification of representative machinery data transfer.
