Bently Nevada 1900/65A 167699-02 | Operator Interface Display

• Brand: Bently Nevada
• Full Model Number: 1900/65A 167699-02
• Lifecycle Status: Discontinued / Legacy
• Core Function: Operator interface and display module for the 1900/65A General Purpose Equipment Monitor
• Top 3 Technical Specs: Backlit LCD display; 1900/65A dedicated interface; Up to 75 m remote mounting
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed display on a Bently Nevada 1900/65A does not necessarily justify replacing the complete monitoring system. The 167699-02 is specifically identified as the 1900/65A Display Module, providing the local operator interface for the monitor. Published 1900/65A documentation lists it as an accessory separate from the main monitor module. The interface provides local access to operating information, while its remote-mounting arrangement allows the display to be positioned away from the monitor cabinet.

From a TCO standpoint, replacing only the failed 167699-02 can avoid the engineering and commissioning cost associated with replacing the complete 1900/65A monitoring package. The existing main monitor, field wiring, configuration, sensor inputs, and protection settings can remain in place when the display is correctly matched. The display is also specified for remote installation at distances up to 75 m (250 ft) from the monitor module. That makes the exact interface and cable arrangement important during replacement—particularly where the display is installed on a cabinet door or in a remote operator position.

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: For a tested replacement already available on-site, plan approximately 1–3 hours for display removal, installation, cable verification, startup testing, and operator acceptance. A newly sourced unit may require 1–5 business days for inspection and expedited transportation, depending on location and carrier cutoff. These are planning estimates.

Field Traps — Watch Out

• Display vs. main monitor: 167699-02 is the display module, not the complete 1900/65A monitor. Published documentation lists it separately from the main monitor assembly.
• Cable length: The display can be mounted up to 75 m (250 ft) from the monitor. Cable type, connector condition, and installed distance should therefore be checked before replacement.
• Configuration retention: The display provides operator access to the monitor, but replacing the display does not necessarily replace the monitor’s configuration. Preserve the existing monitor settings before performing maintenance.
• Mounting arrangement: Confirm whether the unit is directly mounted or remotely installed. Physical mounting requirements should be matched before the PO is released.

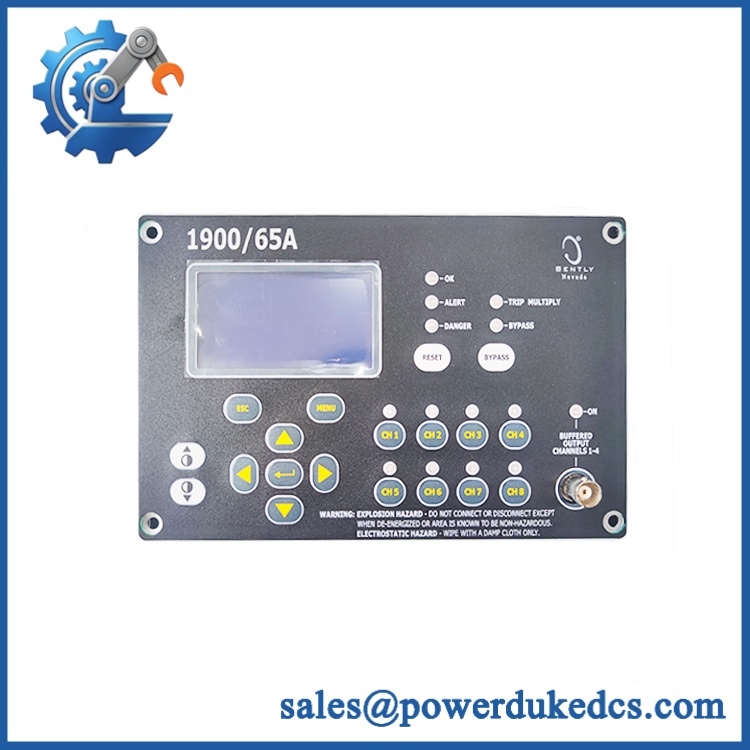

Bently Nevada 1900/65A 167699-02

Module 5: Quality Assurance & Testing SOP

The 167699-02 is an operator-interface assembly, so QA should verify the display, controls, communications, and physical interfaces rather than applying an electronic I/O-card test protocol.

• Part-number verification: Confirm 167699-02, Bently Nevada identification, revision information, and serial/traceability data.
• OEM anti-counterfeit visual inspection: Examine manufacturer markings, bezel construction, display assembly, connectors, keypad/interface components, and evidence of unauthorized repair.
• Physical condition inspection: Check the LCD surface, bezel, housing, mounting points, connector shell, and cable interface for cracks, distortion, corrosion, or impact damage.
• Connector inspection: Examine the display-to-monitor connector for bent contacts, oxidation, contamination, and damaged locking hardware.
• Power/interface verification: Connect the display to a compatible 1900/65A monitor using the correct interface cable and verify normal startup.
• Power-on self-test (POST): Confirm the display initializes correctly and that the expected operator interface appears without startup faults.
• LCD testing: Verify backlight operation, contrast, character visibility, uniform illumination, and absence of significant display defects.
• Keypad/control testing: Exercise all available operator controls and confirm expected response through the monitor interface.
• Communication test: Verify reliable data exchange between the display and 1900/65A monitor across the installed cable.
• Remote-distance test: Where practical, test the display using a representative installed cable length, particularly for remote installations approaching the specified 75 m limit.
• Alarm/status verification: Confirm that representative monitor states are displayed correctly, including normal operation and simulated alarm conditions.
• Configuration-access test: Verify that authorized operator functions and display navigation operate correctly.
• Extended observation: Operate the display continuously to identify intermittent communication, backlight, keypad, or LCD faults.
• Final QC release: Record part number, revision, serial number, display-test results, photographs, condition grade, cable/interface status, test date, and QC approval.

Published specifications for the display assembly give approximate dimensions of 196.9 × 149.4 × 32.8 mm and a weight around 0.40 kg. The display is intended to provide the 1900/65A operator interface and can be located remotely from the monitor module.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 1900/65A 167699-02 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 167699-02 part number before the PO is accepted. Because the part is listed as discontinued by some current inventory sources, physical availability should take precedence over database status. Emergency dispatch depends on QA completion, warehouse location, carrier pickup, and destination.

Q2. How do you guarantee the condition and authenticity of an obsolete 167699-02?
Require exact part-number verification, OEM visual inspection, LCD testing, keypad testing, connector inspection, monitor-interface testing, and documented QC results. Photographs of the actual display and identification markings should remain with the procurement record.

Q3. Is 167699-02 the complete Bently Nevada 1900/65A monitor?
No. Bently Nevada documentation identifies 167699-02 as the 1900/65A Display Module. The main monitor module is a separate component. The display should therefore be quoted and purchased as the operator-interface component unless the buyer specifically requires the complete monitor assembly.

Q4. Can the 167699-02 be installed remotely from the 1900/65A monitor?
Yes. Published specifications indicate a maximum remote mounting distance of approximately 75 m (250 ft). The actual cable type, connectors, and installation arrangement should be verified before extending or replacing the existing display connection.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, LCD/backlight coverage, keypad and communication-function coverage, return authorization, inspection period, and serial-number traceability. For refurbished units, require the actual display and interface test record and define whether failures discovered during commissioning are covered.
