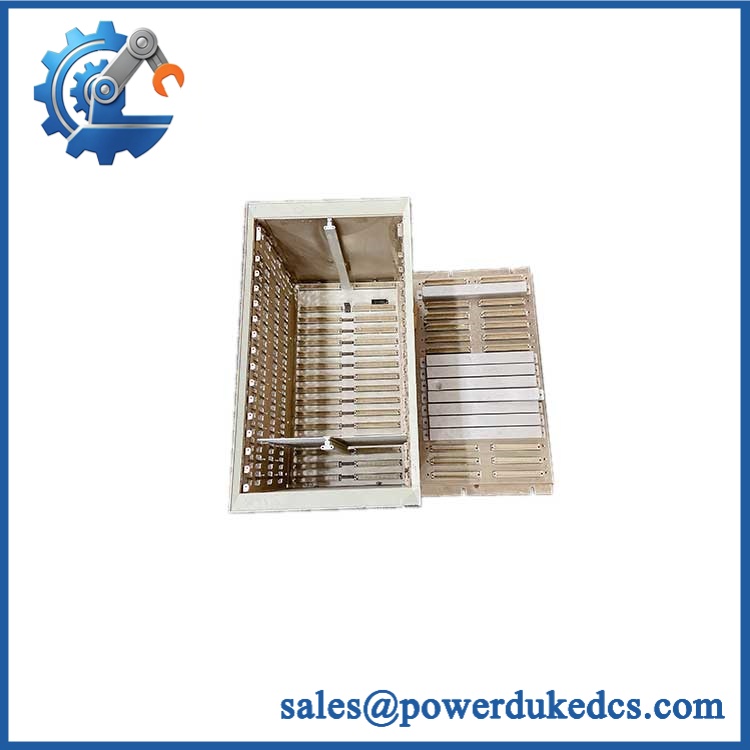

Bently Nevada 3500/05-01-01-00-00-00 | System Rack 19 Inch

• Brand: Bently Nevada
• Full Model Number: 3500/05-01-01-00-00-00
• Lifecycle Status: Active documentation / production-sale status requires current supplier confirmation
• Core Function: 3500 System Rack for mounting monitor modules, power supplies, and rack interface hardware
• Top 3 Technical Specs: 19-inch full-size rack | 14 module slots | Panel-mount configuration
• Stock & Condition: New Surplus / OEM inventory subject to physical stock confirmation | Tested condition available | Emergency dispatch subject to QC and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

When a 3500 system rack is damaged, sourcing the exact mechanical and electrical configuration can become more difficult than replacing an individual monitor. The 3500/05-01-01-00-00-00 is the 19-inch full-size, panel-mount configuration of the 3500 System Rack. According to the current Bently Nevada datasheet, the full-size rack provides 14 available module positions, while the rack distributes power and allows installed 3500 modules to communicate with one another. That makes the correct rack configuration critical during plant maintenance, especially where the existing panel cutout and rear wiring are already fixed.

For TCO, retaining the existing 3500 architecture generally avoids the engineering, panel fabrication, rewiring, commissioning, and documentation costs associated with a platform replacement. The specified configuration uses the full-size panel-mount format, so a like-for-like rack replacement can preserve the physical installation rather than forcing a cabinet redesign. Bently Nevada specifies a recommended full-size panel cutout of approximately 452.1 ± 1.5 mm by 251.5 ± 1.5 mm, while the rack body is approximately 482.6 mm wide and 265.94 mm high. —For legacy plant assets, confirming the exact six-field ordering code before shipment can prevent an expensive field-fit problem.

Module 4: Compatibility & Replacement Matrix (Crucial for Buyers)

Field Traps — Watch Out

Ordering-code mismatch: Bently Nevada defines the rack as 3500/05-AA-BB-CC-DD-EE. In this code, 01 identifies the 19-inch rack, 01 identifies the full-size panel-mount option, 00 identifies no agency approval option, 00 is the reserved field, and 00 indicates no CE option. Do not approve a visually similar rack without checking every suffix.

Panel and barrier interference: The full-size rack’s installation depth is affected when internal barriers are used. Bently Nevada lists approximately 13.75 inches (349.25 mm) and 16.65 inches (422.91 mm) where internal barriers apply. Racks fitted with internal barriers also require the 3500/04-01 Internal Barrier Earthing Module, which consumes a dedicated rack position.

Bently Nevada 3500/05-01-01-00-00-00

Module 5: Quality Assurance & Testing SOP

The rack should be treated as a structural and electrical system component, not simply as a metal enclosure. Pre-shipment inspection should therefore cover identification, mechanical integrity, backplane condition, and system-level fit.

• OEM anti-counterfeit visual inspection: Verify Bently Nevada markings, model labeling, serial/date identifiers where present, finish, hardware, connectors, and backplane construction.
• Part-number verification: Confirm the complete 3500/05-01-01-00-00-00 ordering code rather than checking only the 3500/05 family.
• Mechanical inspection: Examine mounting ears, card guides, module retainers, backplane connectors, grounding points, and enclosure surfaces for deformation, corrosion, cracks, or unauthorized repair.
• Backplane continuity check: Inspect critical power-distribution and communication paths for damaged contacts or abnormal resistance.
• Module seating test: Install representative 3500 modules and verify proper mechanical engagement without excessive insertion force.
• Power-path verification: Confirm the rack’s power-distribution path and connector condition before applying system power.
• Communication-path test: With an appropriate 3500 test setup, verify that installed modules can communicate through the rack architecture.
• Configuration verification: Confirm that power supplies, rack interface hardware, and monitor modules occupy the correct rack positions. Bently Nevada specifies that power supplies and the rack interface module occupy the far-left positions.
• Final QC: Record part number, physical condition, test results, inspector approval, photographs, and packaging status before release.

Bently Nevada’s current datasheet also specifies environmental and compliance requirements for the 3500/05 system rack, including EMC, electrical-safety, and hazardous-area provisions that depend on the selected configuration.

Module 6: Procurement & Lifecycle FAQ

Q1. Is Bently Nevada 3500/05-01-01-00-00-00 genuinely in stock, and what is the cutoff for emergency shipping?
A1. Actual warehouse quantity should be confirmed against the required quantity and condition before the PO is released. Emergency dispatch depends on payment clearance, QC completion, packing, and carrier pickup time. Do not equate an online product listing with physically verified inventory.

Q2. How do you guarantee the condition and authenticity of a surplus 3500/05 rack?
A2. Procurement should require verification of the complete part number, OEM markings, backplane and connector inspection, mechanical checks, representative module-fit testing, and documented QC photographs. For new-surplus units, packaging and labeling should also be inspected before shipment.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
A3. The rack itself is primarily the mechanical, power-distribution, and communication platform for the 3500 modules, so a like-for-like rack replacement normally does not involve a firmware flash. Configuration and software requirements still need review, particularly when changing rack size or system architecture. Bently Nevada specifically notes that the 3500/05 mini-rack requires Version 2.70 or later of the 3500/01 software; that requirement should not be incorrectly applied to a full-size rack.

Q4. Is 3500/05-01-01-00-00-00 a direct replacement for another 3500/05 rack?
A4. Only when the replacement preserves the required rack size, mounting configuration, agency approval, compliance suffix, and installed barrier arrangement. The six-part ordering code matters. A rack with a different mounting or approval suffix should be treated as a different procurement configuration, even when the front appearance is similar.

Q5. What warranty and return protection should procurement require?
A5. The quotation should state the warranty duration, DOA definition, return authorization process, inspection window, and freight responsibility. For surplus or legacy inventory, also require the exact condition classification and confirmation that the shipped unit will carry the contracted part number.
