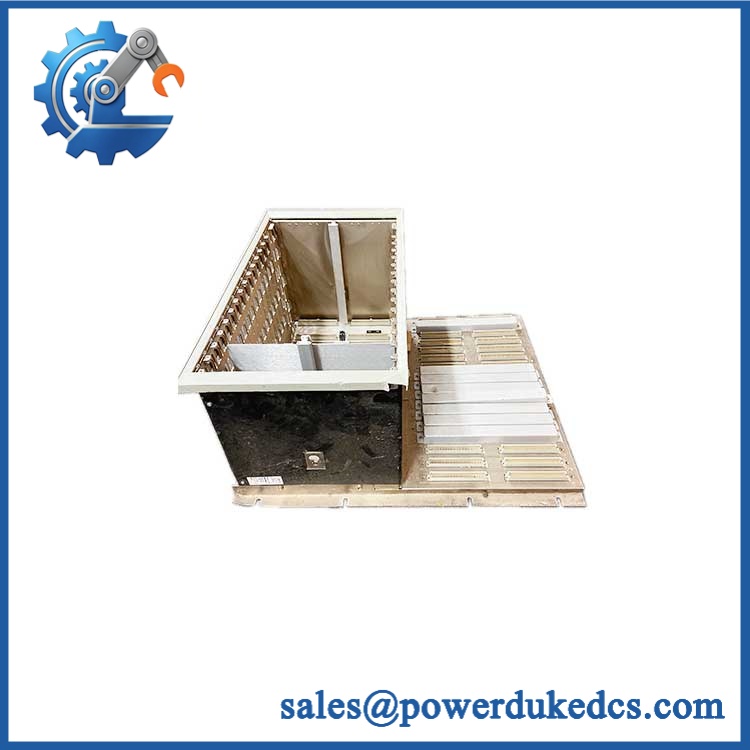

Bently Nevada 3500/05-01-01-00 | System Rack 19 Inch 14 Slot

Description

• Brand: Bently Nevada
• Full Model Number: 3500/05-01-01-00
• Lifecycle Status: Legacy / active-series spare; exact manufacturing status should be confirmed against current Bently Nevada ordering records
• Core Function: 3500 Series system rack for mounting monitor modules and power supplies
• Top 3 Technical Specs: 19-inch full-size rack | 14 module slots | Panel-mount configuration
• Stock & Condition: New surplus / tested used depending on physical inventory; stock and condition require lot-level confirmation

Module 3: Obsolescence & Supply Chain Deep Dive

A missing 3500/05 rack can stop a straightforward machinery-monitoring repair even when every individual monitor module is already available. The 3500/05-01-01-00 configuration is the 19-inch full-size rack with 14 available module positions and the panel-mount format. Its backplane provides the physical interconnection between 3500 modules, while the rack positions also accommodate the required power supplies and rack interface hardware. Bently Nevada’s current 3500/05 datasheet confirms that the power supplies and rack interface module occupy the far-left positions, leaving the remaining 14 positions for module combinations.

Replacing the rack is normally far less expensive than redesigning an operating 3500 machinery-protection installation around a different platform. The economic comparison should include panel rework, engineering drawings, field wiring changes, recommissioning, alarm validation, and the downtime associated with a system migration. Here, the existing rack architecture remains intact, reducing engineering scope and preserving installed 3500 modules. The specific -01-01-00 ordering code identifies a 19-inch rack, panel mounting, and no agency approval option; the European compliance field is a separate ordering position, so procurement should verify the complete five-field ordering code before release.

Module 4: Compatibility & Replacement Matrix

The Bently Nevada ordering structure identifies 01 as the 19-inch rack with 14 module slots and the second 01 as the panel-mount full-size configuration. 00 indicates no agency approval for the third field, while the fourth field is reserved; a fifth field can specify CE compliance.

Field Traps — Watch Out

Ordering-code mismatch: Do not approve a substitute solely because it says “3500/05.” A rack with the wrong mounting or certification configuration may not match the existing enclosure, panel cutout, or site approval requirements. The manufacturer specifies distinct codes for panel mount, rack mount, bulkhead mount, agency approvals and CE compliance

Internal-barrier configuration: If the installation uses internal barriers, the rack requires a 3500/04-01 Internal Barrier Earthing Module, which consumes a dedicated rack position. Check the existing rack configuration before assuming identical available capacity.

Module 5: Quality Assurance & Testing SOP

For a critical 3500 rack, visual condition alone is insufficient. The inspection should establish mechanical integrity, correct ordering-code identity and electrical continuity before shipment.

1. Part identity verification: Record the complete nameplate/order code, serial information, revision markings and manufacturer identification.
2. OEM anti-counterfeit visual inspection: Examine labels, machining, connectors, fasteners, backplane construction, PCB markings and evidence of unauthorized repair.
3. Mechanical inspection: Check the full rack frame, mounting points, card guides, module retention features and connector interfaces for deformation, corrosion or impact damage.
4. Backplane continuity test: Verify critical power and communication paths for continuity and absence of unintended shorts before energization.
5. Power-input inspection: Check the power-supply mounting positions, input connector condition and associated protective components.
6. Power-on test: Install the rack with compatible test hardware and verify normal power distribution and module recognition.
7. Module communication test: Populate representative 3500 modules and confirm expected backplane communication between installed modules.
8. I/O load testing: Where the test configuration permits, operate representative modules under controlled load and monitor for abnormal voltage drop, intermittent connections or thermal behavior.
9. Configuration verification: Confirm that the physical rack configuration matches the purchase order and the customer’s required 3500 system architecture.
10. Final QC release: Record test results, inspection photographs and serial traceability; protect the rack against impact, contamination and electrostatic exposure during packing.

The manufacturer specifies the 3500/05 as the mounting and interconnection platform for 3500 monitor modules and power supplies, with defined full-size and mini-rack variants.

Bently Nevada 3500/05-01-01-00

Module 6: Procurement & Lifecycle FAQ

1. Is the 3500/05-01-01-00 physically in stock, and what is the emergency-shipping cutoff?

Stock should be treated as confirmed only after physical verification of the exact ordering code. Current supplier listings show closely related 3500/05 configurations, but variants differ by mounting, approval and compliance fields.For emergency requirements, require same-day confirmation of the exact part number, condition, available quantity and carrier cutoff before releasing the PO.

2. How do you verify the condition and authenticity of a surplus 3500/05 rack?

Require a documented serial/nameplate inspection, OEM anti-counterfeit visual check, mechanical inspection, backplane continuity testing and a powered functional test with representative 3500 hardware. The acceptance record should identify the exact ordering code rather than simply stating “3500/05.”

3. Are firmware compatibility issues relevant to this rack?

Firmware is generally less of a concern for the passive rack assembly itself than for the 3500 monitor modules and system software installed in the rack. The critical compatibility checks are the rack format, module capacity, power arrangement, internal barriers and the software requirements of the modules being installed. Bently Nevada specifically states that the power supplies and rack interface module must occupy the far-left positions.

4. Will 3500/05-01-01-00 fit my existing panel without modification?

Only when the existing installation matches the full-size panel-mount configuration. The documented full-size rack dimensions are approximately 19.000 inches wide, 10.470 inches high and 9.700 inches deep, with a recommended panel cutout of approximately 17.80 ± 0.06 inches by 9.90 ± 0.60 inches. Verify the physical enclosure before ordering

5. What warranty and return terms should procurement require?

The PO should define the accepted condition, functional-test requirement, DOA coverage, warranty duration, return window and evidence required for a failure claim. For obsolete or surplus inventory, make the exact ordering code and documented test status part of the acceptance criteria rather than relying on a generic “3500/05” description.
