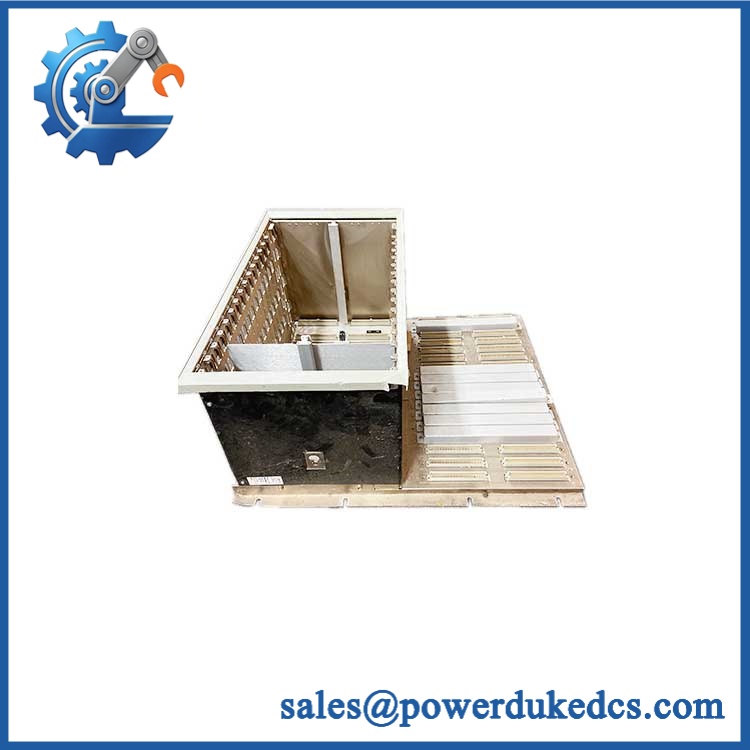

Bently Nevada 3500/05-01-01-01-00-00 | System Rack Chassis

• Brand: Bently Nevada
• Full Model Number: 3500/05-01-01-01-00-00
• Lifecycle Status: Active / Lifecycle verification recommended
• Core Function: Full-size 3500 system rack for mounting machinery-monitoring modules and power supplies
• Top 3 Technical Specs: 19-inch EIA rack | 14 module positions | Panel-mount configuration with CSA/NRTL/C approval
• Stock & Condition: Physical stock confirmation required | New Surplus / New Factory Stock by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

When a 3500 rack chassis is damaged, corroded, or unavailable during a shutdown, the problem extends beyond the enclosure itself. The rack provides the physical backplane structure through which the 3500 modules communicate and receive distributed power. Bently Nevada 3500/05-01-01-01-00-00 is a full-size 19-inch EIA 3500 system rack with 14 module slots, configured for panel mounting and CSA/NRTL/C approval. The published 3500/05 ordering structure confirms that the final 00 denotes the European compliance option as none, while the 01 agency option specifies CSA/NRTL/C.

For an existing 3500 installation, replacing the rack chassis can be substantially less expensive than redesigning the complete machinery protection system. The rack is the required platform for 3500 monitor modules, power supplies, the TDI, and associated I/O, so preserving the existing module population, field wiring, and engineering configuration can reduce outage and commissioning costs. The rack itself has no monitoring firmware to migrate; the critical checks are mechanical fit, backplane condition, mounting format, approvals, and correct left-side placement of power supplies and the rack interface module. (For legacy 3500 installations, verified rack inventory can avoid waiting for a replacement chassis during a scheduled maintenance window.)

Module 4: Compatibility & Replacement Matrix

The 3500/05 ordering structure defines 01 as the 19-inch rack with 14 module slots, 01 as panel mount, 01 as CSA/NRTL/C approval, 00 as reserved/no selection, and 00 as no CE selection.

Field Traps — Watch Out

• Configuration-code mismatch: Do not substitute another 3500/05 chassis simply because it has 14 slots. The mounting and agency-approval options are encoded in the ordering number. A rack-mount version or different approval configuration may not satisfy the existing installation requirements.
• Backplane and left-side module position: The power supplies and rack interface module must occupy the far-left rack positions. Before transferring modules, inspect the backplane and verify that the existing system arrangement remains compliant.

Bently Nevada 3500/05-01-01-01-00-00

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 3500/05-01-01-01-00-00 should include:

• Identity verification: Confirm the complete 3500/05-01-01-01-00-00 ordering code, rack size, mounting format, approval marking, and identification labels.
• OEM anti-counterfeit visual inspection: Inspect Bently Nevada markings, chassis construction, labels, fasteners, backplane identification, and evidence of unauthorized modification.
• Mechanical inspection: Check the rack frame, panel-mount clamps, card guides, module retention hardware, backplane connectors, and mounting surfaces.
• Dimensional verification: Confirm the full-size 19-inch EIA form factor and mounting dimensions against the applicable 3500/05 documentation. The published rack documentation specifies approximately 482.6 mm (19.000 in.) width and 265.94 mm (10.470 in.) height for the full-size rack.
• Backplane inspection: Examine connector contacts, board interfaces, power-distribution paths, grounding points, and the rack backplane for corrosion, contamination, bent contacts, or physical damage.
• Module-slot fit test: Install representative 3500 modules into the rack positions and verify correct seating, retention, and card-guide alignment.
• Power-distribution check: With an approved test configuration, verify correct power distribution from the rack supply interface to representative module positions.
• Rack interface test: Verify correct mechanical and electrical engagement of the rack interface module.
• Communication test: Install representative 3500 modules and confirm normal rack-level communication through the backplane.
• Grounding/continuity test: Verify protective-earth continuity and relevant chassis grounding points.
• Thermal inspection: Operate the populated rack under controlled conditions and inspect for abnormal heating around power and backplane connections.
• Final QC: Record ordering code, physical dimensions, backplane condition, electrical test results, inspection photographs, condition grade, and packaging approval.

The 3500/05 is a passive rack assembly, so the most meaningful acceptance checks are mechanical fit, backplane integrity, grounding, and power distribution rather than firmware testing. The rack documentation states that its purpose is to house 3500 monitor modules and power supplies while providing communication and power distribution between modules.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/05-01-01-01-00-00 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the complete 3500/05-01-01-01-00-00 ordering code before PO release. Emergency dispatch depends on the actual rack being physically available, payment clearance, export documentation, and the carrier’s daily pickup cutoff.

How do you verify the condition and authenticity of this legacy rack?
Require complete ordering-code verification, OEM marking inspection, dimensional inspection, backplane examination, card-guide inspection, grounding continuity testing, and module-fit verification. New surplus units should also be checked for storage damage, corrosion, and deformation.

Can I substitute another 3500/05 rack?
Not automatically. The 3500/05 ordering code contains separate selections for rack size, mounting option, agency approval, reserved configuration, and European compliance. For this unit, the documented configuration is 19-inch full-size, panel mount, CSA/NRTL/C, no reserved option, and no CE selection.

Are there firmware compatibility issues engineers should check before issuing the PO?
The rack itself does not normally require firmware matching. Engineering should instead verify the rack configuration, backplane condition, module positions, power-supply arrangement, rack interface module, grounding, and the approvals required by the installation.

What warranty and return terms should procurement require?
The quotation should specify the complete 3500/05-01-01-01-00-00 ordering code, condition grade, serial or asset traceability where available, inspection and test scope, warranty period, DOA coverage, and return authorization procedure. For a rack chassis, dimensional and backplane inspection results should form part of the acceptance record.
