Description
- Brand: Bently Nevada
- Full Model Number: 3500/05-02-04-00-00-00
- Lifecycle Status: Legacy / Obsolescence-Risk
- Core Function: 3500 machinery protection system mini-rack and module backplane
- Top 3 Technical Specs: 12-inch Mini-Rack; 7 module slots; panel-mount configuration
- Stock & Condition: New surplus / tested inventory — verify rack configuration, compliance option, and installed module requirements before PO
The 3500/05-02-04-00-00-00 is a Bently Nevada 3500/05 System Rack, specifically the 12-inch Mini-Rack with seven module positions and panel mounting. The ordering code specifies no agency approval, no reserved option, and no European CE option.
Module 3: Obsolescence & Supply Chain Deep Dive
A failed 3500/05 rack can halt maintenance activity across an entire machinery-protection system because the rack provides the mechanical mounting, backplane communication path, and power distribution for the installed 3500 modules. The 3500/05-02-04-00-00-00 uses the 12-inch Mini-Rack format with seven functional module slots and panel mounting. The power supplies and Rack Interface Module occupy the designated left-side positions, leaving the remaining positions for compatible 3500 monitor hardware.
From a TCO perspective, replacing the rack preserves the existing 3500 monitor modules, field I/O architecture, protection settings, and cabinet engineering rather than forcing a complete machinery-monitoring migration. That can sharply reduce engineering labor and outage exposure. The important procurement issue is configuration matching. The 02 specifies the Mini-Rack size, 04 specifies panel mounting, and 00-00-00 specifies no agency approval, no reserved option, and no CE option. A rack with different mounting, approval, or compliance requirements should not be treated as an interchangeable substitute.
Module 4: Compatibility & Replacement Matrix
| Procurement Check | 3500/05-02-04-00-00-00 Assessment | Engineering Action |
|---|---|---|
| Replacement Type | Drop-in Replacement for the same 12-inch panel-mounted configuration | Match the complete ordering code |
| Software Compatibility | Configuration-dependent at the rack/system level | Verify 3500 configuration software version and module arrangement |
| Hardware Modification | Normally none for an identical rack configuration | Confirm cabinet dimensions, mounting holes, wiring, and slot allocation |
| Typical Switch Time | Approx. 2–4 hours for rack replacement and module transfer | Allow additional time for system verification |
| Estimated Engineering / Testing Cost | Approx. 500–2,000 | Include rack power, communication, and module diagnostic checks |
| Alternative Migration | Larger rack or new machinery-protection architecture | Requires cabinet and engineering redesign |
Field Traps — Watch Out
Mini-Rack versus full-size rack: 02 defines the 12-inch Mini-Rack with seven module positions. The 3500/05 family also includes 19-inch full-size racks with 14 module positions. A full-size rack is not a physical drop-in substitute for this configuration.
Software revision: Bently Nevada’s rack documentation identifies 3500/01 Version 2.70 or later as a requirement for the 3500 Mini-Rack. Check the installed configuration software before commissioning a replacement rack.
Approval configuration: 00 means no agency approval and the final 00 indicates no CE option. If the installed rack forms part of a classified-area system or a site requiring specified compliance markings, this exact configuration may not satisfy the site’s procurement requirements.

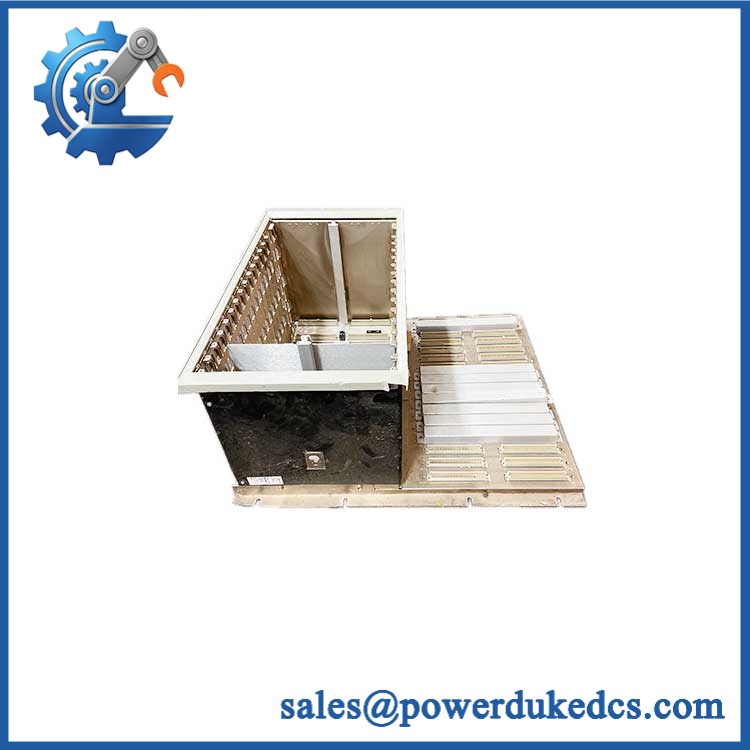

Bently Nevada 3500/05-02-04-00-00-00
Module 5: Quality Assurance & Testing SOP
The 3500/05 is a passive rack assembly, so QA should focus on mechanical accuracy, backplane integrity, power distribution, and communication continuity.
1. Incoming inspection
- Record manufacturer, complete part number, serial/date code, and nameplate information.
- Perform OEM anti-counterfeit visual inspection.
- Inspect rack frame, card guides, connectors, mounting hardware, and backplane.
- Check for corrosion, contamination, deformation, cracked insulation, damaged contacts, or unauthorized modification.
2. Configuration verification
- Confirm 3500/05-02-04-00-00-00 identification.
- Verify 12-inch Mini-Rack configuration.
- Verify panel-mount construction.
- Confirm no-agency-approval configuration.
- Confirm no CE option.
- Photograph the complete rack and identification markings for traceability.
3. Electrical inspection
- Inspect the backplane power-distribution circuits and connector contacts.
- Perform continuity checks on applicable power and ground paths.
- Verify grounding/bonding continuity.
- Inspect for shorted or damaged backplane contacts.
- Check connector retention and mechanical alignment.
4. Rack-level functional testing
- Install the rack in a compatible 3500 test setup.
- Install representative power supplies and Rack Interface Module hardware.
- Apply controlled system power.
- Perform power-on self-test (POST) at the system level.
- Verify rack power distribution and module initialization.
- Confirm communication between the installed 3500 modules across the rack bus.
- Exercise representative monitor modules and verify normal diagnostics.
- Perform I/O load testing through representative installed modules where applicable.
- Check for intermittent backplane communication or power faults during an extended run.
5. Final QC
- Record electrical continuity, power-distribution, communication, and fit-check results.
- Record rack identification and inspection date.
- Generate a unit-specific Test Report.
- Verify mounting hardware and card guides are secure.
- Package to prevent frame deformation and connector damage.
- Apply final QC identification before shipment.
Module 6: Procurement & Lifecycle FAQ
Is Bently Nevada 3500/05-02-04-00-00-00 genuinely in stock, and what is the emergency-shipping cutoff?
Current equipment listings show this exact model being offered as available stock, but physical allocation should still be confirmed against the actual rack before the PO is released. Emergency dispatch depends on inspection completion, order/payment clearance, warehouse processing, and the courier cutoff.
How do you guarantee the condition and authenticity of a surplus 3500/05 rack?
Require full part-number verification, nameplate inspection, backplane and connector inspection, grounding continuity testing, mechanical fit verification, controlled rack power-up, and module communication testing. A unit-specific Test Report should document the actual rack inspected.
Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?
The rack itself does not normally require a firmware match like an intelligent monitor module. The important software consideration is the 3500/01 configuration software requirement; available documentation specifies Version 2.70 or later for the Mini-Rack. Verify the site’s existing software environment before commissioning.
Can I substitute another 3500/05 System Rack?
Not automatically. The 3500/05 ordering code differentiates rack size and mounting method. This model is a 12-inch Mini-Rack with seven module slots and panel mounting. Other 3500/05 configurations may be full-size, rack-mounted, or differently approved. Match the complete code to the installed cabinet arrangement.
What warranty and return terms should procurement require?
Specify 3500/05-02-04-00-00-00, serial number, rack configuration, tested condition, warranty duration, DOA criteria, acceptance window, and return procedure in the PO. Acceptance should include mechanical fit, backplane continuity, grounding, rack power distribution, and successful communication with representative 3500 modules.
