Description
- Brand: Bently Nevada
- Full Model Number: 3500/15
- Lifecycle Status: Active / Lifecycle-managed
- Core Function: 3500 Series rack power supply
- Top 3 Technical Specs: Half-height rack module; AC and DC input variants; one or two supplies per rack with redundant operation
- Stock & Condition: New Surplus / Tested Refurbished; Exact input variant required; Emergency dispatch subject to order cutoff
The 3500/15 is a product family rather than one fixed electrical configuration. Bently Nevada specifies Universal AC, High Voltage DC, and Low Voltage DC versions, with input ranges dependent on the exact ordering code. A 3500 rack can use one or two power supplies, and either supply can power the full rack.
Module 3: Obsolescence & Supply Chain Deep Dive
A failed 3500/15 power supply can take an entire Bently Nevada 3500 machinery-protection rack offline, making the correct replacement a production-protection issue rather than a routine electronics purchase. The module is a half-height power supply installed in designated slots on the left side of the rack. Bently Nevada supports multiple electrical versions, including Universal AC at 85–264 Vac rms, Legacy Low Voltage DC at 20–30 Vdc, and other high-voltage DC and newer DC configurations.
The TCO case is strongest when the installed rack can be restored without changing its power architecture. A correct 3500/15 replacement preserves the existing rack, monitor modules, wiring, and protection configuration, avoiding unnecessary cabinet engineering and commissioning work. Dual supplies provide an important availability advantage: the lower-position supply operates as primary and the upper-position supply as backup; with redundancy installed, Bently Nevada states that either power-supply module can be removed or inserted without interrupting rack operation.
Module 4: Compatibility & Replacement Matrix
| Purchase Approval Item | Assessment |
|---|---|
| Replacement Classification | Drop-in Replacement only when the exact 3500/15 electrical configuration matches |
| System Family | Bently Nevada 3500 Series |
| Module Type | Half-height rack power supply |
| Input Variants | Universal AC / High Voltage DC / Low Voltage DC |
| Software Compatibility | Not applicable to the power-supply module itself |
| Hardware Modification | Normally not required for an exact configuration replacement |
| Estimated Physical Changeover | 30–60 minutes |
| Commissioning / Validation | Required for input, output, rack-power, and alarm-status verification |
| Engineering Cost Exposure | Low versus redesigning the 3500 rack power architecture |
Field Traps — Watch Out
- Input-voltage mismatch: “3500/15” alone is insufficient for procurement. The exact suffix determines the electrical configuration. Universal AC, Legacy Low Voltage DC, and newer DC supplies are separate configurations, and Bently Nevada explicitly states that certain newer and legacy AC/DC supply combinations are not compatible.
- Legacy versus current DC hardware: Bently Nevada specifically notes that High Voltage and Low Voltage DC Power Supplies and PIMs are not compatible with the legacy High Voltage and Low Voltage DC Power Supplies and PIMs. Match the complete part number and installed generation before releasing the PO.

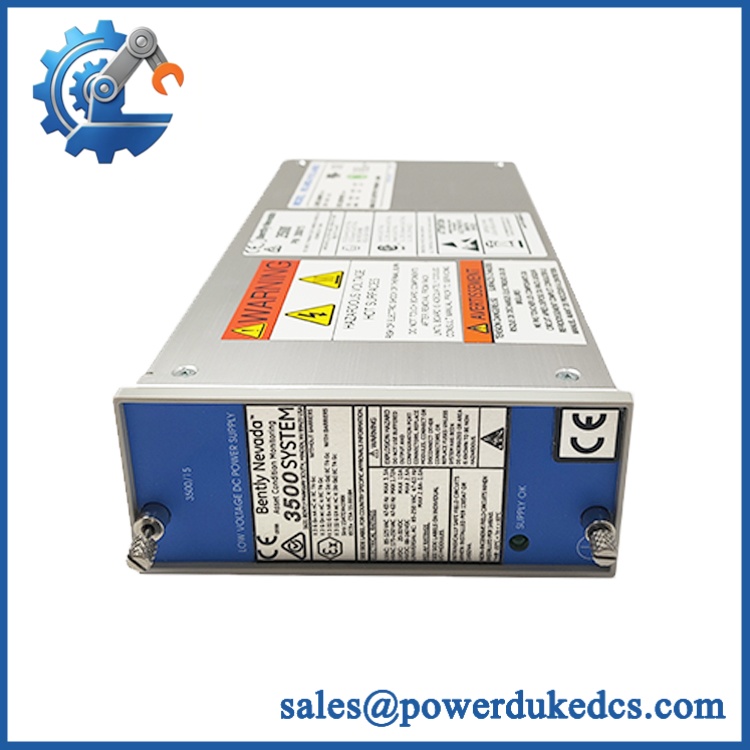

Bently Nevada 3500/15
Module 5: Quality Assurance & Testing SOP
The 3500/15 sits directly in the rack power path, so pre-shipment QA should include controlled electrical testing rather than visual inspection alone.
- Incoming traceability: Record Bently Nevada identification, complete 3500/15 ordering code, serial number, revision, and date-code information.
- OEM anti-counterfeit visual inspection: Examine front-panel markings, PCB identification, connectors, terminal interfaces, enclosure, fasteners, and evidence of unauthorized repair.
- Mechanical inspection: Verify module dimensions, rack guides, retention hardware, connectors, and chassis condition.
- Power-on self-test (POST): Install on an approved 3500 test rack and verify normal startup and SUPPLY OK indication.
- Input-voltage test: Apply the correct controlled AC or DC input corresponding to the exact configuration under test.
- Output-rail verification: Measure all applicable rack supply outputs and compare readings against the approved test limits.
- Current-load test: Apply representative rack loading and monitor output stability, current draw, and temperature rise.
- Protection testing: Exercise applicable over-voltage, under-voltage, and current-protection functions using an approved laboratory procedure.
- Rack integration test: Confirm that the power supply correctly energizes a representative 3500 rack and installed modules.
- Redundancy test: Where applicable, test primary/backup operation using two installed supplies.
- Hot-swap verification: For redundant configurations, verify controlled removal/insertion behavior without loss of rack power, consistent with the applicable Bently Nevada specification.
- Extended operation: Run the supply under representative load while monitoring output stability, temperature, and diagnostic status.
- Final QC release: Record input configuration, measured output values, load-test results, status indication, serial number, inspection date, and technician approval.
Module 6: Procurement & Lifecycle FAQ
1. Is the Bently Nevada 3500/15 genuinely in stock, and what is the cutoff for emergency shipping?
Because 3500/15 is a family designation, stock must be confirmed against the complete power-supply ordering code rather than the generic 3500/15 name. For an emergency requirement, verify the exact AC/DC type, physical stock, condition, current photographs, and warehouse dispatch cutoff before releasing the PO.
2. How do you verify the condition and authenticity of an obsolete or surplus 3500/15?
Verify the complete ordering code, manufacturer markings, serial information, front-panel condition, connectors, and PCB construction. Then perform controlled power-up, SUPPLY OK verification, output-voltage measurements, load testing, and rack-integration testing. Keep the measured results with the MRO receiving record.
3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?
There is no application firmware requirement for the power supply itself. The critical compatibility issue is electrical generation and input type. Bently Nevada identifies separate Universal AC, High Voltage DC, Low Voltage DC, and legacy supply configurations, with explicit incompatibilities between some legacy and current versions.
4. Can the 3500/15 be replaced without modifying the existing rack?
Yes, when the replacement matches the installed 3500/15 configuration and designated rack position. The module is specifically designed as a half-height rack power supply. Verify input voltage, supply generation, connector arrangement, and whether the rack uses a single or redundant supply before installation.
5. What warranty and return terms should procurement require?
The PO should specify the complete 3500/15 ordering code, not merely “3500/15,” together with condition, electrical configuration, test status, warranty period, and return procedure. Warranty coverage should address DOA and verified power-supply failure while excluding damage caused by incorrect input voltage, reverse polarity on DC configurations, rack faults, improper wiring, overload, or unauthorized modification.
