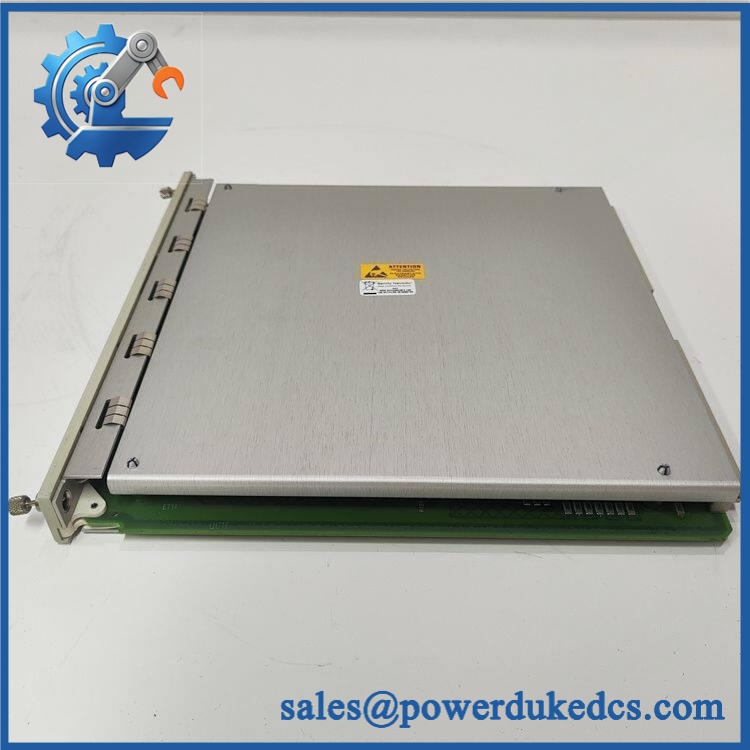

Bently Nevada 3500/20 125744-01 | TMR Rack Interface Module

• Brand: Bently Nevada
• Full Model Number: 3500/20 125744-01
• Lifecycle Status: Legacy / Supported Spare
• Core Function: TMR Rack Interface Module for the 3500 Machinery Protection System
• Top 3 Technical Specs: TMR architecture; Slot 1 rack installation; RS-232 / RS-422 rack and host interfaces
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 3500/20 125744-01 does not normally stop the individual monitor modules from performing their core protection functions, but it can disrupt rack configuration, data retrieval, communications, and system-level status functions. The 125744-01 is the TMR Rack Interface Module (RIM) for the 3500/20. Bently Nevada documentation distinguishes it from 125744-02, the standard RIM, and specifies that the TMR version is used where the application requires a Triple Modular Redundant configuration. The RIM occupies the rack’s slot 1, next to the power supplies.

For a site already standardized on a 3500 TMR installation, replacing the failed RIM is usually a lower-TCO action than redesigning the rack communication architecture. The existing monitor cards, rack wiring, external communication equipment, and configured protection system can remain in place when the correct RIM is installed. The RIM provides the rack interface and communication functions without forming part of the critical monitoring path, which limits the scope of the failure—but the loss of rack interface functions can still affect diagnostics and data availability.

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s current ordering information explicitly identifies 125744-01 as the TMR Rack Interface Module and 125744-02 as the Standard Rack Interface Module.

Estimated switch cost/time: For a tested spare already available on-site, plan approximately 1–3 hours for controlled module replacement, hardware-setting verification, rack startup, communications checkout, and configuration validation. A sourced unit may require 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• TMR vs. standard RIM: 125744-01 is specifically the TMR version; 125744-02 is the standard version. Do not approve substitution solely because both share the 3500/20 designation.
• Slot 1 requirement: The RIM must be installed in slot 1, immediately next to the 3500 rack power supplies. Incorrect placement is a configuration error, not merely a cosmetic issue.
• Firmware dependency: Bently Nevada documentation identifies firmware IC 128755-01 for specific revisions of both 125744-01 and 125744-02. Record the installed firmware revision before replacement.
• I/O module mismatch: The RIM main board and its I/O module are separate components. Confirm whether the required assembly uses the modem interface or RS-232/RS-422 interface before releasing the PO.

Bently Nevada 3500/20 125744-01

Module 5: Quality Assurance & Testing SOP

A TMR Rack Interface Module should be qualified at both the board and rack-communication levels. A successful power-up alone does not establish functional acceptance.

• Part-number verification: Confirm 125744-01, full ordering information, revision, serial number, and Bently Nevada identification.
• OEM anti-counterfeit visual inspection: Inspect manufacturer markings, PCB identifiers, connectors, terminal blocks, component placement, switches, and evidence of unauthorized rework.
• Physical condition inspection: Check the board, edge connector, front-panel assembly, mounting hardware, and associated I/O module for corrosion, cracking, contamination, or thermal damage.
• TMR configuration verification: Confirm the module is the 125744-01 TMR version rather than 125744-02 Standard RIM.
• Hardware-switch inspection: Record the position of applicable hardware switches before testing.
• Continuity testing: Verify applicable power, ground, and accessible signal paths prior to energization.
• Power-on self-test (POST): Install the RIM in an appropriate 3500 rack test environment and verify startup status, including the OK, TX/RX, TM, and CONFIG OK indications.
• Rack interface test: Confirm the RIM communicates correctly with the installed 3500 monitor modules.
• Configuration-port test: Verify the front-panel configuration interface can communicate with the rack using the applicable serial interface.
• Host communications test: Test the applicable rear-panel host interface and confirm reliable data exchange.
• RS-232/RS-422 interface testing: Where the installed I/O configuration supports these interfaces, verify transmit and receive operation using the appropriate test equipment.
• Data Manager interface test: Where fitted, verify the associated Data Manager communication path.
• Rack-status verification: Confirm rack reset, Trip Multiply, Alarm Inhibit, and OK relay functions respond correctly where applicable.
• I/O load testing: Operate the rack interface under representative communication and data loads while monitoring module stability and temperature.
• Firmware verification: Record firmware identification and compare it with the installed rack requirements before final release.
• Extended observation: Maintain the rack under communication load long enough to identify intermittent TX/RX, configuration, or interface faults.
• Final QC release: Record part number, revision, firmware version, hardware-switch settings, communication-test results, photographs, condition grade, test date, and QC authorization.

Published specifications for the 3500/20 RIM identify maximum power consumption of approximately 4.75 W, a maximum serial communication rate of 38.4 kbaud for the RS-232 and RS-232/RS-422 interfaces, and dedicated front-panel operating-status LEDs.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/20 125744-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 125744-01 part number and TMR configuration before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup time, and destination. Same-day shipment should only be confirmed after the actual module has been physically identified and released.

Q2. How do you guarantee the condition and authenticity of an obsolete or surplus 125744-01?
Require exact part-number verification, OEM visual inspection, PCB and connector inspection, controlled power-up, LED/status verification, rack communication testing, firmware identification, and documented QC results. Photographs of the actual module and identification markings should remain with the procurement record.

Q3. Can 125744-02 replace 125744-01?
Not as a routine drop-in substitution. Bently Nevada defines 125744-01 as the TMR RIM and 125744-02 as the Standard RIM. The correct version depends on the rack’s architecture and application requirements.

Q4. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. Bently Nevada lists firmware IC 128755-01 for specific revisions of both RIM versions. The installed revision should therefore be recorded before replacement, and the replacement firmware/configuration should be verified before commissioning.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, communications-function coverage, firmware/configuration conformity, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual rack-interface test record and define whether failures discovered during commissioning are covered.
