Bently Nevada 3500/20 125744-02 | Rack Interface Module

• Brand: Bently Nevada
• Full Model Number: 3500/20 125744-02
• Lifecycle Status: Discontinued / Legacy
• Core Function: Standard Rack Interface Module (RIM) for Bently Nevada 3500 monitoring systems
• Top 3 Technical Specs: RS232 serial communications | 38.4 kbaud maximum | 4.75 W typical power consumption
• Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Rack Interface Module can leave the 3500 monitoring rack operating locally while interrupting configuration, diagnostics, and data transfer to connected systems. Bently Nevada 125744-02 is the 3500/20 Standard Rack Interface Module, with RS232 serial communications, a 38.4 kbaud maximum data rate, configuration keylock, LED indicators, and approximately 4.75 W typical power consumption. The same part number is identified in current equipment records as a discontinued 3500/20 Standard RIM.

For an installed 3500 system, maintaining the existing RIM architecture can be less expensive than re-engineering the rack communication path. The 125744-02 provides the interface between the 3500 rack and external configuration or monitoring equipment, so an exact replacement can preserve existing rack hardware and reduce DCS/PLC communication work, configuration labor, and outage exposure. A key procurement point is that the 125744-02 is the front RIM module, while the associated rear I/O assembly is a separate component in certain 3500/20 configurations. (For discontinued 3500 hardware, verified spare inventory can shorten the recovery window when replacement is needed during a planned shutdown.)

Module 4: Compatibility & Replacement Matrix

Published equipment records identify 125744-02 as the standard 3500/20 RIM with RS232 communications and 38.4 kbaud operation. Another 3500/20 configuration record shows the front card 125744-02 paired with rear card 125768-01, reinforcing that the complete rack interface assembly should be checked before the PO is released.

Field Traps — Watch Out

• Front-card/rear-card mismatch: Confirm whether the installed system uses 125744-02 + 125768-01 as a complete 3500/20 interface assembly. Replacing only the front card without checking the rear I/O configuration can create commissioning problems.
• Communication setting mismatch: Record the existing serial communication settings, rack addressing, configuration-key position, and connected equipment before removal. The 125744-02 uses RS232 and supports up to 38.4 kbaud.

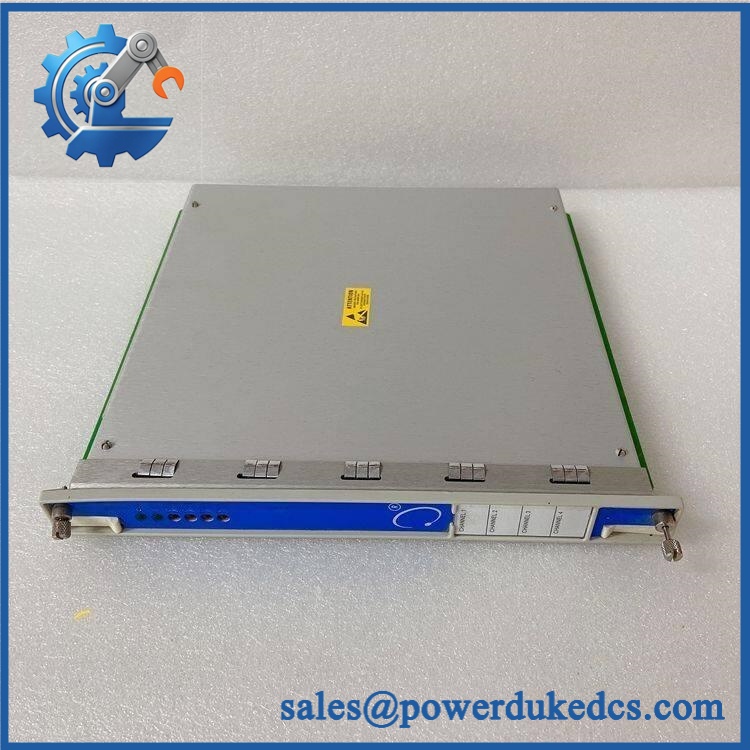

Bently Nevada 3500/20 125744-02

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 3500/20 125744-02 should include:

• Identity verification: Confirm complete 125744-02 part number, 3500/20 designation, serial information, faceplate markings, connectors, and hardware revision.
• OEM anti-counterfeit visual inspection: Examine Bently Nevada labels, PCB markings, connector construction, LED assemblies, keylock mechanism, solder quality, and evidence of unauthorized repair.
• Mechanical inspection: Check card edge, housing, retaining hardware, front-panel interfaces, and connector contacts for corrosion, contamination, cracking, or bent pins.
• Power-on self-test (POST): Install the RIM in an approved 3500 test rack and verify normal startup and status LED behavior.
• Rack recognition test: Confirm that the 3500 rack correctly recognizes the installed RIM.
• RS232 communication test: Establish communication with an approved configuration or monitoring workstation and verify stable data exchange.
• Baud-rate verification: Test the applicable serial communication rate, including operation at the documented 38.4 kbaud maximum where supported by the test configuration.
• Configuration-port test: Verify that the rack can be accessed for configuration and diagnostic operations through the intended interface.
• Keylock verification: Confirm correct operation of the configuration keylock and associated operating modes.
• LED diagnostics: Check each applicable status indicator for normal startup and fault-state behavior.
• Extended communication test: Monitor the RIM for intermittent communication loss, resets, framing errors, or unstable serial data.
• Power-consumption check: Verify operating consumption is consistent with the expected approximately 4.75 W typical value under the approved test arrangement.
• Final QC: Record serial number, firmware or revision information where available, communication-test results, condition grade, inspection photographs, and packaging approval.

The most important acceptance criterion is not simply that the module powers up. It must establish stable communication with the 3500 rack and the intended external configuration or monitoring equipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/20 125744-02 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 125744-02 part number before PO release. Current supplier records show differing availability conditions, so emergency dispatch should be based on physically verified inventory, payment clearance, export documentation, and the carrier’s pickup cutoff.

How do you verify the condition and authenticity of this discontinued RIM?
Require complete part-number and serial verification, OEM marking inspection, PCB and connector examination, power-up diagnostics, communication testing, keylock verification, LED checks, and documented final QC. The condition should be explicitly classified as New Surplus or Tested Refurbished.

Does 125744-02 include the complete 3500/20 interface assembly?
Not necessarily. In certain 3500/20 configurations, 125744-02 is the front Standard RIM card, while 125768-01 is the associated rear I/O module. Procurement should verify whether the installed rack requires the complete front-and-rear assembly.

Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Firmware is not usually the first compatibility check for this RIM. The more important items are the 3500/20 rack configuration, rear I/O card, communication parameters, configuration keylock position, connected communication equipment, and existing rack settings.

What warranty and return terms should procurement require?
The quotation should specify the exact 125744-02 part number, condition grade, serial traceability, communication-test scope, warranty period, DOA coverage, and return authorization procedure. For a discontinued interface module, the acceptance record should include the actual rack-communication test results.
