Bently Nevada 3500/20 125768-01 | Rack Interface I/O Module

• Brand: Bently Nevada
• Full Model Number: 3500/20 125768-01
• Lifecycle Status: Legacy / Lifecycle-managed
• Core Function: RIM I/O Module with RS232/RS422 Interface
• Top 3 Technical Specs: 3500/20 Rack Interface Module; RS232/RS422 interface; Slot 1 rack interface architecture
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Emergency dispatch subject to order cutoff

The 125768-01 is the RIM I/O Module with RS232/RS422 Interface used with the Bently Nevada 3500/20 Rack Interface Module. The RIM is the primary interface to the 3500 rack and is installed in Slot 1. The complete 3500/20 assembly commonly pairs the front RIM card 125744-02 with the rear I/O module 125768-01.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 125768-01 can interrupt communication between an installed 3500 rack and external systems even though the individual machinery-monitoring channels may continue operating. The module provides the rear I/O connection for the 3500/20 RIM and uses the RS232/RS422 interface variant. Because this is a dedicated rack-interface component, substituting a different 3500 I/O assembly based only on physical fit can create an immediate communication problem. For plants maintaining legacy 3500 systems, exact-part sourcing therefore reduces the risk of extended troubleshooting during an outage.

The TCO advantage is primarily the preservation of the existing rack architecture. A matching 125768-01 can avoid unnecessary changes to external serial communications, rack configuration, control-system integration, and commissioning procedures. The 3500/20 RIM also handles rack configuration and machinery-data access, although it is not part of the critical monitoring path itself. That distinction matters: a failed RIM can impair configuration or data communication without necessarily stopping the underlying protection channels. Replacing the correct I/O module is therefore usually far less costly than redesigning the communication interface around a different architecture.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• I/O variant mismatch: The 125768-01 is the RS232/RS422 version. Do not substitute the 135031-01 RIM I/O Module with Modem Interface simply because both belong to the 3500/20 family.
• Front/rear card pairing: The complete rack interface uses a front RIM assembly and a rear I/O assembly. Confirm that the installed front card is compatible with the supplied 125768-01, particularly the existing 125744-02 Standard RIM configuration.

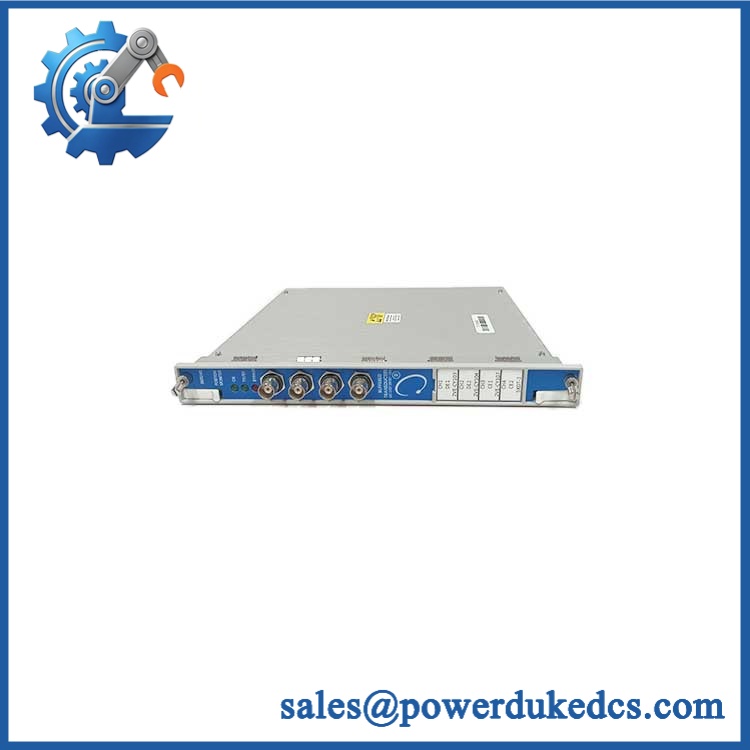

Bently Nevada 3500/20 125768-01

Module 5: Quality Assurance & Testing SOP

The module should receive both physical inspection and communications testing before shipment.

• Incoming traceability: Record Bently Nevada markings, complete 125768-01 part number, revision, serial information, and available date-code details.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, connectors, terminal interfaces, component population, solder quality, and evidence of unauthorized repair.
• Mechanical inspection: Check card-edge connectors, mounting hardware, rear I/O construction, housing condition, and rack mating surfaces.
• Power-on self-test (POST): Install in an approved 3500/20 test rack and verify normal startup and applicable status indications.
• Supply verification: Confirm rack power conditions and check for abnormal current draw or temperature rise.
• Establish communication through the applicable serial interface and verify stable data transmission.
• RS422 test: Verify differential serial communication and confirm stable transmit/receive operation where the test fixture supports it.
• Rack-interface test: Confirm communication between the RIM and representative 3500 rack hardware.
• Configuration test: Verify that the rack can be accessed through the approved configuration interface.
• Diagnostic verification: Check for communication errors, persistent rack-interface faults, or abnormal status indications.
• Cable/interface inspection: Verify connector pinout and electrical continuity before connecting external equipment.
• Extended operation: Maintain serial communication continuously and monitor link stability and module temperature.
• Final QC release: Record part number, revision, serial information, communication-test results, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 3500/20 125768-01 genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier listings advertise 125768-01 as available, with listings showing new-condition stock and typical shipping windows of approximately 7–10 business days. Actual warehouse quantity should still be confirmed before PO release. For an emergency requirement, request physical stock confirmation, exact part-number verification, current photographs, and the same-day dispatch cutoff.

2. How do you guarantee the condition and authenticity of this obsolete or surplus RIM I/O module?

Verification should start with the complete 125768-01 identification and physical inspection of PCB markings, connectors, terminal interfaces, and components. Functional QA should then include controlled power-up, / communication testing, and 3500/20 rack integration. Photographs, serial information, and test results should be retained as part of the MRO record.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

The primary concern is RIM firmware and interface compatibility, not a generic software installation. The 3500/20 documentation identifies firmware memory components for the RIM and distinguishes standard and TMR RIM configurations. Engineering should verify the installed front RIM part number, revision, firmware level, and external communication requirements before approving the replacement.

4. Can the 125768-01 replace the installed RIM I/O module without hardware modification?

Yes, for an exact 125768-01 replacement in a compatible 3500/20 configuration. The existing front RIM and rear I/O arrangement should be checked before installation. Communication wiring and external serial-interface settings must also be verified after the replacement.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 3500/20 125768-01, exact condition, revision, / interface configuration, test status, warranty period, and return procedure. Warranty coverage should address DOA and verified communication or hardware failure while excluding damage caused by incorrect wiring, unsuitable rack power, ESD, external serial-interface faults, or unauthorized modification.
