Bently Nevada 3500/22M 138607-01 | Transient Data Interface Module

• Brand: Bently Nevada
• Full Model Number: 3500/22M 138607-01 01AB
• Lifecycle Status: Legacy / Replacement Available
• Core Function: Standard Transient Data Interface for 3500 Machinery Protection System
• Top 3 Technical Specs: 3500/22M TDI; Standard configuration; Ethernet host communication with USB/serial configuration interface
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 3500/22M 138607-01 can leave the 3500 rack without its normal rack-interface and transient-data collection path. The TDI combines the rack-interface function with data-collection capability, communicating with M-series monitors such as the 3500/40M and 3500/42M while transferring steady-state and transient waveform data to host software. The 138607-01 is identified as the Standard Transient Data Interface configuration. The additional 01AB marking should be treated as a revision or hardware identifier and verified against the physical nameplate before procurement.

For an installed 3500 system, replacing the failed TDI is usually a much lower-TCO action than redesigning the rack communications and data-acquisition layer. Existing monitor modules, rack wiring, host connections, and monitoring applications can remain in service when the replacement configuration is correctly matched. The TDI also provides the path for configuration and data transfer, so getting the rack operational quickly can prevent a wider diagnostic-data gap during an outage. —Published replacement information indicates that newer 3500/22M hardware is available, but the replacement should be checked for interface, firmware, configuration, and host-software compatibility before the PO is released.

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: With a tested spare already available on-site, plan approximately 1–3 hours for module replacement, connector inspection, rack recognition, configuration verification, and communications checkout. A newly sourced unit may require 1–5 business days for inspection and expedited transportation, depending on destination and carrier cutoff.

Field Traps — Watch Out

• Revision 01AB: Do not assume 01AB is interchangeable with every revision of 138607-01. Record the complete marking from the physical module and compare it with the installed configuration.
• I/O-module dependency: The TDI works with a corresponding rear I/O assembly. Published 3500/22M information identifies separate Ethernet and fiber-optic I/O configurations, so the interface type must be checked before substitution.
• Host-software compatibility: The TDI interfaces with 3500 configuration and condition-monitoring software. Firmware and software compatibility should be confirmed before commissioning.
• Rack position: The TDI occupies the RIM position adjacent to the power supplies. Incorrect rack placement can prevent proper operation.

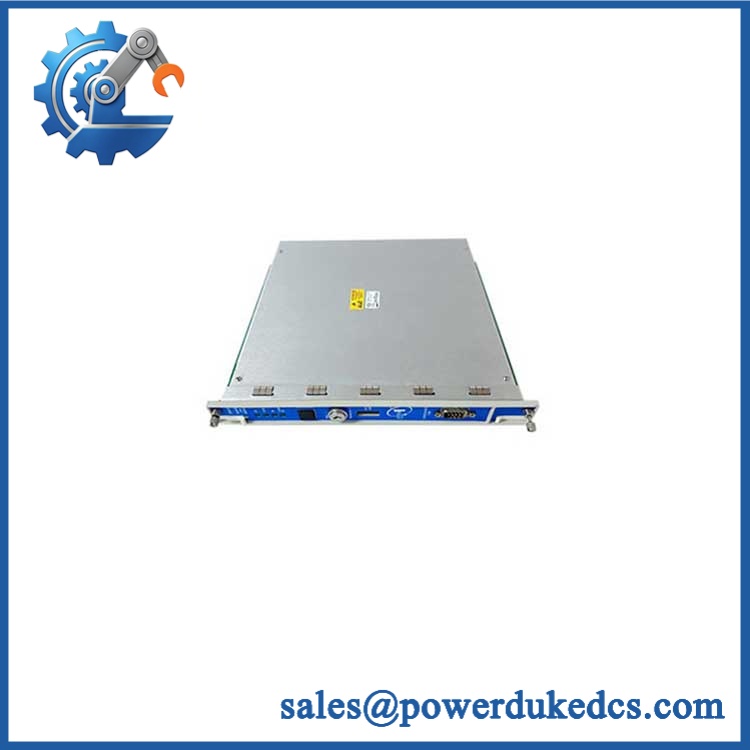

Bently Nevada 3500/22M 138607-01

Module 5: Quality Assurance & Testing SOP

A transient-data interface should be tested at the rack and communications level. A successful power-up alone does not establish acceptance.

• Part-number verification: Confirm 3500/22M, 138607-01, and the complete 01AB revision marking.
• OEM anti-counterfeit visual inspection: Inspect Bently Nevada labels, PCB identifiers, connector construction, hardware markings, and evidence of unauthorized repair.
• Physical condition inspection: Check the PCB, edge connector, front-panel interface, mounting hardware, and rear I/O connection for corrosion, impact, contamination, or thermal damage.
• Revision verification: Record the complete hardware revision and compare it with the approved replacement specification.
• I/O configuration check: Confirm the installed rear I/O module and verify Ethernet, fiber, serial, or other interface configuration as applicable.
• Continuity testing: Verify applicable power, ground, and accessible signal paths before energization.
• Power-on self-test (POST): Install the TDI in an appropriate 3500 rack test setup and verify startup behavior and module recognition.
• Status indication check: Verify the module’s normal operating and fault indications during startup and steady-state operation.
• Rack communication test: Confirm communication between the TDI and the installed 3500 monitor modules.
• Ethernet communication test: Verify the applicable Ethernet interface and establish communication with the approved host test system.
• USB/serial configuration-port test: Confirm the configuration interface operates correctly using the appropriate cable and software environment. Published inventory references identify USB-B and serial configuration interfaces for this family.
• Transient-data acquisition test: Apply representative steady-state and transient signals through a compatible monitor and verify that waveform data is collected correctly.
• Static-data verification: Confirm that static monitor data is correctly transferred to the host system.
• Data-transfer integrity test: Monitor communication for packet loss, dropped sessions, or intermittent connection faults.
• I/O load testing: Exercise representative rack communication and data-transfer loads while monitoring module temperature and operating stability.
• Configuration test: Verify rack node/configuration information can be read and written through the approved configuration environment.
• Extended observation: Maintain the TDI under continuous communication and data-acquisition load to identify intermittent interface faults.
• Final QC release: Record full part number, revision, firmware information, I/O configuration, communication-test results, photographs, condition grade, test date, and QC authorization.

Published technical references identify the 3500/22M as the interface between the 3500 monitoring rack and compatible condition-monitoring/configuration software, with continuous collection of steady-state and transient data from M-series monitors.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/22M 138607-01 01AB genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 138607-01 and 01AB markings before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier collection time, and destination. Same-day shipment should only be confirmed after the actual module has been identified and released.

Q2. How do you guarantee the condition and authenticity of an obsolete or surplus 138607-01?
Require exact part-number and revision verification, OEM visual inspection, PCB and connector inspection, controlled power-up, rack recognition testing, Ethernet/serial communication checks, and transient-data acquisition testing. Actual photographs of the module and identification markings should be retained with the procurement record.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. Record the installed firmware revision, rack configuration, rear I/O type, and host-software version before replacement. A later or replacement TDI may require configuration review even when the base 138607-01 number appears compatible. Published supplier documentation also identifies newer replacement hardware within the 3500/22 family.

Q4. Can another 3500/22M TDI replace the 138607-01 01AB?
Not automatically. Confirm the complete hardware revision, I/O configuration, rack position, communications interface, and required host software. The standard TDI configuration must not be confused with TMR variants or different rear-I/O arrangements.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, communication-function coverage, transient-data acquisition coverage, firmware/configuration conformity, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual rack-interface and communications test record and define whether commissioning-stage failures are covered.
