Bently Nevada 3500/22M 138607-01AE | Transient Data Interface Module

Description

• Brand: Bently Nevada
• Full Model Number: 3500/22M 138607-01AE
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: Transient Data Interface for 3500 machinery protection systems
• Top 3 Technical Specs: 3500/22M platform; transient and steady-state data collection; rack Ethernet/data interface
• Stock & Condition: New surplus / tested refurbished — verify complete 3500/22M assembly and I/O configuration before PO

The 138607-01AE is the PCB assembly designation associated with the Bently Nevada 3500/22M Transient Data Interface (TDI). Available technical records identify 138607-01AE as the TDI hardware and distinguish it from the associated rear I/O assembly. Current replacement references also show newer identifiers for later production versions, making the exact hardware revision important when sourcing this legacy unit.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/22M can cut off access to transient waveform and steady-state data from an otherwise operational 3500 machinery-protection rack. That creates a practical maintenance problem: protection functions may remain active, yet the plant can lose the data path needed for detailed machinery diagnostics, trending, and event analysis. The 138607-01AE is the older TDI hardware associated with the 3500/22M architecture, so an exact spare can restore the established rack data interface without redesigning the complete monitoring system.

The TCO case is strongest when the installed 3500 rack, monitor modules, sensors, and plant communication architecture remain serviceable. Reusing those assets avoids cabinet changes, new communication mapping, engineering drawings, software configuration, and a wider commissioning scope. A migration to a later 3500/22M hardware revision may be technically possible, but it should not be treated as an automatic one-for-one board exchange — revision, rear I/O hardware, firmware, and the host software environment all need review. For emergency MRO requirements, a tested legacy spare can be the lower-cost path when downtime is more expensive than the hardware itself.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Revision mismatch: The 138607-01AE identifier represents a specific board assembly revision. Later 3500/22M production hardware can use different identifiers. Do not approve a substitute solely because the seller states that it is “3500/22M compatible.” Match the physical board marking and associated I/O hardware against the installed assembly.

TDI versus I/O confusion: The 138607-01AE designation identifies the TDI board itself. The rear communication/I/O assembly is a separate component. One current technical listing identifies 146031-01 as the 10BASE-T/100BASE-TX I/O module used with the 3500/22M, while older equipment references also cross-reference 138607-01AE to the TDI assembly. Verify that the quotation covers the exact component required, not only a generic 3500/22M description.

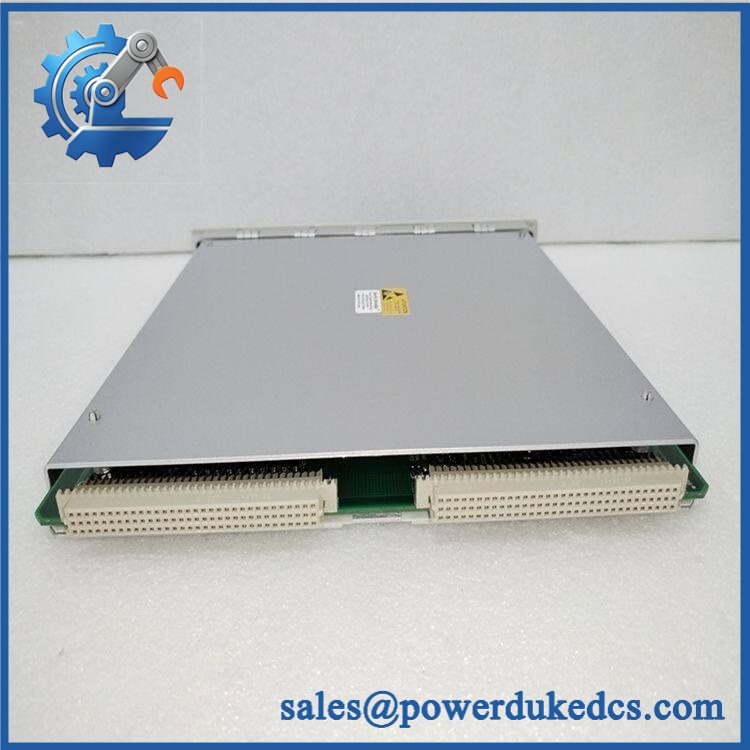

Bently Nevada 3500/22M 138607-01AE

Module 5: Quality Assurance & Testing SOP

The 138607-01AE should undergo controlled inspection and functional validation before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, revision, and date-code markings.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, connectors, edge contacts, mounting hardware, and associated interfaces.
• Check for corrosion, contamination, cracked components, bent contacts, thermal damage, or unauthorized rework.

2. Configuration verification

• Confirm 3500/22M 138607-01AE identification.
• Record all visible hardware and artwork revisions.
• Verify the associated rear I/O configuration.
• Confirm intended use in the customer’s 3500 rack.
• Photograph front, rear, and identification markings for traceability.

3. Electrical inspection

• Inspect power and connector paths for damage.
• Perform applicable continuity checks.
• Verify grounding continuity where required.
• Perform insulation-resistance testing under a controlled procedure where applicable.
• Check connector retention and board mechanical integrity.

4. Power-on and communication testing

• Install the board in a compatible 3500/22M test rack.
• Apply controlled rack power.
• Perform power-on self-test (POST).
• Check applicable ERR/RUN and status indications.
• Confirm successful TDI initialization.
• Verify communication with the associated rear I/O hardware.
• Confirm stable Ethernet/data-interface operation where applicable.

5. Data and system testing

• Connect representative 3500 monitor modules to the test rack.
• Verify acquisition of steady-state data.
• Generate controlled transient events where the test platform supports them.
• Confirm waveform/event data acquisition and transfer.
• Verify expected data delivery to the approved host software environment.
• Check for dropped packets, communication resets, or intermittent interface faults.
• Perform I/O load testing on applicable external interface circuits.
• Run an extended operational test before release.

6. Final QC

• Record startup results, communication status, hardware revision, serial number, and test date.
• Document the associated I/O configuration.
• Generate a unit-specific Test Report.
• Package with ESD protection and mechanical cushioning.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/22M 138607-01AE genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual board, including the 138607-01AE marking, revision, condition, and associated I/O requirement. Emergency dispatch depends on QC completion, payment/order clearance, warehouse processing, and the courier cutoff.

How do you guarantee the condition and authenticity of surplus 138607-01AE units?

Require complete part-number and revision verification, PCB inspection, connector inspection, controlled rack power-up, TDI initialization testing, communication verification, steady-state data acquisition, and transient-data testing where supported. The unit-specific Test Report should record the actual serial number and test results.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. The 3500/22M is an intelligent interface module, so the installed firmware, rack configuration, communication setup, and host software environment should be documented before replacement. Do not assume that a later 3500/22M revision can replace an older 138607-01AE assembly without compatibility verification.

Can I substitute a newer 3500/22M module for 138607-01AE?

Not automatically. Current equipment references show newer 3500/22M identifiers, including 288055-01, replacing older 138607-01 hardware in some applications. That does not establish universal interchangeability. Engineering should verify the complete rack configuration, rear I/O module, firmware, and software compatibility before approving the change.

What warranty and return terms should procurement require?

Specify 3500/22M 138607-01AE, serial number, hardware revision, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include successful rack startup, TDI initialization, communication testing, and verification of representative steady-state and transient data transfer.
