Bently Nevada 3500/25 149369-01 | Enhanced Keyphasor Module

• Brand: Bently Nevada
• Full Model Number: 3500/25 149369-01
• Lifecycle Status: Active / Current Replacement
• Core Function: Enhanced Keyphasor signal processing for 3500 Machinery Protection System
• Top 3 Technical Specs: Half-height module; 2 channels; Proximity probe or magnetic pickup input with digital Keyphasor output
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Keyphasor module can disrupt shaft-speed and phase-reference data across an otherwise serviceable 3500 rack. The Bently Nevada 3500/25 149369-01 is the Enhanced Keyphasor Module, a half-height, two-channel module that receives signals from proximity probes or magnetic pickups and converts them into digital Keyphasor signals for the 3500 monitor modules. The 3500 system supports up to four Keyphasor inputs in a normal configuration and up to eight in a paired configuration. Bently Nevada documentation also identifies 149369-01 as the direct replacement for the earlier 125792-01 Keyphasor module, with the same mechanical interface for legacy installations.

For a running 3500 installation, replacing the failed main Keyphasor module is usually a much lower-TCO decision than redesigning the speed and phase-reference architecture. Existing monitor modules, rack wiring, and established machinery-monitoring logic can remain in service when the replacement is correctly matched. The enhanced module also adds digital signal-processing functions while retaining downward compatibility with existing Keyphasor modules. —The important procurement distinction is that 149369-01 is the main Enhanced Keyphasor Module, not necessarily the complete I/O assembly; the required Keyphasor I/O module must be matched separately according to whether the system uses internal, external, isolated, or barrier terminations.

Module 4: Compatibility & Replacement Matrix

Bently Nevada documentation states that 149369-01 maintains form, fit, and function compatibility with existing Keyphasor modules, while the I/O portion remains configuration-specific.

Estimated switch cost/time: With a verified spare already at the facility, plan approximately 1–3 hours for module replacement, rack recognition, I/O verification, configuration review, and Keyphasor signal checkout. A sourced replacement may require 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• Main module vs. I/O module: 149369-01 is the Enhanced Keyphasor main module. The associated I/O module has its own part number, such as 125800-01, 126648-01, 125800-02, or 126648-02. Confirm the complete rack assembly before purchasing.
• TMR configuration: For applications requiring Keyphasor input in a TMR architecture, Bently Nevada specifies two Keyphasor modules operating in parallel for primary and secondary Keyphasor signals.
• Sensor type: Proximity probes and magnetic pickups are supported, but isolated and non-isolated I/O configurations are not interchangeable without reviewing the sensor and termination design.
• Firmware/configuration: Enhanced processing functions can depend on the configuration software and firmware revision. Record the existing revision and configuration before replacement.

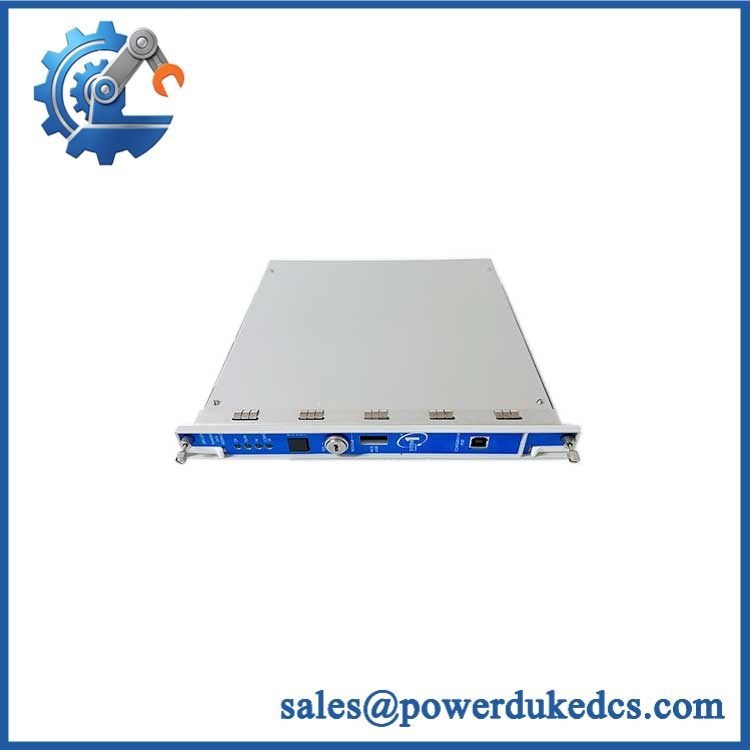

Bently Nevada 3500/25 149369-01

Module 5: Quality Assurance & Testing SOP

A Keyphasor module should be qualified as part of the speed-and-phase measurement chain. Power-up alone is not enough for release.

• Part-number verification: Confirm 3500/25 and 149369-01, revision, serial number, and Bently Nevada identification.
• OEM anti-counterfeit visual inspection: Inspect manufacturer labels, PCB identifiers, front-panel markings, connectors, module construction, and evidence of unauthorized rework.
• Physical condition inspection: Check the card edge connector, front-panel assembly, mounting hardware, coaxial interfaces, and PCB surfaces for corrosion, contamination, cracks, or thermal damage.
• I/O configuration verification: Confirm the installed I/O module part number and whether the system uses internal, external, isolated, or barrier termination.
• Continuity testing: Verify applicable power, ground, and signal paths before energization.
• Power-on self-test (POST): Install the module in a compatible 3500/25 test rack and verify startup behavior and module recognition.
• Status-indication check: Verify the expected OK and TX/RX indications during startup and communication testing.
• Keyphasor channel test: Apply calibrated simulated proximity-probe or magnetic-pickup signals independently to each active channel.
• Digital output verification: Confirm correct conditioned digital Keyphasor output to the 3500 monitor modules.
• Speed-reference test: Apply a known pulse frequency and verify corresponding shaft-speed interpretation.
• Phase-reference test: Use a controlled reference signal to verify correct timing and phase-related data behavior.
• Processed-signal test: Where the application uses the enhanced processing feature, verify configured input-to-output event processing and confirm the expected output relationship.
• TMR test: Where applicable, verify primary and secondary Keyphasor signal paths in the redundant configuration.
• I/O load testing: Apply representative signal activity and monitor communication stability, signal integrity, and module temperature.
• Configuration-port test: Verify that the configuration environment can identify and communicate with the module as required.
• Extended observation: Maintain representative pulse inputs for an extended period to expose intermittent signal loss, false triggering, or communication faults.
• Final QC release: Record part number, revision, firmware information, I/O configuration, channel-test results, photographs, condition grade, test date, and QC authorization.

The Enhanced Keyphasor Module uses digital signal processing and can generate processed or non-processed Keyphasor outputs depending on the configuration. This makes functional signal testing important when the spare is being qualified for a production machine.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/25 149369-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 149369-01 part number and revision before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup time, and destination. Same-day shipment should only be confirmed after the actual module has been physically identified and released.

Q2. How do you guarantee the condition and authenticity of a 149369-01?
Require exact part-number verification, OEM visual inspection, PCB and connector inspection, controlled power-up, Keyphasor pulse testing, status-indication testing, and documented QC results. For surplus or refurbished stock, retain photographs of the actual module and its identification markings.

Q3. Can 149369-01 replace the older 125792-01 directly?
Yes. Bently Nevada documentation states that 149369-01 completely replaces 125792-01 and maintains downward compatibility in form, fit, and function with the earlier Keyphasor module.

Q4. Does 149369-01 include the Keyphasor I/O module?
Not as a generic assumption. 149369-01 is the Enhanced Keyphasor main module, while the I/O assembly is separately identified. The installed system must be checked for the correct internal, external, isolated, or barrier I/O configuration.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, Keyphasor signal-performance coverage, configuration conformity, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual functional test record and define whether failures discovered during commissioning are covered.
