Description
- Brand: Bently Nevada
- Full Model Number: 3500/32 125712-01
- Lifecycle Status: Legacy / Obsolescence-risk
- Core Function: Four-channel relay module for the 3500 Machinery Protection System
- Top 3 Technical Specs: 4 relay channels | Full-height rack slot | SPDT relay contacts configurable for alarm and trip functions
- Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff
Module 3: Obsolescence & Supply Chain Deep Dive
A failed relay output path can leave a 3500 rack capable of monitoring machinery while external alarm, interlock, or shutdown circuits no longer receive the required contact signals. Bently Nevada 3500/32 125712-01 is the spare four-channel relay module used within the 3500 Machinery Protection System. Bently Nevada documentation identifies 125712-01 as the spare 4-channel relay module, with the associated 125720-01 serving as the rear 4-channel relay I/O module. The module occupies one full-height front rack slot, while the associated I/O assembly occupies the corresponding rear slot.
For an installed 3500 rack, replacing the affected relay hardware can avoid a much larger protection-system modification. Existing alarm logic, monitor modules, field wiring, and rack configuration can remain in service when the exact relay configuration is matched. The manufacturer’s legacy documentation identifies 125712-01 as the front relay module and 125720-01 as its corresponding rear I/O module, so procurement should treat the front and rear assemblies as a matched interface rather than assuming the front card alone represents the complete field connection.(For older 3500 installations, physically verified legacy inventory can be especially valuable when the replacement is needed inside a scheduled turbine or compressor outage.)
Module 4: Compatibility & Replacement Matrix
| Purchase Review Item | Engineering Guidance |
|---|---|
| Replacement Classification | Drop-in Replacement — conditional |
| Hardware Modification | None expected for an exact 3500/32 configuration |
| Primary System | Bently Nevada 3500 Machinery Protection System |
| Module Type | Four-Channel Relay Module |
| Front Module | 125712-01 |
| Associated Rear I/O | 125720-01 |
| Rack Requirement | 1 full-height front slot + corresponding rear I/O slot |
| Relay Configuration | Four independent relay channels |
| Typical Switch Time | ~2–6 labor hours including trip/alarm verification |
| Typical Engineering Cost | Approximately 300–1,200 excluding outage and field travel |
| Recommended Migration Path | Record relay logic → verify front/rear part numbers → document wiring → replace → test every relay channel → verify trip/interlock circuits |
The legacy 3500/32 documentation specifies 125712-01 as the spare 4-channel relay module and 125720-01 as the spare 4-channel relay I/O module. The front module occupies one full-height slot, while field termination occurs through the rear I/O assembly.
Field Traps — Watch Out
- Front/rear assembly mismatch: Confirm whether the installed rack uses 125712-01 + 125720-01. Current product references specifically describe this as the complete 3500/32 relay arrangement.
- Relay logic and contact mode: Verify the existing normally energized/de-energized configuration before removal. Relay behavior is part of the machinery shutdown philosophy, so an incorrect switch configuration can create either a nuisance trip or a failure to trip.

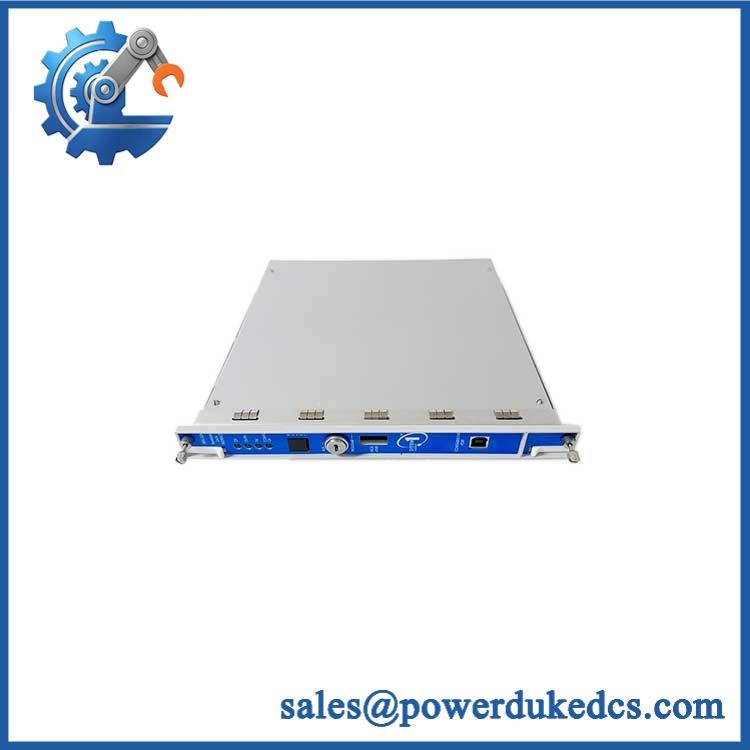

Bently Nevada 3500/32 125712-01
Module 5: Quality Assurance & Testing SOP
A strict pre-shipment inspection for Bently Nevada 3500/32 125712-01 should include:
- Identity verification: Confirm complete 125712-01 part number, 3500/32 designation, serial information, faceplate markings, connectors, and hardware revision.
- OEM anti-counterfeit visual inspection: Examine Bently Nevada markings, PCB identifiers, labels, relay components, connectors, solder quality, switches, and evidence of unauthorized repair.
- Mechanical inspection: Check the housing, card edge, retaining hardware, front-panel indicators, and connector interfaces for corrosion, cracks, contamination, or bent contacts.
- Power-on self-test (POST): Install the module in an approved 3500 test rack and verify normal startup and module-status indication.
- LED verification: Confirm normal OK, communication/status, and individual channel indications under controlled test conditions.
- Relay channel test: Exercise all four relay channels independently and confirm expected contact-state changes.
- Contact continuity test: Verify normally open and normally closed contact paths through the applicable rear I/O assembly.
- Logic-mode test: Verify the relay response under the configured normally energized/de-energized condition.
- Alarm simulation: Generate controlled alarm states from representative 3500 monitor inputs and verify corresponding relay activation.
- Trip simulation: Exercise representative Danger/trip conditions and confirm the correct relay response without bypassing required protection interlocks.
- I/O load testing: Apply representative controlled loads to each applicable relay output and monitor contact behavior for excessive heating or instability.
- Rear I/O verification: Where supplied, inspect and test the matching 125720-01 interface module and terminal connections.
- Extended operation: Cycle relay outputs repeatedly under controlled conditions and check for intermittent contacts, sticking, or inconsistent state transitions.
- Final QC: Record serial number, relay-channel results, contact-state measurements, test configuration, condition grade, photographs, and packaging approval.
The historical 3500/32 documentation specifically identifies LEDs for relay-channel status and terminals for external relay-contact connections. Accordingly, a credible QA process should test the actual relay switching path, not merely confirm that the front card powers up.
Module 6: Procurement & Lifecycle FAQ
Is Bently Nevada 3500/32 125712-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 125712-01 marking before PO release. Current supplier listings show variable availability, including listings marked in stock, so emergency dispatch should be based on physically verified inventory rather than catalog status.
How do you verify the condition and authenticity of this legacy relay module?
Require complete part-number and serial verification, OEM marking inspection, PCB and connector examination, power-up diagnostics, all-four-channel relay testing, contact continuity testing, alarm simulation, and controlled load testing. The condition should be explicitly documented as New Surplus or Tested Refurbished.
Does 125712-01 include the complete 3500/32 field relay assembly?
Not necessarily. 125712-01 is the front 4-channel relay module, while 125720-01 is the associated rear relay I/O module used for field termination. Procurement should verify whether the installed system requires both components.
Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Firmware is not normally the primary concern for this relay module. The critical checks are the exact 3500/32 configuration, corresponding rear I/O module, relay contact arrangement, normally energized/de-energized settings, field wiring, and existing alarm/trip logic.
What warranty and return terms should procurement require?
The quotation should specify the exact 125712-01 part number, condition grade, serial traceability, relay-channel test scope, warranty period, DOA coverage, and return authorization procedure. For a protection relay module, the acceptance record should include individual contact and trip-function test results.
