Bently Nevada 3500/32 125720-01 | Four Channel Relay Module

• Brand: Bently Nevada
• Full Model Number: 3500/32 125720-01
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: Four-channel relay output module for the 3500 machinery protection system
• Top 3 Technical Specs: 4-channel relay outputs; programmable NO/NC operation; alarm/event-driven contact control
• Stock & Condition: New surplus / tested refurbished — verify relay configuration and host rack compatibility before PO

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/32 125720-01 can remove hardwired alarm or shutdown interfaces from multiple machinery-monitoring channels while the associated 3500 monitor modules continue operating. The 3500/32 is a four-channel relay module designed to provide relay outputs driven by alarm conditions and other configured events. For plants that still depend on hardwired annunciation, PLC inputs, or protective interlocks, losing the relay interface can create a much larger operational problem than the module’s size suggests.

From a TCO standpoint, replacing the exact relay module can preserve existing alarm wiring, PLC/DCS inputs, shutdown logic, panel terminals, and commissioned protection settings. That is usually less expensive than redesigning the output architecture around a newer monitoring platform. The key procurement requirement is configuration matching. The 125720-01 should be checked against the installed 3500/32 module, relay logic, contact wiring, and rack configuration before approval (especially where relay contacts feed a trip circuit).

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Relay logic mismatch: The 3500/32 uses configurable relay contacts, so the engineering team must record whether each installed output is being used as normally energized or normally de-energized logic. A replacement with incorrect configuration can produce an apparently healthy relay module while reversing the intended alarm behavior.

Trip-circuit wiring: Never validate the module by casually forcing a plant trip circuit. Confirm the existing PLC/DCS/interlock wiring, relay contact designation, and testing isolation procedure first. A bench test should reproduce the required relay behavior before the module is placed back into service.

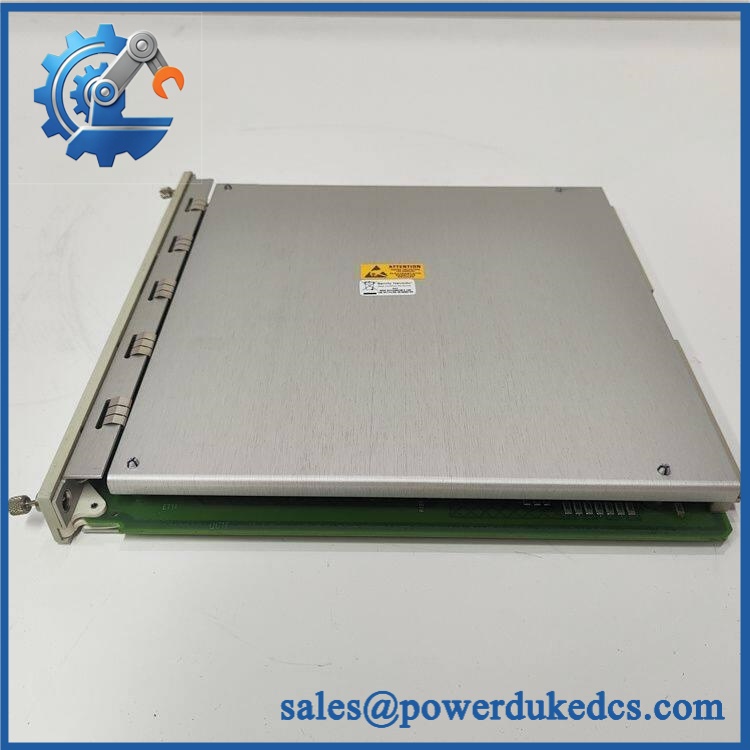

Bently Nevada 3500/32 125720-01

Module 5: Quality Assurance & Testing SOP

The 125720-01 should undergo relay-level electrical testing and controlled rack integration testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and revision/date code.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, relay components, connectors, terminals, mounting hardware, and enclosure.
• Check for corrosion, contamination, cracked components, damaged terminals, overheating, or unauthorized repair.

2. Configuration verification

• Confirm 3500/32 125720-01 identification.
• Record hardware and revision markings.
• Verify the installed relay-output arrangement.
• Document terminal assignments and NO/NC contact usage.
• Photograph identification labels and terminal areas for traceability.

3. Power-on testing

• Install the module in a compatible 3500 test rack.
• Apply controlled rack power.
• Perform power-on self-test (POST) at the system level.
• Check applicable status indications and diagnostic messages.
• Confirm the module initializes without hardware faults.

4. Relay and I/O testing

• Generate controlled alarm conditions from representative 3500 monitor inputs.
• Verify each of the four relay channels changes state as configured.
• Measure relay contact continuity and isolation.
• Verify NO/NC behavior against the documented configuration.
• Test relay reset behavior after the initiating alarm is cleared.
• Exercise representative control outputs using appropriate test loads.
• Perform I/O load testing on relay contacts within the approved contact-rating limits.
• Run repeated switching cycles to identify intermittent contact operation.

5. Final QC

• Record relay state transitions, contact measurements, test load, serial number, and test date.
• Compare test results with the approved acceptance criteria.
• Generate a unit-specific Test Report.
• Confirm connector and terminal integrity.
• Package with ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/32 125720-01 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual serial-numbered module, including condition, revision, and test status. Emergency dispatch depends on QC completion, payment/order clearance, warehouse processing, and the courier pickup cutoff.

How do you guarantee the condition and authenticity of surplus 125720-01 units?

Require full part-number and serial-number verification, PCB and relay inspection, controlled rack power-up, all four relay-channel tests, contact continuity measurements, and a unit-specific Test Report. Actual photographs of the supplied module should be retained with the procurement record.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

The primary concern is configuration and relay logic, rather than firmware alone. Record the installed 3500 configuration, relay assignments, alarm sources, reset behavior, and NO/NC wiring before removing the module. After installation, repeat the functional alarm test before returning any associated trip circuit to service.

Can I substitute another 3500 relay module for 125720-01?

Do not approve substitution based solely on the 3500/32 family name. The replacement must match the required relay-channel configuration, contact arrangement, rack interface, and application logic. A module with different relay functionality can require control-wiring changes.

What warranty and return terms should procurement require?

Specify 3500/32 125720-01, serial number, tested condition, hardware revision, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include successful rack startup and verification of every relay channel under representative controlled alarm conditions.
