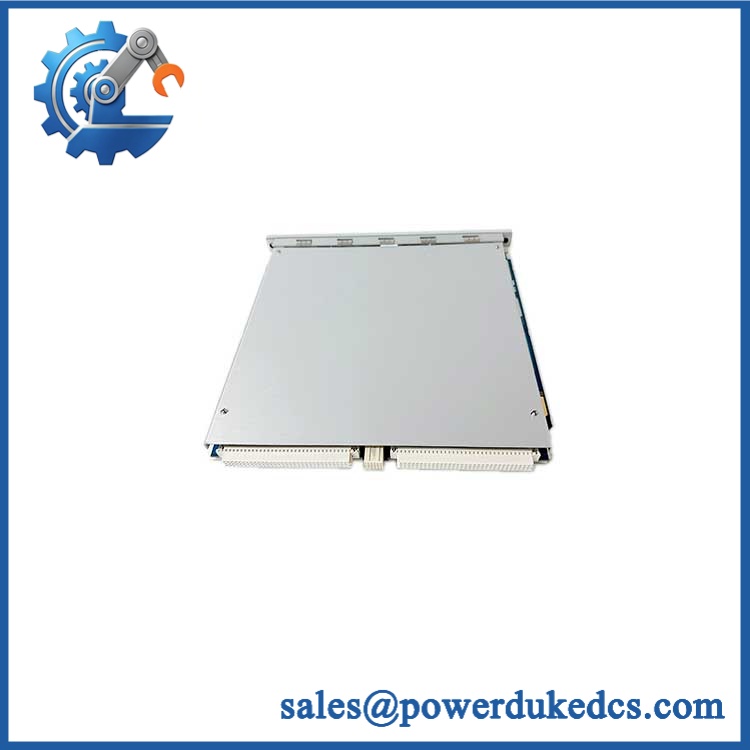

Bently Nevada 3500/40M 125680-01 | Proximitor I/O Module

• Brand: Bently Nevada
• Full Model Number: 3500/40M 125680-01
• Lifecycle Status: Current / Supported 3500 Series Spare
• Core Function: Proximitor I/O Module with Internal Terminations
• Top 3 Technical Specs: 4-channel 3500/40M interface; Internal terminations; Proximity-transducer signal interface
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 3500/40M 125680-01 can interrupt the signal path from proximity transducers to the machinery protection monitor, even when the main 3500/40M electronics remain serviceable. Bently Nevada identifies 125680-01 as the Proximitor I/O Module with Internal Terminations for the 3500/40M. The associated monitor accepts up to four proximity-transducer signals and can process measurements including radial vibration, thrust position, differential expansion, eccentricity, and REBAM. The exact I/O configuration therefore matters when restoring a running rack.

For an installed 3500/40M system, replacing the I/O module is normally far less expensive than changing the field interface or redesigning the protection channel. Existing sensors, monitor hardware, rack wiring, and configured alarm strategy can remain in service when the replacement is correctly matched. That limits engineering labor and outage exposure. —The principal procurement issue is termination type: Bently Nevada lists 125680-01 for internal terminations and 126615-01 for external terminations, so a similar-looking module should not be treated as equivalent without a wiring review.

Module 4: Compatibility & Replacement Matrix

Estimated switch cost/time: With a tested spare already staged at the facility, allow approximately 1–3 hours for controlled replacement, termination verification, channel checkout, and functional testing. A newly sourced unit may require 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• Internal vs. external termination: 125680-01 is the internal-termination version, while 126615-01 uses external terminations. The two should not be substituted without reviewing field wiring.
• Sensor compatibility: The 3500/40M accepts Bently Nevada proximity-transducer signals. Verify the installed probe system and channel assignment before commissioning.
• Barrier configuration: 135489-04 is the internal-barrier/internal-termination option. It is a different installation configuration and may be required for specific hazardous-area applications.
• Monitor versus I/O module: 125680-01 is the I/O assembly, not the complete 3500/40M monitor. The current Bently Nevada spare list separately identifies 176449-01 as the 3500/40M Proximitor Monitor.

Bently Nevada 3500/40M 125680-01

Module 5: Quality Assurance & Testing SOP

A proximity I/O assembly should be qualified as part of the complete measurement chain. A visual inspection alone is insufficient for machinery-protection inventory.

• Part-number verification: Confirm 3500/40M 125680-01, revision information, serial/traceability markings, and Bently Nevada identification.
• OEM anti-counterfeit visual inspection: Inspect manufacturer markings, PCB identifiers, connectors, terminal blocks, component placement, and evidence of unauthorized rework.
• Physical condition inspection: Check the enclosure, mounting hardware, terminal interfaces, connector contacts, and PCB surfaces for corrosion, contamination, cracks, or thermal damage.
• Termination inspection: Verify all internal termination points for bent contacts, oxidation, contamination, or mechanical damage.
• Continuity testing: Check applicable power, ground, and signal paths before energization.
• Power-on self-test (POST): Install the I/O module in a compatible 3500/40M test configuration and verify normal rack startup and module recognition.
• Channel testing: Apply controlled proximity-transducer simulator signals to all four applicable channels.
• Signal-path verification: Confirm each channel transfers the simulated transducer signal correctly through the internal termination assembly to the 3500/40M monitor.
• Measurement verification: Check representative radial-vibration, thrust-position, differential-expansion, eccentricity, or REBAM configurations as applicable to the intended installation.
• Buffered-output verification: Where supported by the test setup, verify stable signal transmission from the associated monitor channels.
• Alarm-path testing: Simulate representative measurement changes and verify the associated monitor responds according to the configured setpoints.
• I/O load testing: Apply representative signal conditions while monitoring channel stability, noise, and module temperature.
• Connector retention test: Confirm secure mechanical engagement of the internal I/O connections.
• Extended observation: Maintain representative signals for an extended period to identify intermittent channel or termination faults.
• Final QC release: Record part number, revision, channel results, photographs, condition grade, test date, and QC authorization.

Bently Nevada’s current 3500/40M documentation lists 125680-01 as the internal-termination Proximitor I/O Module and identifies 126615-01 as the external-termination version. That configuration distinction should appear directly on the PO and receiving checklist.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/40M 125680-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 125680-01 part number before the PO is accepted. Current supplier listings may show stock, but the actual unit should still be physically identified and cleared through QA before an emergency-shipping commitment is made.

Q2. How do you guarantee the condition and authenticity of a 125680-01?
Require exact part-number verification, OEM visual inspection, terminal and connector inspection, continuity checks, controlled four-channel testing, alarm-path verification, and documented QC results. Photographs of the actual module and identification markings should remain with the procurement record.

Q3. Can 126615-01 replace 125680-01?
Not as a routine drop-in substitution. 125680-01 uses internal terminations, while 126615-01 uses external terminations. The replacement therefore needs a field-wiring and installation review.

Q4. Does 125680-01 require firmware compatibility checks?
The I/O module itself is not normally the component receiving a firmware flash. Engineering verification should instead focus on the associated 3500/40M monitor, installed configuration, sensor type, channel assignment, I/O architecture, and rack software configuration.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, channel-performance coverage, termination conformity, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual four-channel test record and define whether failures discovered during commissioning are covered.
