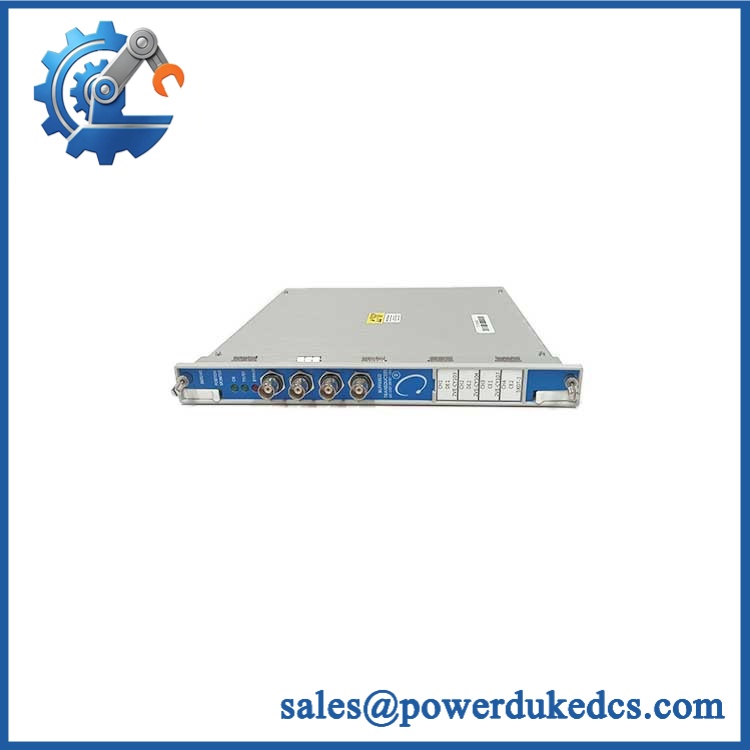

Bently Nevada 3500/40M 140734-01 | Four Channel Proximitor Monitor

• Brand: Bently Nevada
• Full Model Number: 3500/40M 140734-01
• Lifecycle Status: Active / Lifecycle verification recommended
• Core Function: Four-channel Proximitor Monitor for machinery vibration and position protection
• Top 3 Technical Specs: 4 proximity-transducer inputs | Radial vibration, thrust position, differential expansion, eccentricity and REBAM | 3500 Rack Configuration Software programmable
• Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

When a 3500 rack loses its Proximitor Monitor, the machinery protection function can be compromised even though the rack and field sensors remain installed. Bently Nevada 3500/40M 140734-01 is a four-channel monitor that accepts Bently Nevada proximity-transducer signals, conditions them for vibration and position measurements, and compares the resulting values with user-programmable alarm setpoints. Supported measurement functions include radial vibration, thrust position, differential expansion, eccentricity, and REBAM.

For an existing 3500 installation, replacing the same 140734-01 monitor can avoid a wider protection-system redesign. The installed 3300 XL transducers, rack, relay logic, field wiring, and configured alarm architecture can remain in place when the hardware and configuration are correctly matched. The TCO advantage comes from avoiding sensor replacement, panel modification, engineering changes, machine testing, and extended outage time. (For a shutdown-critical spare, verified physical inventory can be more valuable than a nominal catalog lead time.) The manufacturer identifies the 3500/40M as part of the 3500 machinery protection system and confirms that its channels are configured in pairs, with channels 1–2 and 3–4 able to perform separate or identical measurement functions.

Module 4: Compatibility & Replacement Matrix

Bently Nevada specifies that the 3500/40M accepts 1 to 4 proximity-transducer signals and that channels are programmed in pairs. Each active channel can generate configured static values, with Alert and Danger setpoints available according to the programmed measurement function.

Field Traps — Watch Out

• Channel-function mismatch: Do not assume that replacing the card automatically restores the original application. Record whether channels 1–2 and 3–4 are configured for radial vibration, thrust position, differential expansion, eccentricity, or REBAM, then reproduce those settings after installation.
• Probe/interface mismatch: The 3500/40M is designed to accept Bently Nevada proximity-transducer inputs. Verify the installed transducer family, signal characteristics, wiring, and channel assignment before energization. The manufacturer specifically identifies 3300 XL Proximitor and seismic transducers within the 3500 monitoring architecture.

Bently Nevada 3500/40M 140734-01

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 3500/40M 140734-01 should include:

• Identity verification: Confirm complete 140734-01 part number, 3500/40M designation, serial information, faceplate markings, connectors, and revision information.
• OEM anti-counterfeit visual inspection: Examine Bently Nevada labels, PCB identification, connectors, component placement, solder quality, and evidence of unauthorized repair.
• Mechanical inspection: Check the housing, card edge, retaining hardware, front-panel connectors, and PCB surfaces for corrosion, cracks, contamination, or bent contacts.
• Power-on self-test (POST): Install the monitor in an approved 3500 test rack and verify normal startup behavior.
• LED verification: Check OK, TX/RX, and Bypass indicators under normal and simulated operating states. The 3500/40M documentation defines these indicators as operational, communication, and bypass-status indicators.
• Input-channel test: Apply calibrated proximity-transducer signals independently to all four channels.
• Measurement test: Verify representative radial-vibration, thrust-position, differential-expansion, eccentricity, or REBAM functions according to the configured application.
• Alarm test: Simulate configured Alert and Danger conditions and verify correct alarm-state transitions.
• Buffered-output test: Verify applicable transducer outputs and signal integrity for each channel.
• 4–20 mA test: Where configured, verify recorder-output scaling and response against known input values.
• I/O load testing: Exercise applicable output paths under controlled representative load and verify stable operation.
• Rack communication test: Confirm communication between the monitor and other 3500 modules through the rack backplane.
• Configuration verification: Compare channel-pair programming, setpoints, bypass status, and measurement assignments against the approved configuration.
• Extended run test: Monitor for intermittent resets, unstable measurement values, communication loss, abnormal heating, or diagnostic faults.
• Final QC: Record serial number, revision, channel results, alarm-test results, configuration data, condition grade, photographs, and packaging approval.

The current manufacturer datasheet confirms that the 3500/40M provides continuous machinery protection by comparing monitored parameters against configured alarm setpoints and can drive alarm logic in the 3500 relay modules.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/40M 140734-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 140734-01 part number before PO release. Current supplier records show units listed as in stock, but emergency dispatch should be based on physically verified inventory and the actual carrier cutoff rather than catalog status.

How do you verify the condition and authenticity of this 3500/40M monitor?
Require complete part-number and serial verification, OEM anti-counterfeit visual inspection, PCB and connector examination, power-up diagnostics, LED verification, four-channel signal testing, alarm testing, rack communication testing, and documented final QC.

Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
The more important checks are the installed 3500/40M configuration, channel-pair assignments, measurement functions, alarm setpoints, transducer types, and rack configuration. The manufacturer specifies that channel functions are programmed through 3500 Rack Configuration Software and assigned in pairs.

Can 140734-01 be installed as a direct replacement?
Yes, conditionally. It is suitable as a drop-in replacement when the installed rack requires the same 3500/40M configuration and the field transducers, channel assignments, setpoints, and rack configuration are verified. Post-installation signal and alarm testing remains mandatory.

What warranty and return terms should procurement require?
The quotation should specify the exact 3500/40M 140734-01 part number, condition grade, serial traceability, functional-test scope, warranty period, DOA coverage, and return authorization procedure. One current supplier listing states a one-year warranty for a new 140734-01 unit, providing a reasonable commercial benchmark, but the actual warranty should be written into the purchase quotation.
