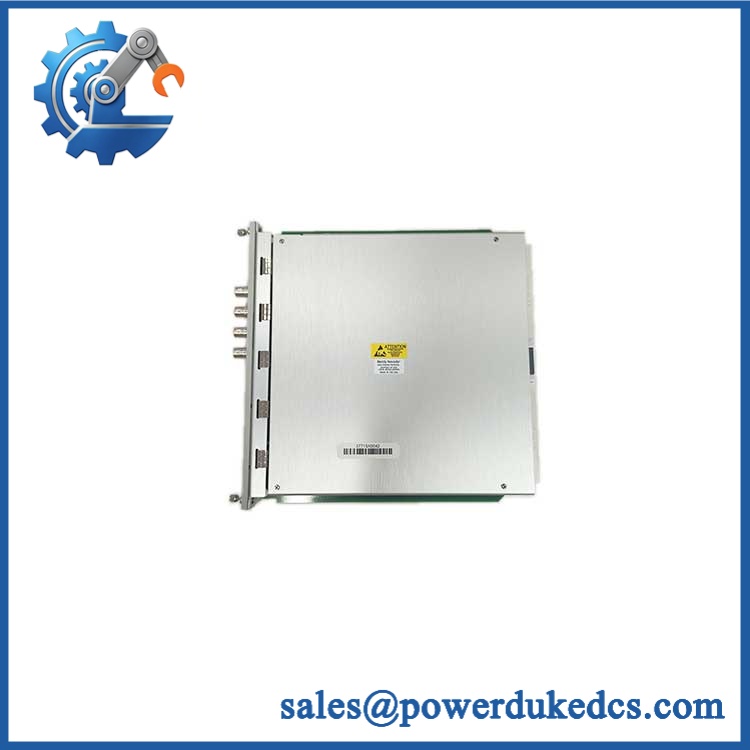

Bently Nevada 3500/40M 176449-01 | Proximitor Monitor Module

• Brand: Bently Nevada
• Full Model Number: 3500/40M 176449-01
• Lifecycle Status: Active / Current Spare
• Core Function: Four-channel Proximitor Monitor for machinery displacement, vibration, and position measurement
• Top 3 Technical Specs: 4-channel monitor; programmable vibration/position monitoring; buffered transducer outputs
• Stock & Condition: New surplus / tested refurbished — verify I/O module type and channel configuration before PO

Baker Hughes lists 176449-01 as the spare part number for the 3500/40M Proximitor Monitor. The 3500/40M accepts up to four proximity transducer signals and provides programmable monitoring functions for machinery protection applications.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/40M monitor can disable several machinery measurement channels at once, leaving the associated probes and field wiring unusable from the protection rack’s perspective. The 176449-01 is the monitor module itself, while the associated I/O hardware is a separate component. Baker Hughes identifies 125680-01, 126615-01, 135489-04, and 149716-01 as different 3500/40M I/O configurations. That separation matters during emergency procurement because replacing the wrong assembly can leave the rack unable to interface correctly with the installed field wiring.

For TCO, replacing the failed monitor while retaining the existing 3500 rack, sensors, cabling, and commissioned protection scheme is usually far less expensive than migrating the complete machinery-protection system. The 3500/40M supports one to four proximity transducer inputs and user-programmable alarm functions, so an exact replacement can preserve the established monitoring architecture. The procurement check is configuration-specific: verify the 176449-01 monitor, the installed I/O module, transducer type, channel assignments, and existing settings before approving the replacement — particularly where the rack uses internal barriers or external termination hardware.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

I/O module mismatch: The 3500/40M monitor is separate from its I/O module. Baker Hughes specifies different I/O assemblies for internal termination, external termination, internal barriers, and TMR external termination. A 176449-01 replacement therefore must be paired with the correct existing I/O architecture.

Channel configuration: The 3500/40M can accept up to four proximity transducer signals. Before replacement, record which channels are active, the connected probe types, measurement functions, alarm thresholds, and output assignments. A replacement monitor that powers up correctly can still require configuration restoration before it is placed back into service.

Bently Nevada 3500/40M 176449-01

Module 5: Quality Assurance & Testing SOP

The 176449-01 should receive controlled electrical, channel, alarm, and rack-level testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and hardware revision.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, front panel, connectors, mounting hardware, and terminals.
• Check for corrosion, contamination, damaged contacts, cracked components, thermal damage, or unauthorized repair.

2. Configuration verification

• Confirm 3500/40M 176449-01 identification.
• Record hardware and firmware information where available.
• Identify the associated I/O module type.
• Verify internal termination, external termination, or barrier configuration.
• Photograph all identification markings for traceability.

3. Power-on testing

• Install the monitor in a compatible 3500 test rack.
• Apply controlled rack power.
• Perform power-on self-test (POST).
• Check applicable OK/RUN/FAULT status indications.
• Confirm normal module initialization.
• Verify the monitor communicates correctly with the rack interface.

4. Channel and protection testing

• Connect calibrated proximity-probe simulators or compatible test signals.
• Test all required measurement channels individually.
• Verify channel scaling and measurement stability.
• Exercise programmed Alert and Danger thresholds.
• Verify relay/output response and reset behavior.
• Check buffered transducer outputs where applicable.
• Verify the configured measurement range and alarm logic.
• Perform I/O load testing on applicable relay/output circuits.
• Run an extended operating test to detect intermittent hardware faults.

5. Final QC

• Record every tested channel, alarm transition, output result, firmware/revision, serial number, and test date.
• Confirm the monitor matches the requested I/O configuration.
• Generate a unit-specific Test Report.
• Verify connectors and terminal interfaces.
• Package using ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/40M 176449-01 genuinely in stock, and what is the emergency-shipping cutoff?

Current supplier records show 176449-01 as an available spare, with one current listing reporting in-stock status and another reporting a 1–10 working-day lead time. Physical allocation should still be confirmed against the actual unit before the PO is released. Emergency dispatch depends on QC completion, payment clearance, warehouse processing, and the courier cutoff.

How do you guarantee the condition and authenticity of surplus 176449-01 units?

Require complete part-number and serial-number verification, PCB and connector inspection, controlled rack power-up, four-channel signal testing, alarm verification, output testing, and a unit-specific Test Report. Actual photographs of the supplied monitor should be retained with the procurement record.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. The 3500/40M is a configurable monitoring module, so the installed firmware and configuration should be documented before replacement. Preserve channel assignments, transducer type, measurement function, alarm setpoints, relay logic, and relevant rack settings before removing the failed monitor.

Can I reuse my existing 3500/40M I/O module with a replacement 176449-01?

Normally, yes, provided the existing I/O module is compatible with the replacement monitor and remains electrically sound. Baker Hughes lists separate 3500/40M I/O modules for internal termination, external termination, internal barriers, and TMR external termination, so the installed I/O type must be verified before commissioning.

What warranty and return terms should procurement require?

Specify 3500/40M 176449-01, serial number, hardware revision, associated I/O configuration, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include startup, all required measurement channels, alarm operation, and applicable output verification.
