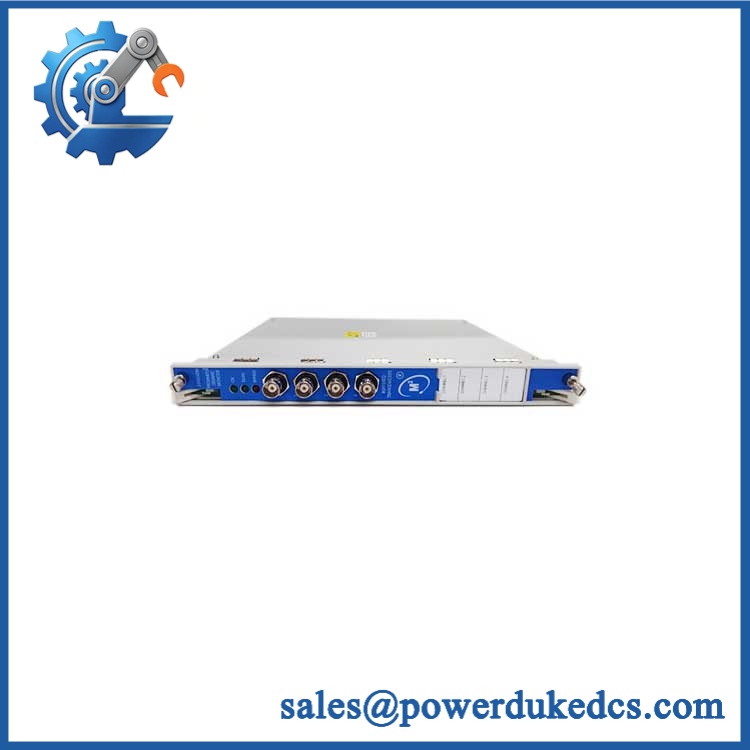

Bently Nevada 3500/42 140471-01 | Prox Velom I/O Module

• Brand: Bently Nevada
• Full Model Number: 3500/42 140471-01
• Lifecycle Status: Legacy / Lifecycle-managed
• Core Function: Prox/Velom I/O module with internal terminations
• Top 3 Technical Specs: 4-channel Prox/Velom interface; internal field terminations; supports Prox/Accel, Velomitor, and HTVS transducers
• Stock & Condition: New Surplus / Tested Refurbished; Exact configuration confirmation required; Emergency dispatch subject to order cutoff

The 140471-01 is the Prox/Velom I/O Module with internal terminations for the Bently Nevada 3500/42M Proximitor Seismic Monitor. The documented 3500/42M ordering table identifies option 09 with 140471-01 and supports Prox/Accel, Velomitor, or HTVS transducer types.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 140471-01 can remove the field interface for as many as four monitoring channels while the associated 3500 rack remains otherwise serviceable. This is not a generic analog I/O board: it is the internally terminated Prox/Velom I/O variant used with the 3500/42M architecture. The 3500/42M accepts proximity and seismic-related transducer signals, conditions them for vibration and position measurements, and applies programmable alarm functions. For an installed system, the exact I/O variant therefore matters just as much as the front monitor part number.

The TCO case favors a correctly matched replacement when the monitor, rack, field wiring, and protection logic remain usable. Keeping the installed architecture avoids changing external termination arrangements or introducing a different I/O design. The engineering distinction is important: 140471-01 is the rear I/O module, while 176449-02 is the associated 3500/42M monitor spare in the documented assembly. A procurement team buying only one half of the assembly when the other half has failed can extend the outage rather than resolve it.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• I/O option mismatch: The 3500/42M documentation distinguishes several I/O variants. 140471-01 is option 09, while options 04–06 use internally barred I/O assemblies with different transducer combinations. These variants should not be interchanged solely because they occupy the same rack position.
• Internal termination versus external termination: 140471-01 uses internal terminations, while 140482-01 is the corresponding external-termination Prox/Velom variant. The field wiring arrangement must match the replacement exactly.

Bently Nevada 3500/42 140471-01

Module 5: Quality Assurance & Testing SOP

The module should be tested as a complete 3500/42M I/O interface, with particular attention to channel type and internal termination integrity.

• Incoming traceability: Record Bently Nevada markings, complete 140471-01 part number, revision, serial information, and visible configuration identifiers.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, connectors, terminal assemblies, components, solder quality, and evidence of unauthorized rework.
• Mechanical inspection: Verify module housing, mounting features, rack connectors, internal terminal arrangement, and PCB condition.
• Power-on self-test (POST): Install the I/O module with an approved 3500/42M monitor/test assembly and verify normal rack startup and diagnostic status.
• Supply verification: Confirm rack power conditions and check abnormal current draw or temperature rise.
• Termination continuity test: Verify internal terminal continuity, connector pinout, shield paths, and absence of unintended shorts.
• Channel testing: Exercise all four channels with approved Prox/Accel, Velomitor, or HTVS-compatible simulation equipment as applicable.
• Signal verification: Confirm correct signal transmission through each I/O channel to the associated 3500/42M monitor.
• Configuration test: Verify the monitor recognizes the installed I/O type and that channel assignments match the approved configuration.
• Alarm-path test: Apply representative abnormal signals and confirm the monitor’s Alert/Danger processing responds correctly.
• I/O load testing: Exercise representative signal loads and monitor channel stability, supply behavior, and temperature.
• Extended operation: Run all configured channels continuously while checking for intermittent signal loss or diagnostic faults.
• Final QC release: Record part number, revision, channel results, termination checks, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 3500/42 140471-01 genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier records show 140471-01 being offered as available, including one listing that explicitly reports the part as in stock. Another listing gives an estimated 1–10 working day lead time for the complete 3500/42 configuration. For an emergency requirement, confirm physical warehouse quantity, exact revision, current photographs, and the daily dispatch cutoff before releasing the PO.

2. How do you guarantee the condition and authenticity of this obsolete or surplus I/O module?

Start with exact part-number and revision verification, then inspect PCB markings, connectors, internal termination hardware, and mechanical condition. Functional QA should cover all applicable channels and the complete signal path through a compatible 3500/42M monitor. Photographs and measured test results should remain with the MRO receiving record.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

The key issue is monitor and I/O configuration compatibility, not simply a firmware flash. Engineering should verify the 3500/42M monitor revision, I/O option 09, transducer type, channel assignments, internal termination arrangement, and existing alarm configuration. The documented 3500/42M ordering structure makes these distinctions explicit.

4. Can the 140471-01 replace the installed I/O module without hardware modification?

For an existing 3500/42M option 09 installation, a like-for-like 140471-01 replacement is intended to preserve the rack and internal termination arrangement. Do not substitute the external-termination 140482-01 or a barrier-equipped I/O variant without an engineering review.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 3500/42 140471-01, exact revision, I/O configuration, condition, test status, warranty period, and return procedure. Warranty coverage should address DOA and verified I/O failure while excluding damage caused by incorrect wiring, incompatible transducers, rack power faults, ESD, or unauthorized modification.
