Bently Nevada 3500/42M 135489-01 | Proximitor Seismic I/O Module

• Brand: Bently Nevada
• Full Model Number: 3500/42M 135489-01
• Lifecycle Status: Current / Supported Spare
• Core Function: Proximitor/Seismic I/O Module with internal barriers and internal terminations
• Top 3 Technical Specs: 4 × Prox/Accel channels; Internal safety barriers; Internal terminations
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 3500/42M 135489-01 can interrupt four critical vibration or acceleration signal paths while the main 3500/42M monitor remains serviceable. The 135489-01 is specifically the I/O Module with Internal Barriers and Internal Terminations for four Prox/Accel channels. The 3500/42M itself is a four-channel Proximitor/Seismic Monitor capable of processing proximity, velocity, and acceleration inputs for measurements such as radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, and related parameters.

For an installed hazardous-area monitoring system, replacing the exact I/O module can have a substantially lower TCO than redesigning the signal interface or removing the internal-barrier architecture. Existing 3500/42M monitoring electronics, field sensors, rack wiring, and established protection settings can remain in service when the correct I/O configuration is restored. The key qualification issue is the combination of internal barriers + internal terminations + four Prox/Accel channels. Bently Nevada’s documentation separately identifies 135489-02 for two Prox/Accel plus two Velomitor channels and 135489-03 for four Velomitor channels, so option matching is essential.

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s published ordering information identifies 135489-01 as the four Prox/Accel internal-barrier, internal-termination option for the 3500/42M family.

Estimated switch cost/time: For an exact tested spare already staged at the facility, plan approximately 1–3 hours for controlled replacement, terminal verification, barrier inspection, channel testing, and functional checkout. A newly sourced unit may require 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• Channel-type mismatch: 135489-01 is for four Prox/Accel channels. 135489-02 combines two Prox/Accel and two Velomitor channels, while 135489-03 is for four Velomitor channels. These configurations are not interchangeable simply because the mechanical form is similar.
• Barrier architecture: Internal-barrier modules require the appropriate 3500/04 internal-barrier system arrangement. Bently Nevada specifies an IS Earthing Module in racks containing internal barriers.
• Termination mismatch: External termination blocks cannot be used with internal-termination I/O modules. Confirm the complete field-wiring architecture before approving a substitute.
• Hazardous-area application: Do not remove or bypass the internal-barrier configuration merely to accommodate an otherwise similar non-barrier I/O module.

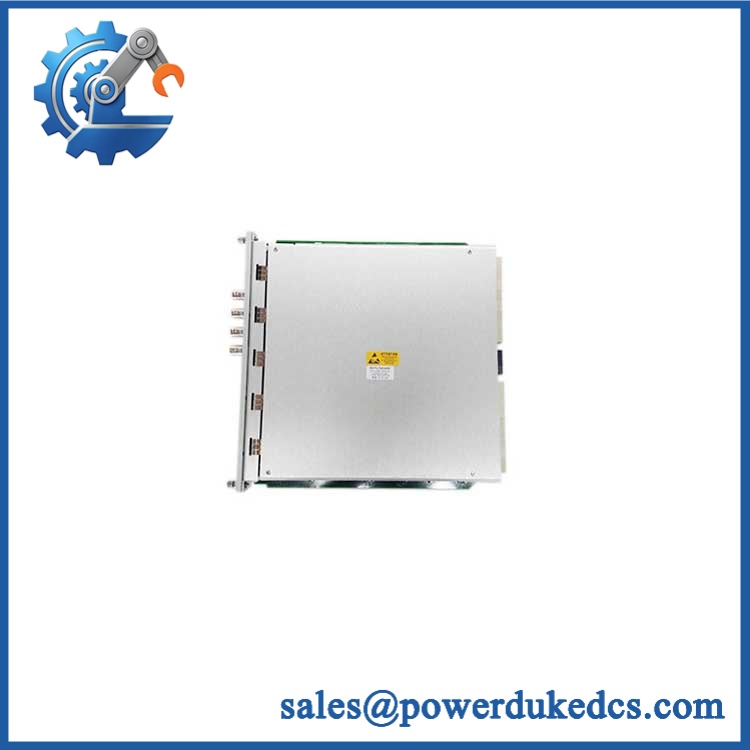

Bently Nevada 3500/42M 135489-01

Module 5: Quality Assurance & Testing SOP

A barrier I/O module requires both ordinary electronics inspection and application-specific barrier verification. Power-up by itself does not establish acceptance.

• Part-number verification: Confirm 3500/42M 135489-01, revision, serial/traceability information, and all Bently Nevada identification.
• OEM anti-counterfeit visual inspection: Inspect manufacturer markings, PCB identifiers, terminal assemblies, connectors, barrier components, and evidence of unauthorized rework.
• Physical condition inspection: Check the module housing, PCB, terminal interfaces, connector contacts, mounting features, and barrier section for corrosion, contamination, cracking, or thermal damage.
• Barrier assembly inspection: Verify that the internal barrier components are present, intact, and free from signs of overheating, arcing, or physical damage.
• Termination inspection: Confirm the module uses the specified internal termination configuration.
• Channel configuration verification: Confirm all four channels are configured for the intended Prox/Accel application.
• Continuity testing: Verify applicable signal, ground, and accessible circuit paths before functional energization.
• Power-on self-test (POST): Install the module in a compatible 3500/42M test rack and verify normal startup and module recognition.
• Status indication check: Confirm the 3500/42M monitor reports the module and associated channels correctly, including normal OK status.
• Proximity-channel testing: Apply controlled simulated proximity-transducer signals to channels 1–4 and verify correct signal acquisition.
• Acceleration-channel testing: Where the intended configuration permits, apply calibrated acceleration simulation and verify appropriate monitor response.
• Signal-path verification: Confirm each input reaches the 3500/42M monitor through the internal termination and barrier circuitry.
• Measurement verification: Check representative vibration or acceleration measurements against calibrated simulated inputs.
• Recorder-output testing: Where configured, verify associated 4–20 mA recorder outputs and expected scaling through the monitor.
• Alarm-path testing: Simulate representative measurement changes and verify Alert/Danger response at the monitor level.
• I/O load testing: Operate representative signal conditions while monitoring channel stability, noise, and module temperature.
• Isolation/barrier verification: Apply the approved barrier test procedure and acceptance criteria for the installed hazardous-area configuration.
• Extended observation: Maintain representative signal activity long enough to detect intermittent channel, termination, or barrier-related faults.
• Final QC release: Record full part number, revision, channel configuration, test results, photographs, condition grade, test date, and QC authorization.

The published 3500/42M documentation lists 135489-01 under the internal-barrier I/O options and specifically assigns it to four Prox/Accel channels. It also identifies the barrier I/O assembly as physically deeper than the standard non-barrier I/O module, so receiving inspection should verify the correct mechanical configuration as well.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/42M 135489-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 135489-01 part number and actual barrier configuration before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup, and destination. Same-day shipment should only be confirmed after the specific module has been physically identified and released.

Q2. How do you guarantee the condition and authenticity of a 135489-01?
Require exact part-number verification, OEM visual inspection, barrier and terminal inspection, controlled power-up, four-channel signal testing, alarm-path verification, and documented QC results. For surplus or refurbished inventory, retain photographs of the actual module and identification markings.

Q3. Can 135489-02 replace 135489-01?
No, not as a routine drop-in replacement. 135489-01 provides four Prox/Accel channels, whereas 135489-02 provides two Prox/Accel channels plus two Velomitor channels. The installed sensor types and channel assignments must therefore be reviewed before substitution.

Q4. Does 135489-01 require firmware compatibility checks?
The I/O module itself is not normally the component receiving a firmware flash. Engineering verification should focus on the associated 3500/42M monitor, configuration software, sensor types, channel assignments, internal-barrier architecture, and rack configuration. The 3500/42M monitor is configured through the 3500 Rack Configuration Software.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, four-channel signal-performance coverage, barrier/I/O conformity, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual barrier and functional test record and clearly define whether failures discovered during commissioning are covered.
