Description
- Brand: Bently Nevada
- Full Model Number: 3500/42M 135489-02
- Lifecycle Status: Active / Lifecycle verification recommended
- Core Function: Proximitor Seismic I/O module with internal barriers and internal terminations
- Top 3 Technical Specs: 2 × Prox/Accel channels | 2 × Velomitor channels | Internal barriers and internal terminations
- Stock & Condition: Physical stock confirmation required | New Surplus / New Factory Stock / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff
Module 3: Obsolescence & Supply Chain Deep Dive
A 3500/42M replacement can fail at the procurement stage when the buyer specifies only the monitor model and misses the I/O configuration. Bently Nevada 135489-02 is not the main 3500/42M monitor; it is a specific I/O module option for that monitor. Baker Hughes identifies it as the I/O module with internal barriers and internal terminations, configured for two Prox/Accel inputs on channels 1 and 2 plus two Velomitor inputs on channels 3 and 4. This distinction matters in a shutdown because a physically compatible-looking I/O assembly can still have the wrong sensor type, barrier arrangement, or termination architecture.
For an installed 3500/42M system, replacing 135489-02 with the same configured I/O module can preserve the existing field wiring, hazardous-area interface, sensor allocation, and channel configuration. The 3500/42M is a four-channel machinery protection monitor that accepts proximity and seismic transducer signals and compares measured values against configured alarm setpoints. Replacing the correct I/O assembly is therefore usually much less expensive than changing the complete monitor architecture, rewiring sensor circuits, or re-engineering the protection system. (For outage-critical legacy inventory, verified physical stock can be more valuable than a quoted lead time.) TCO should include technician hours, field termination work, calibration, alarm verification, and lost production time.
Module 4: Compatibility & Replacement Matrix
| Purchase Review Item | Engineering Guidance |
|---|---|
| Replacement Classification | Drop-in Replacement — conditional |
| Hardware Modification | None expected for an exact 135489-02 installation |
| Primary Monitor | Bently Nevada 3500/42M Proximitor Seismic Monitor |
| I/O Part Number | 135489-02 |
| I/O Type | Internal barriers with internal terminations |
| Channels 1–2 | Prox/Accel |
| Channels 3–4 | Velomitor |
| Termination Type | Internal |
| Typical Switch Time | ~2–5 labor hours, excluding sensor calibration and site-specific commissioning |
| Typical Engineering Cost | Approximately 300–1,200 excluding outage and travel |
| Recommended Migration Path | Record channel assignments → verify 135489-02 → document field wiring → replace → verify sensor inputs → test alarms and measurements |
Baker Hughes explicitly lists 135489-02 under the 3500/42M I/O options and specifies the exact channel allocation: Prox/Accel on channels 1–2 and Velomitor on channels 3–4. It also states that external termination blocks cannot be used with internal-termination I/O modules.
Field Traps — Watch Out
- Sensor allocation mismatch: Do not treat 135489-02 as a generic four-channel 3500/42M input module. Channels 1–2 are specified for Prox/Accel and channels 3–4 for Velomitor.
- Internal versus external termination: 135489-02 uses internal terminations and internal barriers. An external-termination configuration requires a different I/O part number and associated termination hardware.

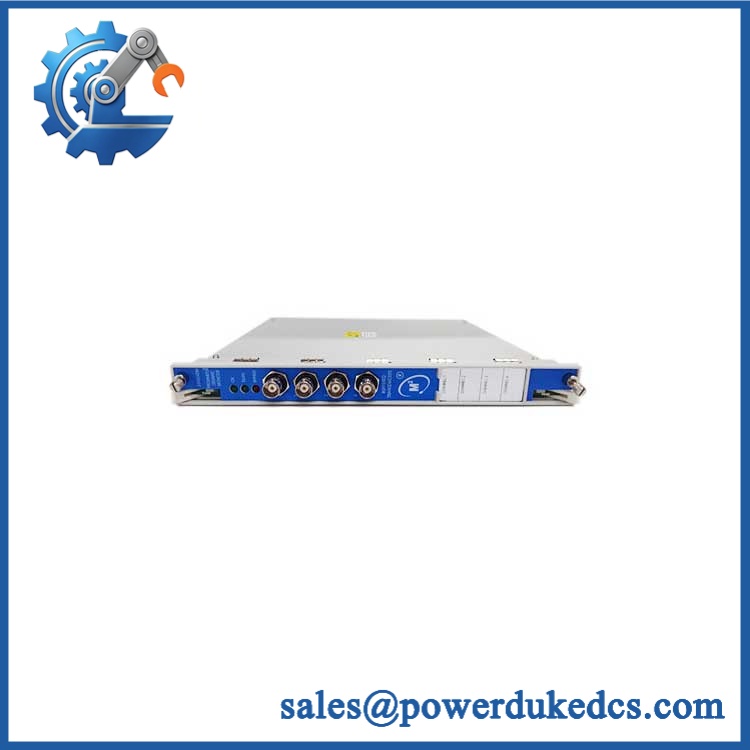

Bently Nevada 3500/42M 135489-02
Module 5: Quality Assurance & Testing SOP
A strict pre-shipment inspection for Bently Nevada 3500/42M 135489-02 should include:
- Identity verification: Confirm complete 135489-02 part number, 3500/42M compatibility, serial information, labels, connectors, and hardware revision.
- OEM anti-counterfeit visual inspection: Examine Bently Nevada identification, PCB markings, terminal construction, barrier circuitry, connectors, labels, and evidence of unauthorized rework.
- Mechanical inspection: Check housing, card edge, terminal interfaces, mounting hardware, connectors, and PCB surfaces for corrosion, cracks, contamination, or bent contacts.
- Power-on self-test (POST): Install the I/O module in an approved 3500/42M test configuration and verify normal startup behavior.
- Barrier inspection: Verify the internal barrier circuitry and associated terminal paths for visible damage, overheating, contamination, or unauthorized modification.
- Channel 1 test: Apply an approved simulated Prox/Accel input and verify correct signal acquisition.
- Channel 2 test: Repeat the Prox/Accel measurement test independently.
- Channel 3 test: Apply a suitable Velomitor input and verify measurement response.
- Channel 4 test: Repeat the Velomitor measurement test independently.
- I/O load testing: Exercise applicable signal paths under controlled conditions and monitor for abnormal voltage, current, temperature, or intermittent behavior.
- Alarm verification: Drive representative measurement values across configured alarm thresholds and verify correct response at the 3500/42M monitor.
- Termination test: Confirm the internal termination paths correspond to the intended 135489-02 configuration.
- Rack communication test: Verify stable exchange between the I/O module and the associated 3500/42M monitor.
- Extended run test: Monitor all four channels for drift, intermittent signal loss, communication faults, or abnormal thermal behavior.
- Final QC: Record part number, serial number, channel-by-channel test results, barrier inspection, alarm results, condition grade, photographs, and packaging approval.
The manufacturer’s ordering information makes the channel and termination configuration explicit. A proper QA process should therefore test both sensor types, not simply confirm that the module is detected by the rack.
Module 6: Procurement & Lifecycle FAQ
Is Bently Nevada 3500/42M 135489-02 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 135489-02 part number before PO release. Emergency dispatch depends on verified inventory, payment clearance, export documentation, and the daily carrier pickup cutoff.
How do you verify the condition and authenticity of this legacy I/O module?
Require complete part-number and serial verification, OEM anti-counterfeit inspection, PCB and terminal inspection, barrier-circuit examination, power-up testing, four-channel functional testing, load testing, alarm verification, and documented final QC.
What is the exact difference between 135489-01 and 135489-02?
Both are 3500/42M I/O configurations with internal barriers and internal terminations. 135489-01 is configured for four Prox/Accel channels, while 135489-02 is configured for two Prox/Accel channels plus two Velomitor channels.
Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Firmware is not normally the primary concern for this I/O module. The critical checks are the installed 3500/42M configuration, sensor type by channel, internal versus external termination, barrier arrangement, field wiring, and alarm configuration. The monitor itself is software-configured, so the existing channel assignments should be documented before replacement.
What warranty and return terms should procurement require?
The quotation should specify the exact 3500/42M 135489-02 identification, condition grade, serial traceability, channel-by-channel test scope, warranty period, DOA coverage, and return authorization procedure. For this I/O variant, the acceptance record should explicitly show successful testing of both Prox/Accel and Velomitor channels.
