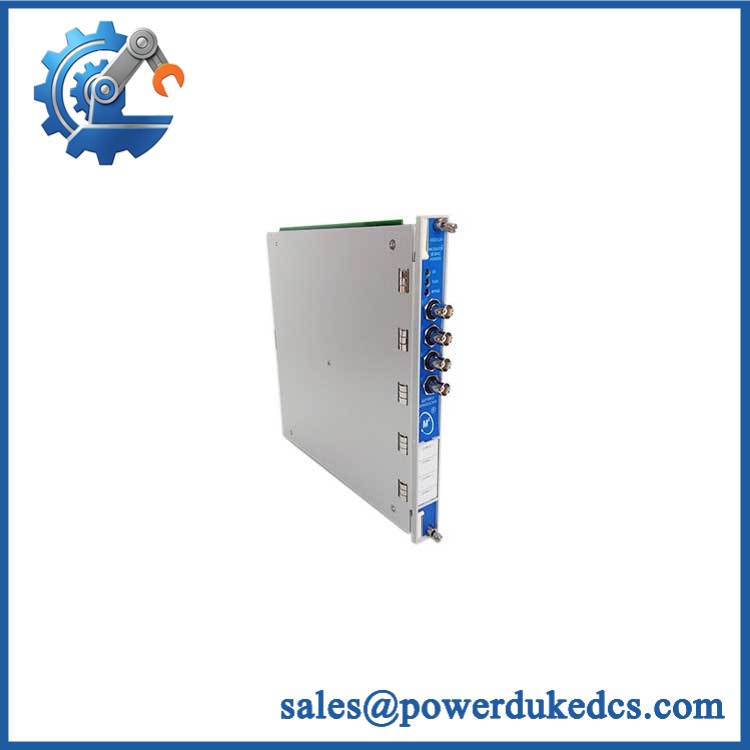

Bently Nevada 3500/42M 140482-01 | Prox Velom I/O Module

• Brand: Bently Nevada
• Full Model Number: 3500/42M 140482-01
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: Prox/Velom I/O Module with external terminations for 3500/42M monitoring
• Top 3 Technical Specs: 4-channel Prox/Velom interface; external termination architecture; supports Prox/Accel, Velomitor, and HTVS transducers
• Stock & Condition: New surplus / tested refurbished — verify external termination blocks, cables, and transducer configuration before PO

Baker Hughes documentation identifies 140482-01 as the Prox/Velom I/O Module with External Terminations for the 3500/42M Proximitor/Seismic Monitor. It supports Prox/Accel, Velomitor, and HTVS transducer configurations.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 140482-01 can disconnect several machinery measurement channels from the 3500/42M system even when the monitor electronics remain operational. This component is the external-termination I/O module, so it forms the interface between the 3500/42M monitor and the external termination arrangement serving the field transducers. The distinction is important during emergency sourcing: 140482-01 is not the 3500/42M monitor itself.

From a TCO standpoint, replacing the exact I/O module can preserve the installed monitor, field transducers, external termination blocks, and existing cabinet wiring. That usually costs less than redesigning the complete measurement channel. The main procurement constraint is configuration matching. Bently Nevada lists 140471-01 for internal terminations and 140482-01 for external terminations, while separate 3500/42M I/O variants support different transducer combinations and barrier arrangements. External-termination modules also require the associated termination blocks and cables to be correct for the installation.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

External termination requirement: The 140482-01 is specifically an external-termination I/O module. Bently Nevada states that external termination blocks and the associated cables must be ordered separately, and external termination blocks cannot be used with internal-termination I/O modules. Match the complete field interface before approving the spare.

Transducer configuration: The 140482-01 supports Prox/Accel, Velomitor, and HTVS applications. Do not substitute another 3500/42M I/O module based only on channel count; the installed sensor type and signal architecture determine the correct module.

Bently Nevada 3500/42M 140482-01

Module 5: Quality Assurance & Testing SOP

The 140482-01 should undergo component inspection, electrical verification, and controlled 3500/42M integration testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and revision/date-code information.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, connectors, terminals, mounting hardware, and external-termination interfaces.
• Check for corrosion, contamination, cracked components, bent contacts, damaged traces, or unauthorized rework.

2. Configuration verification

• Confirm 3500/42M 140482-01 identification.
• Verify Prox/Velom I/O Module with External Terminations.
• Record hardware revision where available.
• Confirm intended transducer application: Prox/Accel, Velomitor, or HTVS.
• Verify compatibility with the specified external termination blocks and cables.
• Photograph all identification markings for traceability.

3. Electrical inspection

• Check applicable power and signal-path continuity.
• Verify connector pin-to-pin continuity.
• Inspect signal-to-ground isolation.
• Perform insulation-resistance testing using an appropriate controlled procedure.
• Confirm terminal retention and connector integrity.

4. Power-on and signal testing

• Install the module in a compatible 3500/42M test rack.
• Connect the appropriate external termination assembly.
• Apply controlled rack power.
• Perform power-on self-test (POST) at the system level.
• Check OK, TX/RX, BYPASS, and applicable diagnostic indications.
• Apply calibrated simulated Prox/Accel or Velomitor signals.
• Verify all applicable channels respond correctly.
• Confirm signal routing through the external termination path.
• Verify buffered or monitored outputs as applicable.
• Perform I/O load testing on associated output/control circuits where required.
• Run an extended signal test to identify intermittent connections or communication faults.

5. Final QC

• Record channel-level test results, signal conditions, hardware revision, serial number, and test date.
• Confirm the external termination configuration.
• Generate a unit-specific Test Report.
• Verify connector and terminal condition.
• Package using ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/42M 140482-01 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual 140482-01 unit, including revision, condition, and QC status. Emergency dispatch depends on inspection completion, order/payment clearance, warehouse processing, and the courier pickup cutoff.

How do you guarantee the condition and authenticity of surplus 140482-01 units?

Require complete part-number and serial-number verification, PCB and connector inspection, electrical continuity testing, controlled rack power-up, external-termination signal testing, and a unit-specific Test Report. Actual photographs of the supplied module should be retained with the procurement record.

Are there firmware compatibility issues my engineers should check before issuing the PO?

Yes. The 3500/42M monitor has documented software and firmware dependencies. The current datasheet identifies 3500/42M Module Firmware Revision 2.10 for the 140471-01 I/O configuration, while the 140482-01 external-termination configuration is associated with specified 3500/01 and DM2000 software versions. Verify the installed system revision before replacement.

Can I substitute 140471-01 for 140482-01?

Not as a routine drop-in substitution. 140471-01 is the Prox/Velom I/O Module with internal terminations, while 140482-01 uses external terminations. Changing between them can require a different termination arrangement and field wiring.

What warranty and return terms should procurement require?

Specify 3500/42M 140482-01, serial number, hardware revision, tested condition, external-termination configuration, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include successful rack initialization, correct external signal routing, and verified operation of all required measurement channels.
