Bently Nevada 3500/42M 140734-02 | Proximitor Seismic Monitor

Description

• Brand: Bently Nevada
• Full Model Number: 3500/42M 140734-02
• Lifecycle Status: Obsolete / Replaced by 176449-02 in some current supply references
• Core Function: Four-channel Proximitor/Seismic Monitor
• Top 3 Technical Specs: 4 configurable channels; proximity/velocity/acceleration inputs; typical power consumption 7.7 W
• Stock & Condition: New Surplus / Tested Refurbished; Exact I/O configuration required; Emergency dispatch subject to physical stock confirmation

The 140734-02 is identified as a 3500/42M Proximitor/Seismic Monitor. The 3500/42M accepts up to four proximity, velocity, or acceleration transducer signals, provides programmable monitoring and alarm functions, and typically consumes about 7.7 W. Published 3500/42M documentation lists 140734-02 as a monitor spare and separately identifies the associated I/O module families.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 140734-02 can remove four machinery-monitoring channels from a Bently Nevada 3500 rack, affecting vibration, position, velocity, acceleration, or other configured measurements. The monitor continuously compares configured measurement values against alarm setpoints and supports functions including radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, and shaft-absolute measurements. For a legacy 3500 installation, sourcing the exact monitor can avoid a wider redesign while maintenance teams restore the affected rack.

The TCO case is strongest when the existing rack, I/O module, transducers, and configuration remain serviceable. A matching monitor preserves the installed measurement architecture and can avoid new field wiring, revised alarm logic, replacement of functional I/O hardware, and additional commissioning work. There is, however, a critical lifecycle consideration: current supplier documentation identifies 176449-02 as an upgrade or replacement for 140734-02. That means procurement should decide deliberately between an exact legacy spare and the newer replacement, rather than assuming the two part numbers are interchangeable without configuration review.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• I/O configuration is not defined by 140734-02 alone: The 3500/42M ordering structure uses separate monitor and I/O selections. Published documentation lists 128229-01, 128240-01, 135489-01, 135489-02, and 135489-03 for different termination, barrier, and transducer arrangements. Confirm the installed I/O part number before PO approval.
• Do not assume 176449-02 is a configuration-neutral substitute: Current supplier references describe 176449-02 as a replacement for 140734-02, but the installed I/O arrangement, firmware/configuration baseline, and site application should still be checked before treating it as a direct field replacement.

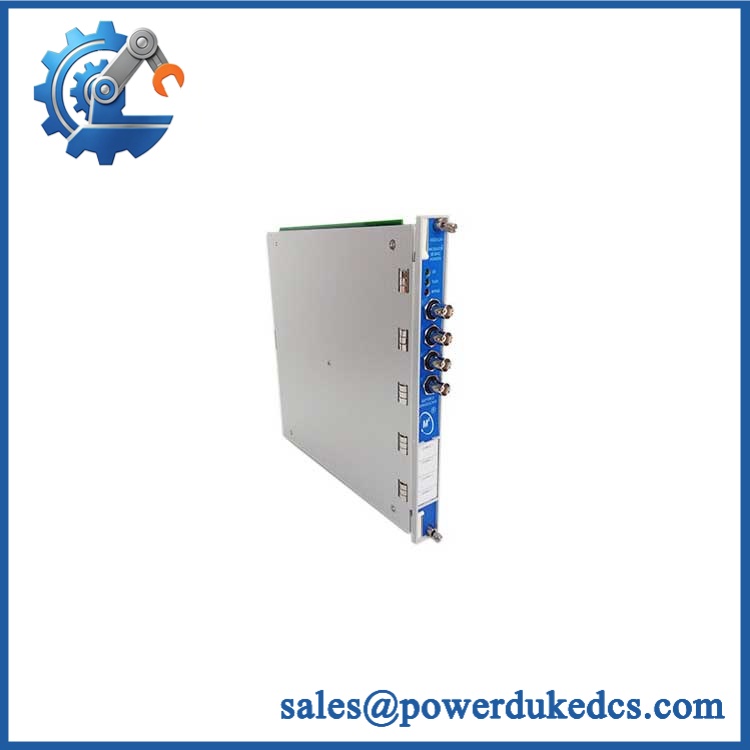

Bently Nevada 3500/42M 140734-02

Module 5: Quality Assurance & Testing SOP

The monitor should be tested at rack level because its function depends on the associated I/O module and configured transducer type.

• Incoming traceability: Record Bently Nevada markings, complete 140734-02 identification, serial number, revision, and visible configuration data.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, connectors, components, solder quality, front panel, ejectors, and evidence of unauthorized repair.
• Mechanical inspection: Verify card-edge connectors, mounting hardware, housing condition, and rack mating surfaces.
• Power-on self-test (POST): Install the monitor in an approved 3500 test rack and verify startup behavior and applicable OK/TX/RX/Bypass indications.
• Supply verification: Confirm rack power conditions and check current draw and abnormal heating.
• Channel 1–4 testing: Apply calibrated simulated transducer signals independently to every configured channel.
• Signal-conditioning test: Verify the configured proximity, velocity, or acceleration input path.
• Measurement-function test: Exercise the applicable radial-vibration, thrust, eccentricity, differential-expansion, REBAM, or shaft-absolute function.
• Alarm verification: Apply representative Alert and Danger conditions and confirm correct alarm-state response.
• I/O integration test: Verify communication between the monitor and its exact rear I/O module.
• I/O load testing: Exercise representative signal and output loads through the complete monitor/I/O chain.
• Configuration verification: Compare channel assignments, engineering units, sensitivity, filters, and alarm setpoints against the approved site configuration.
• Extended operation: Run all configured channels continuously while monitoring stability, temperature, diagnostics, and intermittent faults.
• Final QC release: Record part number, revision, I/O part number, channel results, alarm results, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 3500/42M 140734-02 genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier reports are inconsistent. One listing shows 140734-02 available with an estimated 1–10 working day lead time, while another identifies the part as discontinued and unavailable for sale. For an emergency order, require physical stock confirmation, exact part-number verification, current identification photographs, and the warehouse dispatch cutoff before releasing the PO.

2. How do you verify the condition and authenticity of this obsolete 3500/42M monitor?

Verify the complete 140734-02 identification, revision, serial information, PCB markings, connectors, front panel, and mechanical condition. Functional QA should then include controlled power-up, all four applicable input channels, monitor diagnostics, alarm behavior, and rack/I/O integration. Retain the inspection photographs and measured results with the MRO record.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. The key issue is configuration compatibility, not merely physical insertion. The 3500/42M uses configurable channel functions and different rear I/O variants; the engineering team should verify the installed I/O type, transducer type, channel assignments, alarm settings, and software baseline before installation. The published ordering information also distinguishes multiple I/O modules by termination and barrier configuration.

4. Can the 140734-02 replace the existing 3500/42M monitor without hardware modification?

For an existing 140734-02 installation with the same rack and I/O configuration, a like-for-like replacement is normally a direct hardware change. However, if procurement intends to substitute the newer 176449-02, treat that as a controlled replacement/upgrade and verify configuration, software, and associated I/O compatibility first.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 3500/42M 140734-02, exact revision, associated I/O configuration, condition, test status, warranty duration, and return procedure. Warranty coverage should address DOA and verified monitor failure while excluding damage caused by incorrect transducer wiring, incompatible I/O hardware, unsuitable rack power, ESD, configuration errors, or unauthorized modification.
