Bently Nevada 3500/42M 176449-02 | Proximitor Seismic Monitor

• Brand: Bently Nevada
• Full Model Number: 3500/42M 176449-02 02U
• Lifecycle Status: Current / Supported 3500 Series Spare
• Core Function: Four-channel Proximitor/Seismic monitoring for machinery protection
• Top 3 Technical Specs: 1–4 proximity/velocity/acceleration inputs; -24 VDC transducer supply; 7.7 W typical power consumption
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 3500/42M 176449-02 can remove up to four critical vibration or position measurement channels from an operating 3500 protection rack. The 3500/42M is a Proximitor/Seismic Monitor that accepts from one to four proximity, velocity, or acceleration transducer signals. Published specifications identify a -24 VDC transducer supply, approximately 7.7 W typical power consumption, and one full-height rack position. The 02U marking should be captured from the physical nameplate and treated as part of the supplied unit’s identification record.

For a running 3500 installation, replacing the exact monitor generally carries a much lower TCO than redesigning four measurement channels around another monitoring platform. Existing I/O architecture, rack wiring, sensors, alarm setpoints, recorder outputs, and host-system integration can remain in service when the replacement is correctly matched. The 176449-02 also supports paired-channel functions for multi-function monitoring applications. —The main procurement risks are configuration mismatch, incorrect I/O hardware, and firmware/software incompatibility rather than the physical fit of the front module alone.

Module 4: Compatibility & Replacement Matrix

The 3500/42M documentation identifies the monitor as a four-channel platform and specifies separate I/O modules for different sensor and termination configurations.

Estimated switch cost/time: With an exact tested spare already staged on-site, plan approximately 1–3 hours for controlled replacement, rack recognition, configuration review, and signal checkout. A sourced unit may require 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• I/O configuration mismatch: The 3500/42M can use different I/O assemblies for Prox/Accel, Velomitor, Shaft Absolute, and barrier applications. The main monitor number alone does not define the complete signal interface.
• Firmware requirement: Published documentation identifies minimum firmware and software revisions for the 3500/42M and specific channel types. Record the installed firmware before replacement.
• Internal vs. external termination: External termination blocks cannot be used with internal-termination I/O modules. Confirm the rear I/O part number before approving the replacement.
• Channel assignment: The monitor can operate from one to four transducer inputs, and paired-channel programming can affect measurement behavior. Preserve the existing channel configuration before removal.

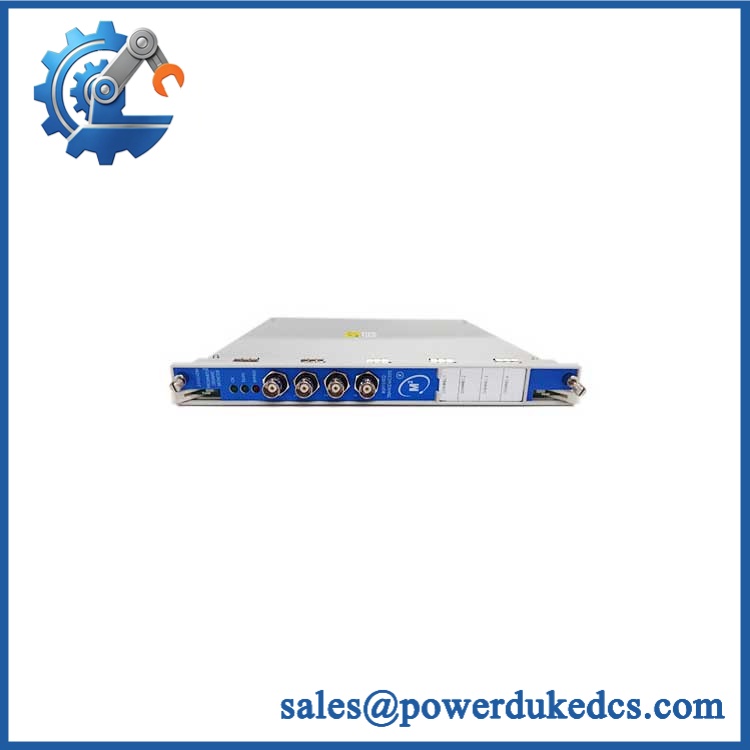

Bently Nevada 3500/42M 176449-02

Module 5: Quality Assurance & Testing SOP

The 176449-02 should be qualified as a complete machinery-monitoring channel assembly. Power-up alone is not enough.

• Part-number verification: Confirm 3500/42M, 176449-02, 02U, revision, serial number, and Bently Nevada identification.
• OEM anti-counterfeit visual inspection: Inspect manufacturer labels, PCB markings, front-panel construction, connectors, terminal interfaces, and evidence of unauthorized rework.
• Physical condition inspection: Check the enclosure, card edge, front-panel connectors, mounting hardware, and accessible PCB areas for corrosion, impact, contamination, or thermal damage.
• I/O configuration verification: Confirm the rear I/O module and distinguish internal, external, isolated, or barrier configuration.
• Continuity testing: Verify applicable power, ground, and signal paths before energization.
• Power-on self-test (POST): Install the monitor in a compatible 3500 rack and verify startup behavior, module recognition, and normal status indications.
• Status LED check: Verify OK, TX/RX, Bypass, and other applicable indications during the test sequence.
• Proximity-channel testing: Apply controlled simulated proximity signals to each configured channel and verify correct processing.
• Velocity-channel testing: Where the installed I/O configuration uses velocity inputs, apply calibrated simulated signals and verify measurement response.
• Acceleration-channel testing: Where applicable, test acceleration channels with controlled input signals.
• Signal-conditioning verification: Confirm the programmed filters and measurement channels respond according to the approved configuration.
• Gap-signal verification: For Proximitor inputs, verify the corresponding gap and dynamic vibration responses.
• Recorder-output testing: Verify applicable 4–20 mA outputs and scaling through representative operating values.
• Alarm-path testing: Simulate Alert and Danger conditions and confirm the configured relay/alarm response through the associated rack.
• Buffered-output testing: Where applicable, verify buffered transducer outputs and signal integrity.
• Host/rack communication test: Confirm communication with the 3500 rack interface and approved configuration environment.
• I/O load testing: Apply representative channel activity while monitoring signal stability, module temperature, and communications.
• Firmware verification: Record the installed firmware revision and compare it with the approved 3500/42M software requirements.
• Extended observation: Run multiple channels simultaneously under controlled simulated conditions to expose intermittent input, processing, or communication faults.
• Final QC release: Record complete part number, revision, firmware version, I/O configuration, channel results, alarm results, photographs, condition grade, test date, and QC authorization.

Published 3500/42M information specifies a 7.7 W typical power consumption, -24 VDC transducer supply, and user-configurable signal conditioning including radial-vibration filtering and recorder outputs.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/42M 176449-02 02U genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 176449-02 and 02U markings before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup time, and destination. Same-day shipment should only be confirmed after the actual monitor has been identified and released.

Q2. How do you guarantee the condition and authenticity of a 176449-02 02U?
Require exact part-number and revision verification, OEM visual inspection, PCB and connector inspection, controlled power-up, channel simulation, alarm testing, communications testing, and documented QC results. Photographs of the actual module and identification markings should remain with the procurement record.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. Published 3500/42M documentation defines minimum firmware and software revisions for the monitor and certain channel types. The installed firmware, 3500 software version, channel configuration, and I/O assembly should therefore be recorded before replacement.

Q4. Can any 3500/42M replace 176449-02 02U?
No. The complete configuration must be checked. Sensor type, rear I/O configuration, termination architecture, channel programming, firmware, and rack application all affect compatibility. A visually identical 3500/42M with a different I/O configuration should not be approved without engineering review.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, four-channel measurement performance, I/O conformity, firmware/configuration conformity, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual functional test record and define whether commissioning-stage failures are covered.
