Bently Nevada 3500/44M 140734-03 03B | Aero GT Vibration Monitor

• Brand: Bently Nevada
• Full Model Number: 3500/44M 140734-03 03B
• Lifecycle Status: Legacy / Lifecycle verification recommended
• Core Function: Four-channel Aero-derivative Gas Turbine Vibration Monitor
• Top 3 Technical Specs: 4 vibration channels | Up to 2 independent Keyphasor inputs | 7.7 W typical power consumption
• Stock & Condition: Physical stock confirmation required | New Surplus / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed vibration monitor on an aero-derivative gas turbine can remove several protection channels at once, making an exact hardware match important during a forced outage. Bently Nevada 3500/44M 140734-03 is a four-channel monitor specifically designed for aero-derivative gas turbine applications. Published technical data identifies support for one to four inputs, including signals from applicable interface modules, Velomitors, and accelerometers, plus up to two independent Keyphasor signals. A current equipment listing identifies the specific hardware as 140734-03B, which aligns with the 03B marking supplied here.

For an installed 3500/44M rack, replacing the exact monitor can avoid a broader redesign of vibration channels, alarm settings, field interfaces, and turbine commissioning procedures. The published specifications include approximately 7.7 W typical power consumption, input impedance above 95 kΩ for applicable Proximitor and acceleration inputs, buffered transducer outputs with short-circuit protection, and configuration through 3500 Rack Configuration Software. (For legacy aero-derivative turbine assets, physically verified spare stock can be valuable when an outage is already underway.) TCO should include turbine downtime, field engineering, configuration restoration, protection testing, and restart verification—not simply the replacement card price.

Module 4: Compatibility & Replacement Matrix

The 3500/44M is documented as a four-channel monitor for aero-derivative gas turbine applications. Current equipment records specifically associate part number 140734-03 with the 3500/44M and describe the unit as tested inventory; another record explicitly describes 140734-03B as the 4-channel Aero GT monitor.

Field Traps — Watch Out

• Hardware revision identification: Treat 140734-03B as a specific hardware marking and verify the complete nameplate before PO release. Do not substitute another 3500/44M revision solely because its base model is identical.
• Sensor and channel configuration: Record which channels use Velomitor, accelerometer, or interface-module inputs and preserve the existing configuration. The 3500/44M supports different input arrangements, so a successful power-up does not confirm application compatibility.

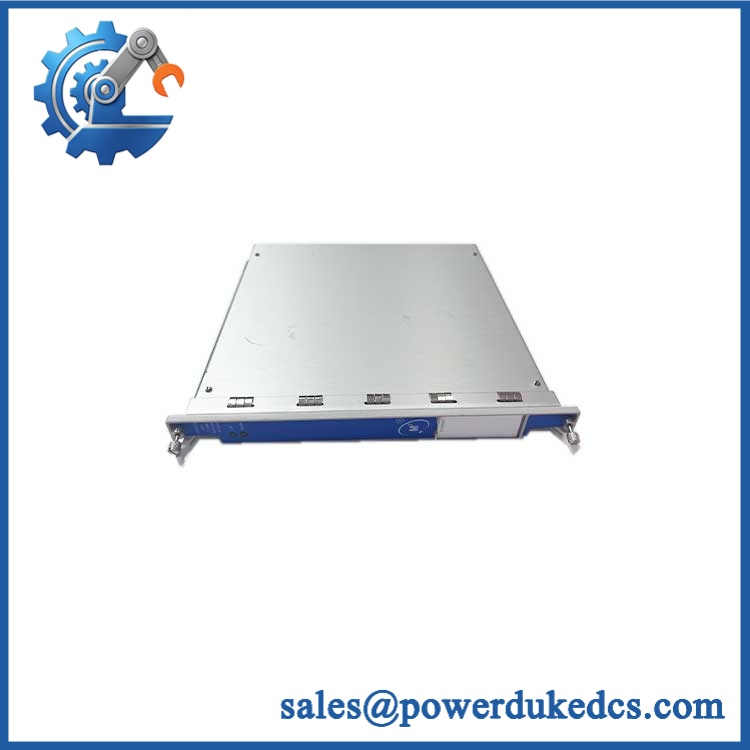

Bently Nevada 3500/44M 140734-03 03B

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 3500/44M 140734-03 03B should include:

• Identity verification: Confirm the complete 140734-03 part number, 03B hardware marking, 3500/44M designation, serial number, faceplate markings, and revision information.
• OEM anti-counterfeit visual inspection: Examine Bently Nevada identification, PCB markings, component placement, connectors, labels, solder quality, and evidence of unauthorized repair.
• Mechanical inspection: Check the card edge, housing, retaining hardware, front-panel indicators, connectors, and PCB surfaces for corrosion, cracks, contamination, or bent contacts.
• Power-on self-test (POST): Install the module in an approved 3500/44M test rack and verify startup diagnostics and normal status behavior.
• LED verification: Check applicable OK, TX/RX, and Bypass status indications under normal and simulated conditions.
• Channel 1–4 testing: Apply controlled vibration signals independently to all four channels.
• Sensor-interface testing: Verify applicable Velomitor, accelerometer, and interface-module input paths.
• Keyphasor test: Exercise the applicable Keyphasor inputs and verify correct recognition of the independent reference signals.
• Measurement verification: Confirm vibration measurements against calibrated input levels and the configured sensitivity.
• Alarm test: Simulate Alert and Danger conditions and verify correct alarm transitions.
• Buffered-output test: Verify transducer buffered outputs and check for abnormal noise, clipping, or intermittent response.
• I/O load testing: Exercise applicable output paths under controlled loads and monitor voltage, current, and thermal behavior.
• Rack communication test: Verify stable communication with the 3500 rack and configuration software.
• Configuration verification: Confirm channel assignments, measurement functions, alarm setpoints, bypass status, and Keyphasor assignments against the approved configuration.
• Extended run test: Monitor the module for resets, communication dropout, unstable measurements, abnormal temperature, or intermittent channel faults.
• Final QC: Record serial number, hardware marking, channel results, Keyphasor results, alarm results, configuration data, condition grade, photographs, and packaging approval.

Published specifications identify buffered transducer outputs, four-channel operation, Keyphasor support, and software-based configuration, so the QA process should verify the complete signal path rather than stopping after POST.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/44M 140734-03 03B genuinely in stock, and what is the cutoff for emergency shipping?
Current supplier records show 140734-03 inventory listed as available, including a tested unit described as in stock; another supplier states new units are available. Actual emergency availability should still be confirmed against the physical serial-numbered unit before PO release.

How do you verify the condition and authenticity of this legacy Aero GT monitor?
Require complete part-number and 03B marking verification, OEM visual inspection, PCB examination, power-up diagnostics, four-channel signal testing, Keyphasor testing, alarm simulation, rack communication testing, and documented final QC. The condition should be explicitly stated as New Surplus or Tested Refurbished.

Are there firmware or configuration issues I should warn my engineers about before issuing the PO?
The primary concern is configuration rather than simply the base model. Record channel assignments, sensor type, Keyphasor inputs, alarm setpoints, bypass status, and the existing 3500 Rack Configuration Software setup before replacement.

Can 140734-03B be installed as a direct replacement?
Yes, conditionally, when the installed application uses the same 3500/44M hardware configuration and the complete part and revision markings match. Post-installation validation of all four vibration channels and applicable Keyphasor signals is required.

What warranty and return terms should procurement require?
The quotation should specify the exact 3500/44M 140734-03 03B identification, condition grade, serial traceability, functional-test scope, warranty period, DOA coverage, and return authorization procedure. One current tested-unit listing specifies a 1-year warranty with a 30-day return guarantee, which provides a useful commercial benchmark, but the actual terms should be stated in the quotation.
