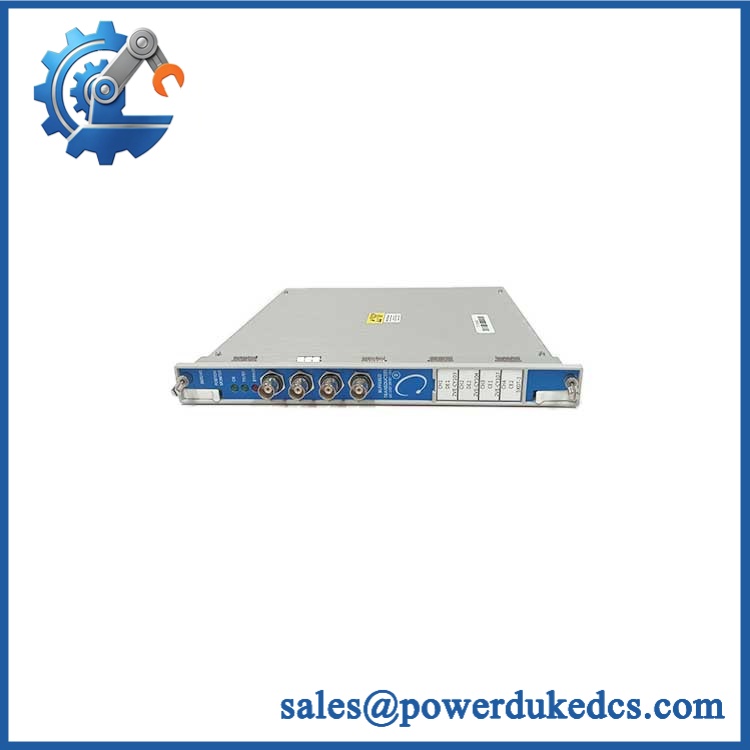

Bently Nevada 3500/45 176449-04 | Position Monitor Module

• Brand: Bently Nevada
• Full Model Number: 3500/45 176449-04
• Lifecycle Status: Active / Current Spare
• Core Function: Four-channel position monitoring for rotating and reciprocating machinery
• Top 3 Technical Specs: 4 channels; Proximity/RPT/DC LVDT/AC LVDT/rotary potentiometer support; +4 to +20 mA recorder output
• Stock & Condition: New surplus / tested refurbished — verify I/O module type and agency approval before PO

The 176449-04 is the spare part number for the Bently Nevada 3500/45 Position Monitor. The 3500/45 accepts up to four position-related transducer signals and supports applications including axial position, differential expansion, case expansion, valve position, and rotary position measurement.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/45 can remove several position-monitoring channels from a 3500 machinery-protection rack at once. The 176449-04 is the monitor electronics, not the field I/O termination assembly. Depending on the application, the monitor can work with proximity transducers, Rotary Position Transducers, DC LVDTs, AC LVDTs, or rotary potentiometers, so identifying the correct I/O hardware is essential before replacement.

From a TCO standpoint, replacing the failed monitor can retain the installed 3500 rack, field sensors, wiring, alarm strategy, and existing engineering documentation. That is generally less expensive than redesigning an entire position-monitoring channel. The main procurement constraint is configuration matching: the 3500/45 family uses different I/O modules for internal or external termination and for different transducer types. The 176449-04 should therefore be ordered together with a verified I/O configuration rather than treated as a universal four-channel replacement.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

I/O configuration mismatch: The 3500/45 has different I/O assemblies for Proximitor/RPT/DC LVDT, AC LVDT, and rotary potentiometer applications. Internal-termination and external-termination versions are also separate hardware. Verify the installed I/O part number before approving the monitor.

External termination hardware: When an external-termination I/O module is used, the applicable external termination blocks and cables are separate items. Replacing only the 176449-04 does not automatically provide those field-interface components.

Bently Nevada 3500/45 176449-04

Module 5: Quality Assurance & Testing SOP

The 176449-04 should undergo controlled monitor, channel, alarm, and output testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and hardware revision.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, front panel, connectors, terminals, mounting hardware, and enclosure.
• Check for corrosion, contamination, damaged contacts, cracked components, overheating, or unauthorized repair.

2. Configuration verification

• Confirm 3500/45 176449-04 identification.
• Record hardware and firmware information where available.
• Identify the associated I/O module.
• Verify internal or external termination.
• Identify the connected transducer family.
• Record applicable agency-approval configuration.
• Photograph all identification markings for traceability.

3. Power-on testing

• Install the monitor in a compatible 3500 test rack.
• Apply controlled rack power.
• Perform power-on self-test (POST).
• Check applicable OK/RUN/FAULT/TX/RX/BYPASS LEDs.
• Confirm normal module initialization.
• Verify rack communication without diagnostic faults.

4. Channel and protection testing

• Apply calibrated signals appropriate to the configured transducer type.
• Test all required channels individually.
• Verify measurement scaling and stability.
• Simulate applicable axial position, differential expansion, case expansion, or valve-position functions.
• Exercise programmed alarm thresholds.
• Verify relay and recorder-output behavior.
• Confirm the +4 to +20 mA proportional output where applicable.
• Perform I/O load testing on applicable output circuits.
• Run an extended operating test to identify intermittent channel faults.

5. Final QC

• Record each channel result, alarm transition, output measurement, firmware/revision, serial number, and test date.
• Confirm the monitor matches the specified I/O configuration.
• Generate a unit-specific Test Report.
• Verify connector and terminal integrity.
• Package using ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/45 176449-04 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual serial-numbered monitor, including condition, revision, and associated I/O configuration. Current commercial records show 176449-04 available from suppliers, although lead times vary by source. Emergency dispatch depends on completed QC, payment clearance, warehouse processing, and the courier cutoff.

How do you guarantee the condition and authenticity of surplus 176449-04 units?

Require complete part-number and serial-number verification, PCB inspection, controlled rack power-up, channel simulation, alarm testing, recorder-output verification, and a unit-specific Test Report. Actual photographs of the supplied monitor should be retained with the procurement record.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. The 3500/45 is a configurable monitor, so the installed firmware and rack configuration should be documented before replacement. Preserve channel assignments, transducer type, measurement function, alarm thresholds, output assignments, and configuration data before removing the failed unit. The monitor is configured through the 3500 Rack Configuration Software.

Can I reuse my existing 3500/45 I/O module with a replacement 176449-04?

Normally, yes, provided the existing I/O module is compatible with the replacement monitor and remains serviceable. The 3500/45 family has separate I/O assemblies for Proximitor/RPT/DC LVDT, AC LVDT, and rotary potentiometer applications, with internal and external termination variants. Verify the existing I/O part number before commissioning.

What warranty and return terms should procurement require?

Specify 3500/45 176449-04, serial number, hardware revision, associated I/O configuration, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include rack startup, all required measurement channels, alarm operation, and applicable analog-output verification.
