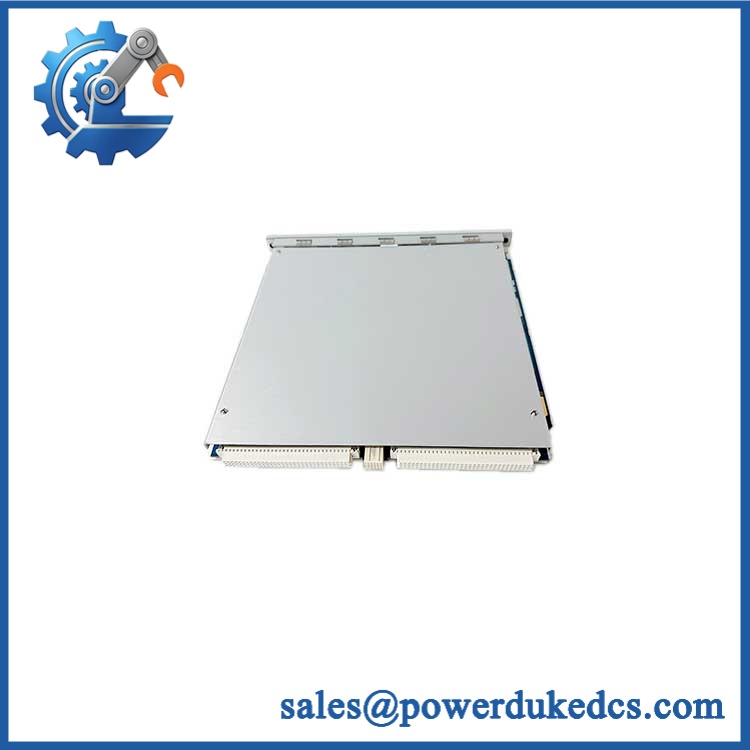

Bently Nevada 3500/50 133442-01 | Tachometer I/O Module

• Brand: Bently Nevada
• Full Model Number: 3500/50 133442-01
• Lifecycle Status: Legacy / Lifecycle-managed
• Core Function: 3500/50 Tachometer I/O Module with internal terminations
• Top 3 Technical Specs: 2-channel tachometer I/O; internal field terminations; compatible with proximity probes or magnetic pickups
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Emergency dispatch subject to order cutoff

The 133442-01 is the I/O Module with Internal Terminations associated with the Bently Nevada 3500/50M Tachometer Module. The published spare-parts table identifies 288062-02 as the 3500/50M monitor module and 133442-01 as its internal-termination I/O module. The 3500/50M uses two tachometer input channels to determine shaft speed, acceleration, direction, and zero-speed conditions.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 133442-01 can interrupt tachometer signal acquisition even when the 3500/50M monitor itself remains serviceable. This I/O assembly provides the field-side interface for the two-channel tachometer function, accepting signals from compatible proximity probes or magnetic pickups and routing them to the associated 3500/50M monitor. The 3500/50M can also distribute conditioned Keyphasor signals through the rack backplane for use by other monitors. For a legacy machinery-protection installation, obtaining the exact I/O variant can therefore be more practical than redesigning an established tachometer circuit.

The TCO case favors a like-for-like replacement when the existing rack, tachometer monitor, field wiring, and transducers remain usable. Replacing only the failed I/O assembly avoids unnecessary changes to sensor wiring, rack hardware, alarm configuration, and commissioning procedures. The critical procurement distinction is configuration: 133442-01 is the internal-termination I/O option, while 133434-01 is the external-termination version and 136703-01 is the internally terminated barrier version. Choosing the wrong variant can turn a straightforward spare replacement into a wiring and installation project — particularly where hazardous-area requirements apply.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• Internal versus external termination: The 133442-01 is the internal-termination version. The published 3500/50M ordering information separately lists 133434-01 for external terminations and 136703-01 for internal barriers plus internal terminations. Do not interchange these solely because the base model is the same.
• Sensor-type configuration: The 3500/50M can accept proximity probes or magnetic pickups, but the application matters. Published technical guidance identifies different minimum frequency characteristics for these sensor types. Verify the installed sensor and speed range before commissioning.

Bently Nevada 3500/50 133442-01

Module 5: Quality Assurance & Testing SOP

The 133442-01 should receive controlled electrical and rack-level testing before release.

• Incoming traceability: Record Bently Nevada markings, complete 133442-01 part number, revision, serial information, and available date-code data.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, connectors, internal terminal interfaces, component population, solder quality, and evidence of unauthorized rework.
• Mechanical inspection: Check module housing, rack connectors, mounting features, internal terminal hardware, and PCB condition.
• Power-on self-test (POST): Install with a compatible 3500/50M test assembly and verify normal startup and applicable status indications.
• Supply verification: Confirm rack power conditions and check abnormal current draw or thermal behavior.
• Channel 1 testing: Apply an approved tachometer signal from a compatible proximity-probe or signal simulator and verify correct signal acquisition.
• Channel 2 testing: Repeat the signal test independently for the second tachometer channel.
• Frequency-response test: Exercise representative tachometer frequencies across the applicable operating range.
• Speed calculation verification: Verify correct conversion of input pulses into shaft-speed data through the associated 3500/50M monitor.
• Direction and zero-speed testing: Where configured, simulate reverse rotation and zero-speed conditions and verify expected monitor response.
• I/O load testing: Exercise applicable output and signal paths under representative conditions while monitoring stability.
• Keyphasor verification: Where the associated 3500/50M is configured for Keyphasor distribution, verify the conditioned signal at the rack backplane.
• Configuration verification: Confirm the installed sensor type, pulses-per-revolution, alarm thresholds, delays, and channel assignments.
• Extended operation: Run the complete tachometer interface continuously while monitoring signal stability and diagnostic status.
• Final QC release: Record part number, revision, channel results, configuration data, test date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 3500/50 133442-01 genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier information shows mixed availability. One listing identifies the unit as out of stock with an estimated 8–14 week lead time, while other industrial listings advertise availability. For an emergency requirement, verify physical warehouse quantity, exact part number, condition, current identification photographs, and the same-day dispatch cutoff before releasing the PO.

2. How do you verify the condition and authenticity of this surplus tachometer I/O module?

Verification should begin with the complete 133442-01 identification and revision. Inspect the PCB, connectors, internal terminations, component condition, and mounting geometry, followed by controlled power-up and two-channel tachometer testing with an approved test source. Retain photographs, serial information, and measured results in the MRO record.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

The primary issue is 3500/50M configuration, rather than treating the I/O module as a standalone programmable device. The engineering team should verify the associated 288062-02 monitor, sensor type, pulses-per-revolution, speed range, alarm thresholds, and rack configuration. Published 3500/50 documentation also specifies firmware/software baselines for the tachometer system.

4. Can the 133442-01 replace the existing I/O module without hardware modification?

For an existing 3500/50M installation using the internal-termination configuration, a like-for-like 133442-01 replacement is normally a direct hardware change. Confirm the field termination arrangement first. An external-termination 133434-01 or barrier-equipped 136703-01 should not be substituted without engineering review.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 3500/50 133442-01, exact configuration, condition, revision, test status, warranty period, and return procedure. Warranty coverage should address DOA and verified I/O failure while excluding damage caused by incorrect sensor wiring, unsuitable rack power, external field faults, ESD, hazardous-area installation errors, or unauthorized modification.
