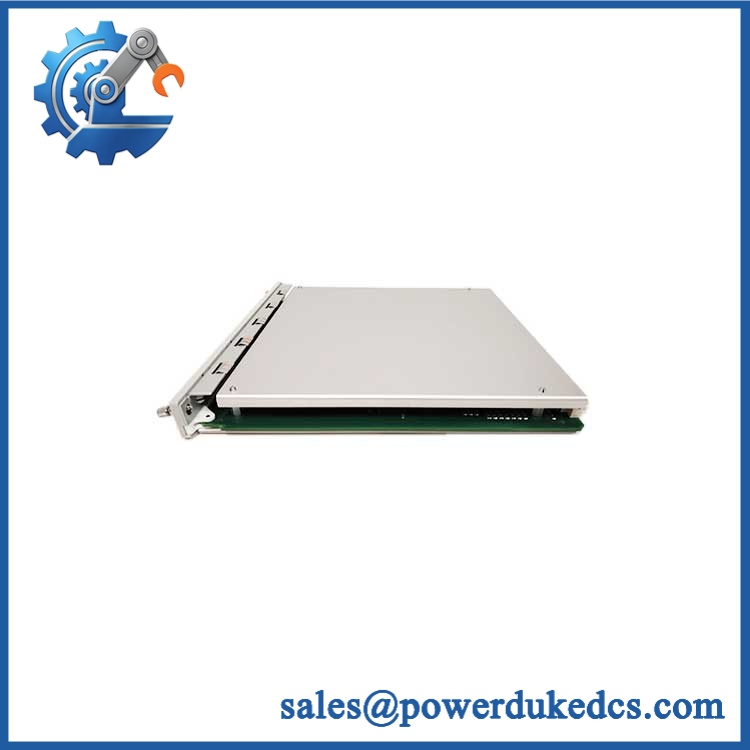

Bently Nevada 3500/60 163179-01 | Six Channel Temperature Monitor

Description

• Brand: Bently Nevada
• Full Model Number: 3500/60 163179-01
• Lifecycle Status: Active / Lifecycle-managed
• Core Function: Six-channel temperature monitoring for RTD and thermocouple inputs
• Top 3 Technical Specs: 6 channels; 10 MΩ input impedance per lead input; approximately 7 W nominal power consumption
• Stock & Condition: New Surplus / Tested Refurbished; Exact I/O configuration required; Emergency dispatch subject to physical stock confirmation

The 163179-01 is the Bently Nevada 3500/60 Temperature Monitor without recorder outputs. It provides six temperature-monitoring channels and accepts RTD or thermocouple inputs through a separately selected 3500/60 I/O module. The manufacturer datasheet lists 163179-01 specifically as the 3500/60 monitor without recorder outputs.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 163179-01 can remove up to six temperature-monitoring channels from an operating 3500 machinery-protection rack. The monitor conditions RTD and thermocouple signals and compares measured values with programmable alarm setpoints. Bently Nevada supports several 3500/60 I/O arrangements, including non-isolated RTD/TC I/O, isolated thermocouple I/O, and internally barriered configurations. Because the I/O assembly is selected separately from the monitor, the complete configuration has to be matched before procurement.

The TCO case is strongest when the existing rack, sensors, I/O module, and alarm architecture remain serviceable. A matching monitor preserves the installed measurement arrangement and avoids unnecessary changes to field wiring, alarm engineering, and rack configuration. The 3500/60 and 3500/61 provide the same temperature-monitoring functions, with the 3500/61 adding recorder outputs; therefore, replacing a 3500/60 with a 3500/61 solely because it is available can introduce an unnecessary configuration change.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• I/O module mismatch: The 163179-01 monitor does not define the field termination arrangement by itself. Supported I/O choices include 133819-01 for internal non-isolated RTD/TC termination, 133827-01 for external non-isolated termination, 133835-01 for isolated TC internal termination, 133843-01 for isolated TC external termination, and 136711-01 for internally barriered RTD/TC service.
• 3500/60 versus 3500/61: The 3500/61 provides six recorder outputs, while the 3500/60 does not. Do not substitute the recorder-equipped model without confirming the rack and application requirements.

Bently Nevada 3500/60 163179-01

Module 5: Quality Assurance & Testing SOP

The monitor should be tested together with a compatible 3500/60 I/O module because the field signal interface is configuration-dependent.

• Incoming traceability: Record Bently Nevada identification, complete 163179-01 part number, serial number, revision, and visible configuration information.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, connectors, components, solder quality, front panel, ejectors, and evidence of unauthorized repair.
• Mechanical inspection: Check card-edge connectors, mounting hardware, enclosure condition, and rack mating surfaces.
• Power-on self-test (POST): Install the monitor in an approved 3500 test rack and verify startup, OK/TX/RX/Bypass indications, and diagnostic behavior as applicable.
• Supply verification: Confirm rack power conditions and check for abnormal current draw or thermal rise.
• Six-channel input testing: Apply calibrated RTD and thermocouple simulation to all configured channels.
• Sensor-type verification: Confirm correct operation for the installed RTD or TC configuration through the matched I/O module.
• Temperature-range test: Exercise representative low, mid-range, and high temperature values within the configured measurement range.
• Alarm testing: Apply Alert and Danger threshold conditions and verify correct alarm-state response.
• I/O load testing: Exercise the complete monitor/I/O signal path under representative conditions and monitor stability.
• Configuration verification: Check channel assignments, sensor type, engineering units, alarm setpoints, filters, and other programmed parameters.
• Communication test: Verify rack communication and configuration access through the approved 3500 system software.
• TMR verification: Where used in a TMR installation, confirm the monitor arrangement follows the required three-module grouping.
• Extended operation: Run representative temperature signals continuously while monitoring readings, diagnostics, temperature, and intermittent faults.
• Final QC release: Record part number, revision, I/O module part number, channel results, alarm results, test date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 3500/60 163179-01 genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier information is inconsistent. One current listing reports in-stock availability with a 5–7 day delivery time, while another reports an estimated 12-week lead time. For an emergency requirement, physical warehouse quantity, exact revision, condition, and same-day dispatch cutoff should be confirmed before releasing the PO.

2. How do you guarantee the condition and authenticity of this surplus temperature monitor?

Verification should begin with the complete 163179-01 identification, serial information, PCB markings, connectors, front panel, and mechanical condition. Functional QA should include controlled power-up, six-channel temperature simulation, alarm testing, configuration verification, and rack communication. Keep photographs and measured results with the MRO receiving record.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

The primary concern is configuration and I/O compatibility. The 3500/60 is programmed through the 3500 Rack Configuration Software for RTD or thermocouple measurement, and the selected I/O module determines the field termination and isolation arrangement. Engineers should verify the I/O part number, sensor type, channel assignments, temperature ranges, alarm settings, and rack software baseline before installation.

4. Can the 163179-01 replace the existing 3500/60 monitor without hardware modification?

For an existing 163179-01 installation with a compatible 3500/60 I/O module, a like-for-like replacement normally does not require cabinet modification. The existing I/O configuration, sensor wiring, and channel configuration must still be matched. Where recorder outputs are required, the 3500/61 is the corresponding model family rather than the 3500/60.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 3500/60 163179-01, exact revision, matched I/O configuration, condition, test status, warranty period, and return procedure. Warranty coverage should address DOA and verified monitor failure while excluding damage caused by incorrect sensor wiring, incompatible I/O hardware, unsuitable rack power, configuration errors, ESD, or unauthorized modification.
