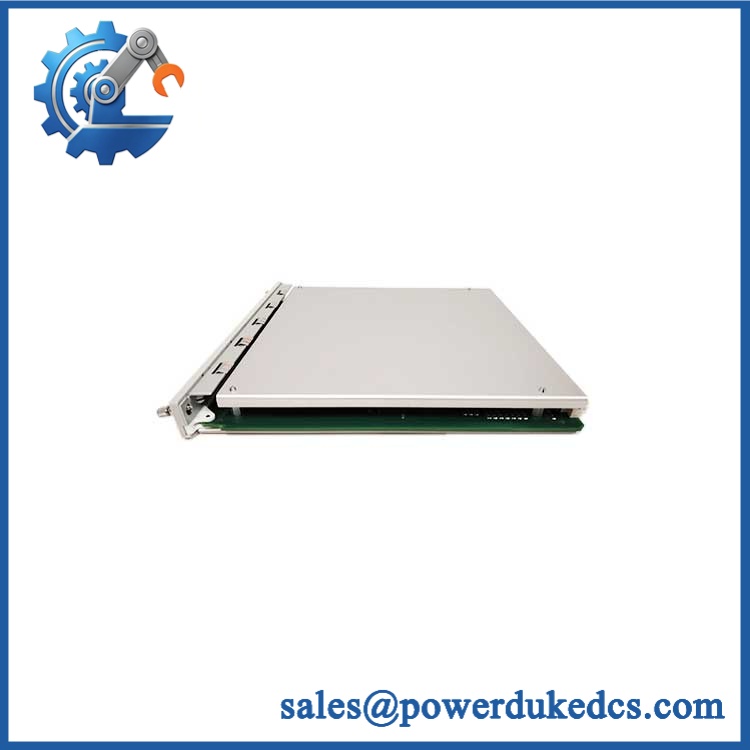

Bently Nevada 3500/64M 140734-05 | Dynamic Pressure Monitor

Description

• Brand: Bently Nevada
• Full Model Number: 3500/64M 140734-05
• Lifecycle Status: Active / Lifecycle verification recommended
• Core Function: Four-channel dynamic pressure monitoring for machinery protection
• Top 3 Technical Specs: 4 channels | Bandpass dynamic pressure measurement | Single-slot 3500 rack module
• Stock & Condition: Physical stock confirmation required | New Surplus / New Factory Stock / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed dynamic-pressure monitor can remove an important machinery-protection measurement from a 3500 rack, particularly on gas-turbine applications where combustion dynamics are being monitored. Bently Nevada 3500/64M 140734-05 is a single-slot, four-channel Dynamic Pressure Monitor. The manufacturer specifies that it accepts inputs from high-temperature pressure transducers, produces one bandpass dynamic-pressure measured variable per channel, and allows the bandpass corner frequencies and an additional notch filter to be configured through 3500 Rack Configuration Software.

For an operating 3500 installation, replacing the same 3500/64M configuration is usually a smaller TCO event than redesigning the pressure-monitoring chain. The existing rack, pressure transducers, alarm philosophy, and control-system interfaces can remain in place when the replacement configuration is matched. The 3500/64M also provides recorder outputs for control-system applications and buffered transducer outputs on the front panel. (For a planned outage, physically verified spare inventory can eliminate the delay associated with sourcing a legacy monitor.) The financial comparison should include downtime, field troubleshooting, configuration restoration, alarm testing, and recommissioning rather than the card price alone.

Module 4: Compatibility & Replacement Matrix

The manufacturer’s 3500/64M datasheet identifies the unit as a single-slot, four-channel monitor for high-temperature pressure-transducer inputs, with configurable bandpass filters and an additional notch filter.

Field Traps — Watch Out

• I/O variant mismatch: The 3500/64M is available with different I/O arrangements, including internal termination, external termination, and internal-barrier configurations. The rear I/O configuration must match the installed field wiring before approval.
• Filter and alarm configuration: The replacement monitor may power up normally while still having incorrect bandpass corner frequencies, notch-filter settings, or Alert/Danger setpoints. Preserve the existing configuration before removing the failed unit.

Bently Nevada 3500/64M 140734-05

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 3500/64M 140734-05 should include:

• Identity verification: Confirm complete 140734-05 part number, 3500/64M designation, serial information, faceplate markings, and hardware revision.
• OEM anti-counterfeit visual inspection: Examine Bently Nevada labels, PCB identification, components, connectors, solder quality, and evidence of unauthorized rework.
• Mechanical inspection: Check the housing, card edge, retaining hardware, front-panel connectors, and PCB surfaces for corrosion, cracks, contamination, or bent contacts.
• Power-on self-test (POST): Install the monitor in an approved 3500 test rack and verify normal startup diagnostics.
• LED verification: Confirm OK, TX/RX, and BYPASS status indications under normal and simulated conditions.
• Channel 1–4 testing: Apply calibrated dynamic-pressure signals independently to all four channels.
• Pressure-input verification: Test the intended pressure-transducer interface over representative operating points.
• Bandpass filter test: Verify configured low/high corner frequencies using controlled test signals.
• Notch-filter test: Where configured, verify the additional notch filter and confirm the expected attenuation behavior.
• Measurement verification: Compare displayed or calculated pressure values with calibrated test inputs.
• Alarm testing: Simulate configured Alert and Danger thresholds and verify the expected alarm transitions.
• Buffered-output testing: Verify each applicable front-panel buffered transducer output for signal integrity and short-circuit protection behavior.
• Recorder-output test: Verify the control-system recorder output and scaling against known input conditions.
• I/O load testing: Exercise applicable output paths under controlled representative loads while monitoring voltage, current, and temperature.
• Rack communication test: Confirm stable communication with the 3500 rack and configuration software.
• Extended run test: Monitor all four channels for signal drift, intermittent faults, resets, excessive noise, or communication loss.
• Final QC: Record serial number, hardware revision, channel-by-channel results, filter settings, alarm results, output measurements, condition grade, photographs, and packaging approval.

The manufacturer defines the 3500/64M as a protection monitor rather than a simple pressure transmitter interface; therefore, QC should verify measurement processing, alarm behavior, and filter configuration in addition to basic signal continuity.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/64M 140734-05 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 140734-05 part number before PO release. Current supplier records show this specific model listed as in stock, but emergency dispatch should be based on physically verified inventory, payment clearance, export documentation, and the carrier’s daily pickup cutoff.

How do you verify the condition and authenticity of this 3500/64M monitor?
Require complete part-number and serial verification, OEM visual inspection, PCB and connector examination, power-up diagnostics, four-channel pressure testing, alarm simulation, filter verification, recorder-output testing, and documented final QC. The condition should be explicitly identified as New Surplus, New Factory Stock, or Tested Refurbished.

Does 140734-05 include a specific rear I/O configuration?
The 3500/64M family supports several I/O configurations, including internal termination, external termination, and internal-barrier versions. The rear I/O hardware should therefore be checked against the existing installation before a replacement is approved.

Are there firmware or configuration issues I should warn my engineers about before issuing the PO?
The primary checks are the existing 3500/64M configuration, pressure-transducer type, channel assignments, bandpass filter settings, notch-filter settings, alarm setpoints, recorder-output configuration, and rear I/O arrangement. The manufacturer specifies software configuration of the dynamic-pressure filters, so those settings should be captured before replacement.

What warranty and return terms should procurement require?
The quotation should specify the exact 3500/64M 140734-05 part number, condition grade, serial traceability, four-channel functional-test scope, warranty period, DOA coverage, and return authorization procedure. Current supplier listings advertise 12-month warranty coverage on this model, which can serve as a commercial benchmark; the actual warranty should be stated in writing.
