Bently Nevada 3500/64M 176449-05 | Dynamic Pressure Monitor

• Brand: Bently Nevada
• Full Model Number: 3500/64M 176449-05
• Lifecycle Status: Active / Current Spare
• Core Function: Four-channel dynamic pressure monitoring for machinery protection
• Top 3 Technical Specs: 4 channels; bandpass dynamic-pressure measurement; configurable corner and notch filters
• Stock & Condition: New surplus / tested refurbished — verify I/O module and pressure-transducer configuration before PO

The 176449-05 is the specified spare part for the Bently Nevada 3500/64M Dynamic Pressure Monitor. The monitor occupies one 3500 rack slot, accepts four high-temperature pressure-transducer inputs, and provides alarm functions plus recorder output for control-system applications.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/64M can remove up to four dynamic-pressure measurement channels from a machinery-protection rack, leaving pressure transducers and field wiring without a functioning monitoring interface. The 176449-05 is the monitor electronics, not the rear I/O assembly. The 3500/64M processes bandpass dynamic pressure and allows the bandpass corner frequency and an additional notch filter to be configured through the 3500 Rack Configuration Software.

For TCO, replacing the failed monitor can retain the existing 3500 rack, pressure sensors, termination hardware, alarm philosophy, and control-system wiring. That is usually less expensive than redesigning the entire measurement channel. The procurement check is configuration-specific: Bently Nevada documents separate I/O options, including 140471-02 for internal termination and 140482-02 for external termination, while cylinder-pressure applications use a separate I/O assembly. Match the existing I/O configuration before issuing the PO — particularly where a shutdown or alarm circuit depends on the monitored pressure.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

I/O configuration mismatch: The 3500/64M uses different rear I/O assemblies depending on termination and application. Bently Nevada lists 140471-02 as the internal-termination I/O module and 140482-02 as the external-termination I/O module. These should not be treated as interchangeable without reviewing the field wiring.

Dynamic-pressure configuration: The monitor’s measured variable is bandpass dynamic pressure, with configurable corner frequencies and an additional notch filter. Replacing the hardware without restoring the existing configuration can change the measured response even though the module passes its startup diagnostics.

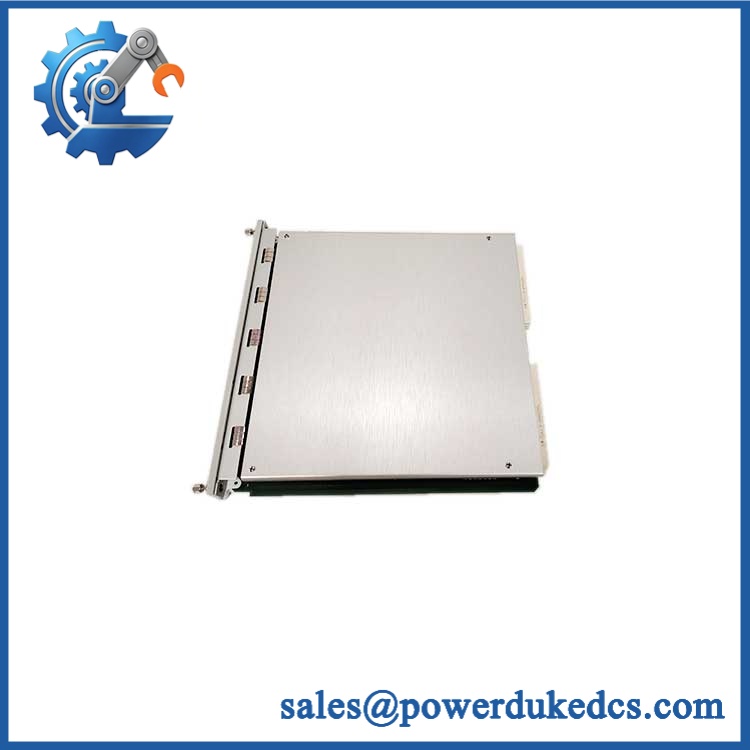

Bently Nevada 3500/64M 176449-05

Module 5: Quality Assurance & Testing SOP

The 176449-05 should undergo controlled electrical, signal, alarm, and rack-integration testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and hardware revision.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, front panel, connectors, terminals, and mounting hardware.
• Check for corrosion, contamination, damaged contacts, cracked components, thermal damage, or unauthorized repair.

2. Configuration verification

• Confirm 3500/64M 176449-05 identification.
• Record hardware and firmware information where available.
• Identify the associated I/O module.
• Verify internal or external termination.
• Confirm the intended high-temperature pressure-transducer application.
• Photograph all identification markings for traceability.

3. Power-on testing

• Install the monitor in a compatible 3500 test rack.
• Apply controlled rack power.
• Perform power-on self-test (POST).
• Check applicable OK/RUN/FAULT/TX/RX/BYPASS status indications.
• Confirm normal initialization.
• Verify the host rack recognizes the monitor without hardware alarms.

4. Pressure-channel testing

• Connect calibrated dynamic-pressure simulators appropriate to the installed application.
• Test all four channels individually.
• Verify channel identification and signal scaling.
• Check configured bandpass response.
• Verify corner-frequency and notch-filter behavior where applicable.
• Exercise Alert and Danger setpoints.
• Verify relay/alarm behavior and reset operation.
• Verify recorder output where fitted.
• Perform I/O load testing on applicable output circuits.
• Run an extended signal test to identify intermittent channel faults.

5. Final QC

• Record all four channel results, alarm transitions, filter settings, output measurements, hardware revision, serial number, and test date.
• Confirm the monitor matches the specified I/O configuration.
• Generate a unit-specific Test Report.
• Verify connector and terminal integrity.
• Package using ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/64M 176449-05 genuinely in stock, and what is the emergency-shipping cutoff?

Current commercial listings show 176449-05 as available from some suppliers, although reported lead times vary from immediate availability to several months. Physical allocation should therefore be confirmed against the actual serial-numbered unit before the PO is released. Emergency shipment depends on QC completion, payment/order clearance, warehouse processing, and the courier cutoff.

How do you guarantee the condition and authenticity of surplus 176449-05 units?

Require complete part-number and serial-number verification, PCB inspection, controlled rack power-up, four-channel pressure-signal testing, alarm verification, recorder-output testing where applicable, and a unit-specific Test Report. Actual photographs of the supplied monitor should be retained with the procurement record.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. The 3500/64M is a configurable monitor, so engineers should record firmware, channel assignments, filter settings, alarm thresholds, and rack configuration before removing the failed unit. The bandpass corner frequencies and additional notch filter are configured through the 3500 Rack Configuration Software.

Can I reuse my existing 3500/64M I/O module with a replacement 176449-05?

Yes, provided the existing I/O module is the correct configuration and remains serviceable. Bently Nevada lists different I/O assemblies for internal termination, external termination, and cylinder-pressure applications. Verify the exact installed I/O part number before commissioning.

What warranty and return terms should procurement require?

Specify 3500/64M 176449-05, serial number, hardware revision, associated I/O module, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include rack startup, all required pressure channels, configured alarm behavior, and recorder-output verification where applicable.
