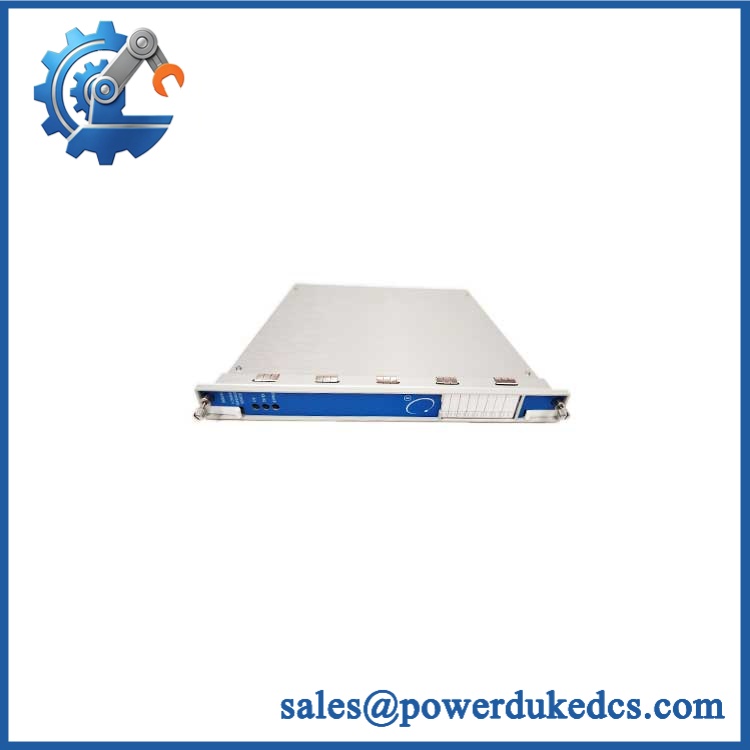

Bently Nevada 3500/65 145988-02 02D | Temperature Monitor

• Brand: Bently Nevada
• Full Model Number: 3500/65 145988-02 02D
• Lifecycle Status: Active / Lifecycle-managed
• Core Function: 16-channel temperature monitoring
• Top 3 Technical Specs: 16 RTD or isolated-tip TC channels; 1°C / 1°F resolution; ±3°C accuracy at +25°C
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Version 02D verification required

The 145988-02 is the Bently Nevada 3500/65 16-Channel Temperature Monitor. It accepts RTD and isolated-tip thermocouple inputs and is programmed through 3500 Rack Configuration Software. The 02D designation should be treated as the physical revision/version identifier and verified against the installed unit before procurement. Published technical data specifies six advantages of the architecture: up to 16 temperature channels, RTD current sourcing, 1°C or 1°F resolution, and approximately ±3°C accuracy at 25°C.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 145988-02 can remove as many as sixteen temperature measurement channels from a Bently Nevada 3500 rack. That can affect bearing, winding, lube-oil, process, or other temperature points that feed alarm and protection logic. The monitor supports isolated-tip thermocouples, 3-wire RTDs, and 4-wire RTDs, with channel configuration handled through the 3500 system software. The exact revision remains important because the monitor works together with a separately selected I/O module.

From a TCO standpoint, an exact replacement keeps the existing rack, field sensors, termination arrangement, alarm setpoints, and engineering database in place. That avoids rewiring sixteen channels or replacing a functioning monitoring system simply because one monitor has failed. There is a firmware consideration for newer I/O revisions: the 3500/65 documentation states that certain newer I/O revisions require the monitor to be upgraded to the latest released firmware, and the I/O module must be removed before the monitor firmware upgrade. This makes a pre-PO revision check essential.

Bently Nevada 3500/65 145988-02 02D

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• 02D revision control: Verify the complete 145988-02 02D identification against the installed monitor. Do not approve an earlier or later revision solely because the base 145988-02 number matches.
• I/O firmware dependency: The 3500/65 documentation states that when certain newer I/O revisions are installed, the monitor must be upgraded to the latest released firmware. The I/O module must be removed before that firmware upgrade; otherwise an I/O Module Mismatch and 562 ADC Failure can appear in the System Event List.

Module 5: Quality Assurance & Testing SOP

The monitor should be tested together with the exact 3500/65 I/O configuration planned for field installation.

• Incoming traceability: Record Bently Nevada identification, 145988-02, 02D revision, serial number, and all visible configuration markings.
• OEM anti-counterfeit visual inspection: Inspect labels, PCB markings, connectors, components, solder quality, front panel, ejectors, and evidence of unauthorized repair.
• Mechanical inspection: Verify card-edge connectors, retention hardware, enclosure condition, and rack mating surfaces.
• Power-on self-test (POST): Install in an approved 3500/65 test rack and verify startup, OK, TX/RX, and Bypass indications.
• Supply verification: Confirm rack power conditions and check current draw and thermal behavior.
• 16-channel input testing: Exercise each configured channel individually using calibrated RTD and isolated-tip TC simulation.
• RTD test: Verify representative 3-wire and 4-wire RTD configurations where applicable.
• Thermocouple test: Verify applicable isolated-tip TC types and correct temperature conversion.
• Resolution check: Confirm configured display resolution of 1°C or 1°F.
• Accuracy verification: Compare representative test points against calibrated references and confirm the specified accuracy range.
• Alarm testing: Exercise Alert and Danger setpoints and verify correct status and relay response through the complete system.
• I/O compatibility test: Confirm the monitor recognizes the installed 3500/65 I/O module without mismatch diagnostics.
• Firmware verification: Check monitor firmware against the installed I/O revision and approved site baseline.
• Configuration recovery test: Verify channel assignments, sensor types, engineering units, filters, and alarm settings.
• Extended operation: Run representative channels continuously while monitoring temperature, drift, diagnostics, and intermittent faults.
• Final QC release: Record monitor revision, I/O revision, channel results, firmware status, alarm results, test date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 3500/65 145988-02 02D genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier listings show 145988-02 as commercially available, with one listing reporting in stock and another quoting an estimated 1–10 working days. Exact 02D revision availability should be confirmed separately because inventory may contain different hardware revisions. For emergency procurement, confirm physical quantity, revision, current identification photos, and the daily dispatch cutoff before releasing the PO.

2. How do you guarantee the condition and authenticity of this surplus temperature monitor?

Verification should begin with the complete 145988-02 02D identification, serial information, PCB markings, connectors, front panel, and mechanical condition. Functional QA should then cover power-up, all configured temperature channels, RTD/TC simulation, alarm behavior, rack communication, and I/O recognition. The measured results should remain attached to the unit’s MRO record.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. This is the main technical approval point. The 3500/65 documentation states that certain newer I/O revisions require a current monitor firmware release, and the I/O module must be removed before the firmware upgrade. Failure to follow that sequence can produce an I/O Module Mismatch and 562 ADC Failure. Engineers should compare the installed I/O revision with the proposed monitor revision before the PO is finalized.

4. Can the 145988-02 02D replace the existing 3500/65 monitor without hardware modification?

For a like-for-like 145988-02 replacement with a compatible I/O module and rack configuration, cabinet modification is normally unnecessary. The important checks are the monitor revision, I/O type, sensor configuration, firmware baseline, and existing channel programming. In TMR installations, the 3500/65 documentation requires temperature monitors to be installed as groups of three adjacent units.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 3500/65 145988-02 02D, exact revision, matched I/O configuration, condition, firmware status, test results, warranty period, and return procedure. Warranty coverage should address DOA and verified monitor failure while excluding damage caused by incorrect rack power, incompatible I/O revisions, faulty RTD/TC wiring, incorrect configuration, ESD, or unauthorized firmware changes.
