Bently Nevada 3500/77M 176449-07 | Reciprocating Pressure Monitor

• Brand: Bently Nevada
• Full Model Number: 3500/77M 176449-07
• Lifecycle Status: Active / Supported Spare
• Core Function: Reciprocating compressor cylinder-pressure monitoring and alarm processing
• Top 3 Technical Specs: 1–4 pressure-transducer channels; 0–5.5 kHz frequency response; 50 kΩ cylinder-pressure input impedance
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 3500/77M 176449-07 can remove cylinder-pressure monitoring from a reciprocating-compressor protection system while the rest of the 3500 rack remains operational. The 176449-07 is the 3500/77M Reciprocating Cylinder Pressure Monitor, supporting one to four pressure-transducer inputs and calculating compressor variables such as suction pressure, discharge pressure, maximum and minimum pressure, compression ratio, rod compression, rod tension, and rod reversal. Published specifications state a 0–5.5 kHz frequency response, 50 kΩ cylinder-pressure input impedance, and operation from −30°C to +65°C.

For a running compressor package, replacing the failed 176449-07 can be much less expensive than redesigning the entire cylinder-pressure monitoring chain. Existing 3500 rack infrastructure, approved pressure transducers, alarm strategy, field wiring, and established maintenance procedures can remain in service when the replacement configuration is matched. The economic benefit comes from avoiding additional panel engineering, software redevelopment, commissioning, and prolonged outage labor. —One important constraint remains: the monitor and its cylinder-pressure I/O are separate orderable components, and the internal- and external-termination versions are not interchangeable without reviewing the field connection arrangement.

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s published spare-parts information lists 176449-07 as the 3500/77M Cylinder Pressure Monitor, 143729-01 as the internal-termination cylinder-pressure I/O module, and 143737-01 as the external-termination version.

Estimated switch cost/time: With a tested spare already staged at the facility, plan approximately 2–6 hours for controlled replacement, I/O verification, configuration loading, pressure-signal testing, and alarm checkout. A newly sourced unit may require 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• Internal vs. external termination: 143729-01 and 143737-01 serve different field-termination arrangements. External termination requires the appropriate termination blocks and cables.
• Firmware baseline: Published 3500/77M documentation specifies Monitor Firmware Revision L, 3500/01 Version 3.00, 3500/02 Version 2.30, and 3500/03 Version 1.30, or later. Confirm the installed versions before replacement.
• Pressure-transducer matching: The 3500/77M is intended for Bently Nevada-approved pressure transducers. A generic transmitter should not be assumed compatible without checking input characteristics.
• Monitor vs. complete assembly: 176449-07 is the monitor itself. The cylinder-pressure I/O hardware is separately identified. Confirm the exact procurement scope before issuing the PO.

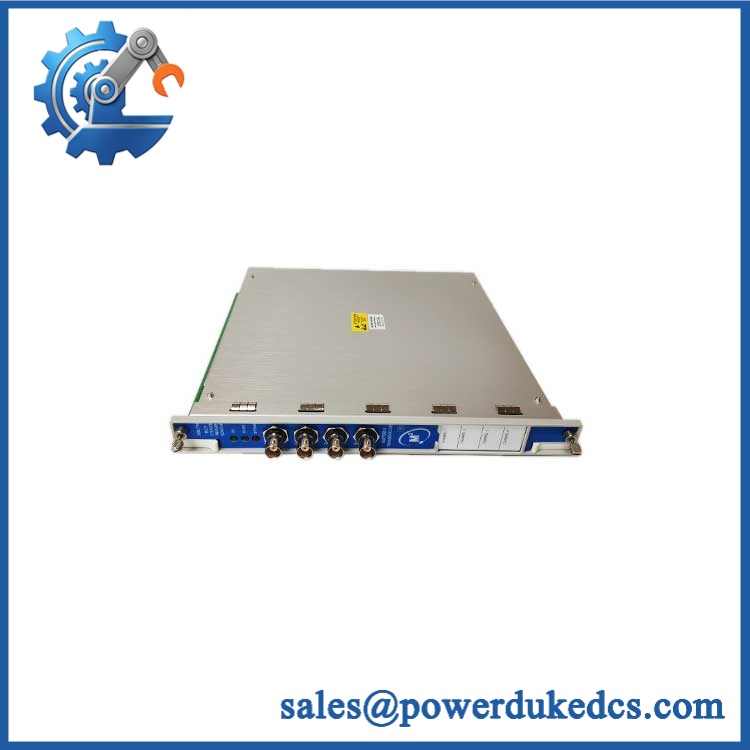

Bently Nevada 3500/77M 176449-07

Module 5: Quality Assurance & Testing SOP

The 176449-07 should be qualified as a pressure-measurement and compressor-monitoring device. A normal boot sequence is only the first checkpoint.

• Part-number verification: Confirm 3500/77M, 176449-07, revision, serial number, and Bently Nevada identification.
• OEM anti-counterfeit visual inspection: Inspect manufacturer markings, PCB identifiers, front-panel construction, connectors, and evidence of unauthorized rework.
• Physical condition inspection: Check the enclosure, card-edge connector, front panel, mounting hardware, and PCB surfaces for corrosion, contamination, impact damage, or thermal discoloration.
• I/O configuration verification: Confirm whether the system uses 143729-01 internal termination or 143737-01 external termination.
• Pressure-transducer compatibility check: Verify the approved pressure-transducer type and intended compressor application.
• Continuity testing: Check applicable power, ground, input, and signal paths before energization.
• Power-on self-test (POST): Install the monitor in a compatible 3500 rack and verify startup behavior and module recognition.
• Status indication check: Verify normal OK, communication, and bypass indications where applicable.
• Four-channel pressure testing: Apply calibrated simulated pressure signals independently to each configured channel.
• Pressure-scaling verification: Confirm correct conversion from transducer signal to engineering units.
• Peak-pressure testing: Apply representative cylinder-pressure waveforms and verify maximum-pressure calculations.
• Minimum-pressure testing: Verify minimum-pressure calculations under controlled simulated cycles.
• Suction/discharge verification: Simulate representative pressure conditions and verify corresponding measured variables.
• Compression-ratio testing: Apply controlled pressure relationships and verify calculated compression ratio.
• Rod-load verification: Where configured, verify rod compression and rod tension calculations against known simulated pressure profiles.
• Rod-reversal testing: Apply representative cyclic pressure waveforms and verify degree-of-rod-reversal calculations.
• Frequency-response testing: Exercise the input with representative dynamic signals within the applicable bandwidth.
• Alarm testing: Simulate Alert and Danger conditions and verify the configured alarm response.
• Alarm-delay testing: Verify configured delays using controlled pressure transitions.
• Recorder-output testing: Where configured, verify proportional output behavior and scaling.
• Communications test: Confirm rack communication and configuration access through the approved 3500 software environment.
• I/O load testing: Operate multiple channels simultaneously under representative signal conditions while monitoring stability and thermal behavior.
• Extended observation: Run repeated simulated compressor cycles to identify intermittent input, calculation, communication, or alarm faults.
• Final QC release: Record configuration, firmware/software revisions, pressure-channel results, alarm results, photographs, condition grade, test date, and QC authorization.

Published specifications state that each channel can provide eight measured variables related to cylinder pressure operation. The monitor is intended for continuous comparison of configured variables against user-programmable alarm setpoints, making end-to-end simulated pressure testing particularly important before release.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/77M 176449-07 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 176449-07 part number before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup time, and destination. Same-day shipment should only be confirmed after the specific monitor has been physically identified and released.

Q2. How do you guarantee the condition and authenticity of a 176449-07?
Require exact part-number and revision verification, OEM visual inspection, PCB and connector inspection, controlled power-up, calibrated four-channel pressure simulation, alarm testing, communications checks, and a documented QC record. For surplus or refurbished stock, retain photographs of the actual module and identification markings.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. Published 3500/77M documentation specifies minimum firmware and software revisions, including Monitor Firmware Revision L, 3500/01 3.00, 3500/02 2.30, and 3500/03 1.30 or later. Record the installed versions before replacement and confirm the replacement configuration before commissioning.

Q4. Does 176449-07 include the cylinder-pressure I/O module?
Not as a generic assumption. Bently Nevada separately identifies 143729-01 for internal terminations and 143737-01 for external terminations. Confirm whether the purchasing requirement is the monitor alone or the complete monitor-and-I/O assembly.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, four-channel pressure-measurement performance, alarm-function coverage, configuration and firmware conformity, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual pressure-channel test record and define whether commissioning-stage failures are covered.
