Bently Nevada 3500/77M 176449-07 | Recip Cylinder Pressure Monitor

Description

• Brand: Bently Nevada
• Full Model Number: 3500/77M 176449-07
• Lifecycle Status: Active / Current 3500 Series
• Core Function: Four-channel reciprocating compressor cylinder-pressure monitoring
• Top 3 Technical Specs: 4 pressure channels; 3500/77M full-height monitor; Measures suction pressure, discharge pressure, maximum/minimum pressure, compression ratio, rod compression/tension, and rod reversal
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 3500/77M 176449-07 can remove four cylinder-pressure measurement channels from a reciprocating-compressor protection system, affecting both machine protection and compressor-performance diagnostics. The 176449-07 is the 3500/77M Recip Cylinder Pressure Monitor, a full-height 3500 module that accepts 1 to 4 approved pressure-transducer inputs. Depending on configuration, the monitor calculates variables including suction pressure, discharge pressure, maximum and minimum cylinder pressure, compression ratio, peak rod compression, peak rod tension, and degree of rod reversal.

For an operating compressor train, replacing the failed 176449-07 can cost materially less than rebuilding the pressure-monitoring architecture around another platform. Existing 3500 rack hardware, approved pressure transducers, field wiring, alarm strategy, and established diagnostic procedures can remain in service when the replacement is correctly configured. The 3500/77M also integrates with Bently Nevada System 1 for compressor condition and performance analysis, so restoring the installed monitor can avoid a wider software and commissioning project. —The critical procurement point is the I/O configuration: the 3500/77M supports internal-termination and external-termination pressure I/O modules, with different ordering configurations and installation requirements.

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s published 3500/77M documentation identifies 176449-07 as the 3500/77M monitor, 143729-01 as the internal-termination cylinder-pressure I/O module, and 143737-01 as the external-termination version.

Estimated switch cost/time: With a tested spare already at the facility, plan approximately 2–6 hours for controlled module replacement, I/O verification, configuration loading, pressure-signal checkout, and alarm testing. A sourced replacement may add 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• Internal vs. external termination: 143729-01 is the internal-termination I/O option, while 143737-01 uses external terminations. External termination requires the appropriate termination blocks and cables.
• Pressure-transducer compatibility: The 3500/77M is intended for Bently Nevada-approved pressure transducers. Do not assume any generic cylinder-pressure transmitter will produce the correct signal characteristics.
• Firmware baseline: Published requirements for the 3500/77M include Monitor Firmware Revision L, 3500/01 software Version 3.00, 3500/02 Version 2.30, and 3500/03 Version 1.30, or later. Record the installed versions before replacement.
• Cable and termination configuration: External-termination configurations require dedicated termination hardware and cables. A monitor with the wrong I/O arrangement can fit the rack and still be unsuitable for the installed field wiring.

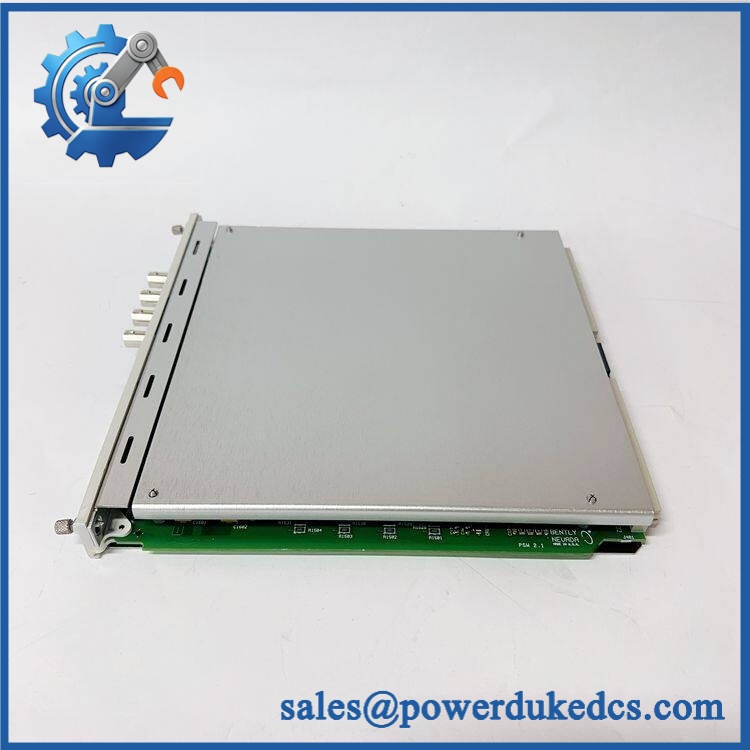

Bently Nevada 3500/77M 176449-07

Module 5: Quality Assurance & Testing SOP

The 176449-07 should be qualified as a complete pressure-measurement and protection channel. A normal power-up is only the first checkpoint.

• Part-number verification: Confirm 3500/77M, 176449-07, revision, serial number, and Bently Nevada identification.
• OEM anti-counterfeit visual inspection: Inspect manufacturer markings, PCB identifiers, front-panel construction, connectors, and evidence of unauthorized rework.
• Physical condition inspection: Check the enclosure, edge connector, mounting hardware, front-panel interface, and PCB surfaces for corrosion, contamination, impact damage, or thermal discoloration.
• I/O configuration verification: Confirm the installed cylinder-pressure I/O module and determine whether the system uses internal or external termination.
• Transducer compatibility check: Verify the pressure-transducer model and intended compressor-cylinder application.
• Continuity testing: Check applicable power, ground, input, and signal paths before energization.
• Power-on self-test (POST): Install the monitor in a compatible 3500 rack and verify startup sequence, module recognition, and normal operating status.
• Status LED verification: Check the applicable OK, communication, and bypass indications during startup and test operation.
• Four-channel pressure testing: Apply calibrated simulated pressure signals independently to channels 1 through 4.
• Pressure-scaling verification: Confirm each channel converts the simulated transducer input to the correct engineering units.
• Maximum-pressure test: Apply representative simulated cylinder-pressure profiles and verify correct peak-pressure measurement.
• Minimum-pressure test: Verify correct minimum-pressure calculation under controlled input conditions.
• Suction/discharge pressure test: Where configured, simulate representative suction and discharge conditions and verify the corresponding measured variables.
• Compression-ratio verification: Apply controlled pressure relationships and confirm the calculated compression ratio.
• Rod-load calculations: Where configured, verify peak rod compression and peak rod tension calculations against the simulated pressure profile.
• Rod-reversal test: Apply representative pressure-cycle waveforms and verify degree-of-rod-reversal calculations.
• Alarm testing: Simulate Alert and Danger conditions and confirm the configured alarm response.
• Alarm-delay testing: Verify programmed time delays using controlled pressure transitions.
• Recorder-output testing: Where configured, verify the applicable proportional output and scaling.
• Communications test: Confirm rack communication and configuration access through the approved 3500 software environment.
• System 1 data test: Where the site uses System 1, verify successful transfer of representative monitor data.
• I/O load testing: Operate multiple channels simultaneously under representative signal conditions while monitoring stability, power consumption, and temperature.
• Extended observation: Run repeated simulated compressor cycles to identify intermittent inputs, calculation errors, communication faults, or alarm instability.
• Final QC release: Record exact configuration, firmware/software versions, transducer interface, four-channel test results, alarm results, photographs, condition grade, test date, and QC authorization.

Bently Nevada documentation specifies that the 3500/77M is a four-channel monitor and supports a broad set of reciprocating-compressor pressure variables. The published spare-parts table lists 176449-07 as the monitor itself and identifies the applicable internal- and external-termination I/O assemblies separately.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/77M 176449-07 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be verified against the exact 176449-07 part number before the PO is accepted. Emergency dispatch depends on QA completion, warehouse location, carrier pickup time, and destination. Same-day shipment should only be confirmed after the actual monitor has been physically identified and released.

Q2. How do you guarantee the condition and authenticity of a 176449-07?
Require exact part-number and revision verification, OEM visual inspection, PCB and connector inspection, controlled power-up, four-channel pressure simulation, alarm testing, communications testing, and documented QC results. For surplus or refurbished inventory, retain photographs of the actual monitor and identification markings.

Q3. Are there firmware compatibility issues engineers should check before issuing the PO?
Yes. Bently Nevada’s published 3500/77M requirements specify Firmware Revision L for the monitor plus minimum versions of 3500/01 3.00, 3500/02 2.30, and 3500/03 1.30 or later. Record the site’s installed revisions before replacement and verify the replacement configuration before commissioning.

Q4. Does 176449-07 include the cylinder-pressure I/O module?
The published spare-parts table identifies 176449-07 as the 3500/77M Cylinder Pressure Monitor and separately lists 143729-01 for internal terminations and 143737-01 for external terminations. The procurement package should therefore state whether the requirement is the monitor alone or the complete monitor-and-I/O assembly.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, four-channel pressure-measurement performance, alarm-function coverage, configuration and firmware conformity, return authorization, inspection period, and serial-number traceability. For refurbished inventory, require the actual pressure-channel test record and define whether failures discovered during commissioning are covered.
