Bently Nevada 3500/91 161204-01 | EGD Communication Gateway

Description

• Brand: Bently Nevada
• Full Model Number: 3500/91 161204-01
• Lifecycle Status: Legacy / Lifecycle verification recommended
• Core Function: Ethernet Global Data communication gateway for the 3500 Machinery Protection System
• Top 3 Technical Specs: EGD protocol | Ethernet TCP/IP network interface | 3500/22M TDI rack data interface
• Stock & Condition: Physical stock confirmation required | New Surplus / New Factory Stock / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 3500/91 gateway can leave the machinery protection rack functioning locally while preventing critical measurement and status data from reaching the plant network. Bently Nevada 161204-01 is the 3500/91 EGD Communication Gateway Module, designed to transfer data from a 3500 rack to an Ethernet-based host system using Ethernet Global Data. The gateway works through the 3500/22M Transient Data Interface, which provides access to the rack’s monitor data. For procurement, the complete part number matters because the 3500/91 family uses separate main gateway and Ethernet I/O hardware.

Replacing the same 161204-01 configuration can preserve existing 3500 monitor modules, host-side data architecture, and network engineering. That is usually a lower-TCO event than changing the entire communications path or remapping hundreds of plant data points. The 3500/91 documentation specifies the associated TDI and software requirements, while the Ethernet I/O module is selected separately according to the required copper or fiber interface.(For a legacy control-network component, verified physical inventory can eliminate a procurement delay during a planned outage.) The financial comparison should include DCS/PLC engineering, network testing, configuration recovery, commissioning, and lost production time.

Module 4: Compatibility & Replacement Matrix

The 3500/91 documentation identifies 161204-01 as the EGD Gateway Module and lists separate Ethernet I/O assemblies for copper and fiber implementations. This means a replacement PO should capture the main gateway part number and the existing rear I/O configuration rather than treating “3500/91” as a complete hardware description.

Field Traps — Watch Out

• Ethernet I/O mismatch: Verify whether the installed gateway uses the copper 10BASE-T/100BASE-TX I/O or the 100BASE-FX fiber I/O. A matching 161204-01 main module does not automatically establish compatibility with the plant network hardware.
• TDI and software revision: The gateway depends on the 3500/22M TDI and documented software revisions. Bently Nevada specifies 3500 Rack Configuration Software Version 3.70 or later and 3500/22M TDI firmware Version 1.20 or later for the 3500/91 application. Verify these requirements before installation.

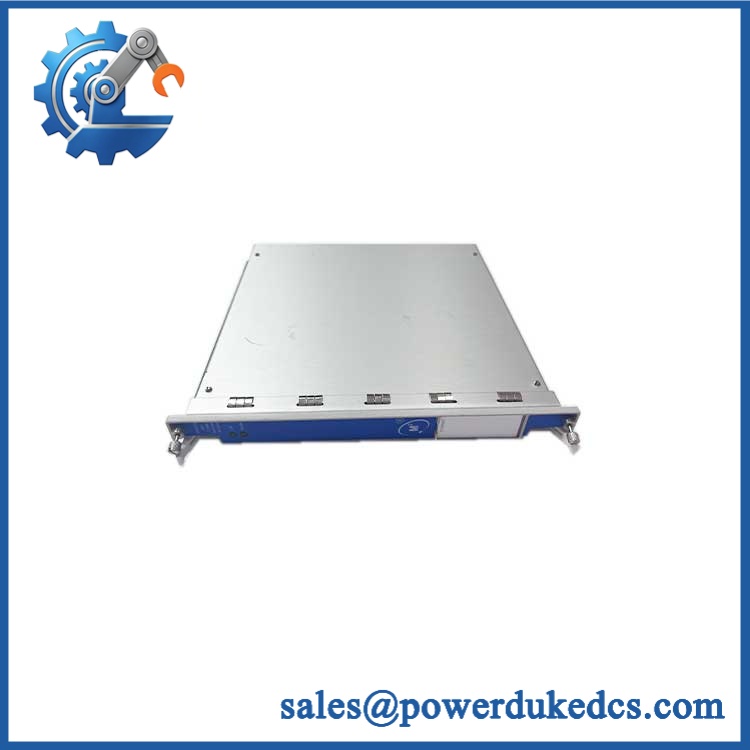

Bently Nevada 3500/91 161204-01

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 3500/91 161204-01 should include:

• Identity verification: Confirm the complete 161204-01 part number, 3500/91 designation, serial number, labels, connectors, and hardware revision.
• OEM anti-counterfeit visual inspection: Examine Bently Nevada markings, PCB identifiers, connector construction, component placement, solder quality, and evidence of unauthorized modification.
• Mechanical inspection: Check the housing, card edge, retaining hardware, front-panel indicators, and rear interface connections for damage or contamination.
• Power-on self-test (POST): Install the module in an approved 3500/91 test rack and verify normal startup and diagnostic indications.
• LED verification: Check applicable gateway status, transmit/receive, and diagnostic indicators under normal and simulated network states.
• TDI interface test: Connect the gateway to a compatible 3500/22M TDI and verify correct rack-data acquisition.
• Ethernet link test: Establish network connectivity through the configured Ethernet I/O module and verify stable link operation.
• EGD communication test: Transmit representative rack data through an EGD test environment and confirm expected receipt at the host.
• Data-integrity verification: Compare selected source values, status points, and alarm states with the corresponding data received by the test host.
• Network parameter test: Verify IP addressing and applicable gateway network settings against the approved test configuration.
• Alarm/status transfer test: Trigger representative monitor states and confirm accurate transmission through the gateway.
• Extended network test: Run sustained data traffic while monitoring for dropped packets, resets, intermittent communication, or diagnostic faults.
• Configuration verification: Confirm gateway settings and connected I/O configuration before final release.
• Final QC: Record serial number, hardware revision, Ethernet I/O type, EGD test results, TDI communication results, condition grade, photographs, and packaging approval.

A successful power-up is not sufficient acceptance for a communication gateway. The critical test is end-to-end transfer of actual 3500 rack data through the TDI, gateway, Ethernet interface, and host environment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/91 161204-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 161204-01 part number before PO release. Emergency dispatch depends on verified physical stock, payment clearance, export documentation, and the carrier’s daily collection cutoff.

How do you verify the condition and authenticity of this legacy EGD gateway?
Require complete part-number and serial verification, OEM marking inspection, PCB and connector examination, power-up diagnostics, TDI communication testing, Ethernet link testing, EGD data-transfer verification, and documented final QC. The supplied condition should be clearly identified as New Surplus, New Factory Stock, or Tested Refurbished.

Does 161204-01 include the complete 3500/91 Ethernet interface assembly?
Not necessarily. 161204-01 is the main 3500/91 EGD Gateway Module. The Ethernet I/O hardware is separate, with the installed configuration determining whether copper or fiber connectivity is required. Verify the complete gateway assembly before release.

Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Yes. The documented 3500/91 requirements include 3500 Rack Configuration Software Version 3.70 or later and 3500/22M TDI firmware Version 1.20 or later. Engineers should also record the existing gateway configuration, network parameters, and Ethernet I/O type before replacement.

What warranty and return terms should procurement require?
The quotation should specify the exact 3500/91 161204-01 part number, hardware revision, condition grade, serial traceability, communication-test scope, warranty period, DOA coverage, and return authorization procedure. For a gateway module, the acceptance record should include documented TDI-to-host data-transfer testing.
