Bently Nevada 3500/91 161204-01 | EGD Gateway Module

• Brand: Bently Nevada
• Full Model Number: 3500/91 161204-01
• Lifecycle Status: Legacy / Lifecycle verification recommended
• Core Function: EGD Communication Gateway Module for the 3500 Machinery Protection System
• Top 3 Technical Specs: EGD protocol | Ethernet gateway architecture | Requires 3500/22M TDI for monitor-module data access
• Stock & Condition: Physical stock confirmation required | New Surplus / New Factory Stock / Tested Refurbished by lot | Emergency dispatch subject to inventory and carrier cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed communications gateway can leave a 3500 rack protecting machinery locally while critical monitoring data no longer reaches the plant control network. Bently Nevada 3500/91 161204-01 is the 3500/91 EGD Communication Gateway Module, responsible for gateway functions between the 3500 rack and an Ethernet-based control or automation network. Bently Nevada documentation identifies 161204-01 specifically as the EGD Gateway Module. The 3500/91 supports Ethernet Global Data and is designed to communicate with the 3500 rack through a 3500/22M TDI.

For an existing 3500 installation, replacing the gateway can be considerably less expensive than modifying the plant’s entire machinery-monitoring communications architecture. The existing rack, monitor population, DCS/PLC interface strategy, and configured data points can remain in service when the same gateway architecture is restored. The 3500/91 supports Ethernet TCP/IP communications and also supports Bently Nevada protocol and Modicon Modbus/Modbus TCP at the system level, while the exact I/O hardware must be matched separately. (For a legacy communications path, physically verified inventory can remove weeks of avoidable engineering delay.) The TCO comparison should include DCS engineering, register or tag remapping, network commissioning, outage exposure, and site testing—not simply the gateway purchase price.

Module 4: Compatibility & Replacement Matrix

The manufacturer’s ordering information lists 161204-01 as the 3500/91 EGD Gateway Module and lists 161216-01 and 161216-02 as separate Ethernet I/O modules. Therefore, 161204-01 by itself does not fully define the rear Ethernet I/O configuration.

Field Traps — Watch Out

• I/O configuration mismatch: The 3500/91 can use either a 10BASE-T/100BASE-TX copper I/O module or a 100BASE-FX fiber I/O module. Verify the installed rear I/O module before approving a replacement or complete gateway assembly.
• TDI dependency: The 3500/91 EGD gateway requires a 3500/22M TDI to communicate with the 3500 monitor modules. A gateway that powers up normally cannot provide the intended rack data path if the TDI architecture is incompatible.

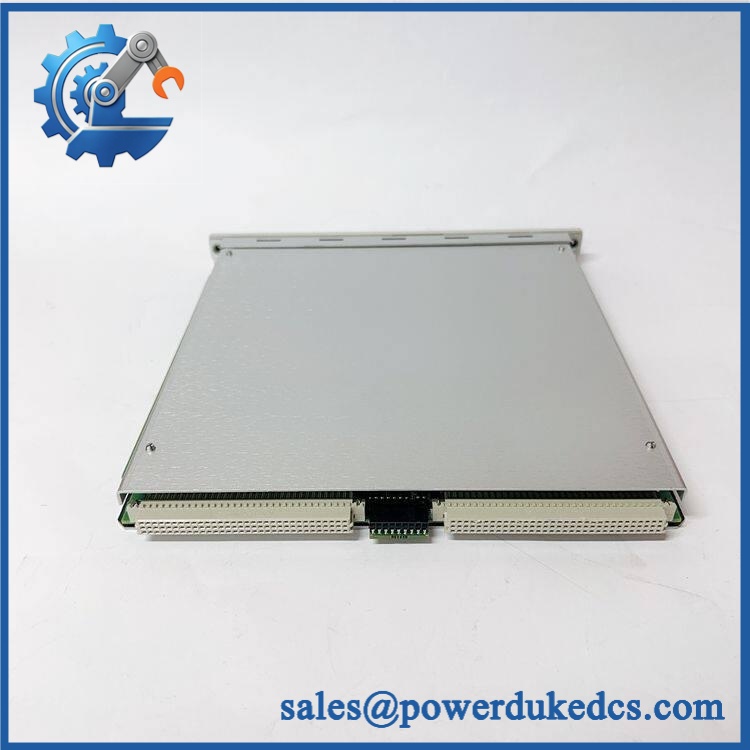

Bently Nevada 3500/91 161204-01

Module 5: Quality Assurance & Testing SOP

A strict pre-shipment inspection for Bently Nevada 3500/91 161204-01 should include:

• Identity verification: Confirm complete 161204-01 part number, 3500/91 designation, serial information, labels, connectors, and hardware revision.
• OEM anti-counterfeit visual inspection: Examine Bently Nevada markings, PCB identifiers, connectors, component placement, labels, solder quality, and evidence of unauthorized modification.
• Mechanical inspection: Check the module housing, card edge, retaining hardware, front-panel indicators, and rear interface connections for damage or contamination.
• Power-on self-test (POST): Install the module in an approved 3500/91 test rack and verify normal startup and diagnostic indications.
• LED verification: Check all applicable status LEDs under normal and simulated communication states.
• TDI interface test: Connect the gateway to a compatible 3500/22M TDI and verify correct rack data acquisition.
• Ethernet interface test: Establish communication through the installed Ethernet I/O configuration and verify stable packet exchange.
• EGD functional test: Verify transmission of representative 3500 rack data using a controlled EGD test environment.
• Network parameter test: Verify IP configuration, addressing, and communication stability against the approved test configuration.
• Data-integrity test: Compare selected rack measurement/status values at the source and gateway destination to verify correct transfer.
• Alarm/status verification: Confirm that representative rack status and alarm information is transmitted correctly.
• Connection endurance test: Monitor the gateway for repeated communication cycles, resets, dropped packets, or intermittent network loss.
• I/O configuration verification: Confirm the attached Ethernet I/O module is the correct copper or fiber configuration for the intended installation.
• Extended run test: Operate the gateway continuously under representative network traffic and monitor diagnostic status.
• Final QC: Record serial number, hardware revision, Ethernet I/O configuration, EGD test results, TDI communication results, condition grade, photographs, and packaging approval.

The 3500/91 is a communications gateway rather than a passive interface card. Its acceptance test therefore needs to demonstrate actual rack-data transmission, including the EGD communication path.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/91 161204-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 161204-01 part number before PO release. Current supplier records show this model available in the market, while individual suppliers quote different lead times, so emergency dispatch should be based on physically verified inventory rather than catalog status.

How do you verify the condition and authenticity of this legacy EGD gateway?
Require complete part-number and serial verification, OEM marking inspection, PCB and connector examination, power-up diagnostics, TDI communication testing, Ethernet testing, EGD data-transfer verification, and documented final QC. The condition should be explicitly stated as New Surplus, New Factory Stock, or Tested Refurbished.

Does 161204-01 include the complete 3500/91 gateway assembly?
Not necessarily. 161204-01 is the main 3500/91 EGD Gateway Module. The Ethernet I/O module is a separate component, with 161216-01 specified for 10BASE-T/100BASE-TX and 161216-02 for 100BASE-FX. The complete installed configuration should therefore be checked before the PO is released.

Are there firmware compatibility issues I should warn my engineers about before issuing the PO?
Yes. The manufacturer specifies 3500 Rack Configuration Software Version 3.70 or later for the 3500/91 EGD, and the gateway requires a 3500/22M TDI with firmware Version 1.20 or later. These requirements should be checked before installation or any broader gateway migration.

What warranty and return terms should procurement require?
The quotation should specify the exact 3500/91 161204-01 part number, condition grade, serial traceability, hardware revision, EGD communication-test scope, warranty period, DOA coverage, and return authorization procedure. For a communications gateway, the acceptance record should include actual rack-data and network-communication test results.
