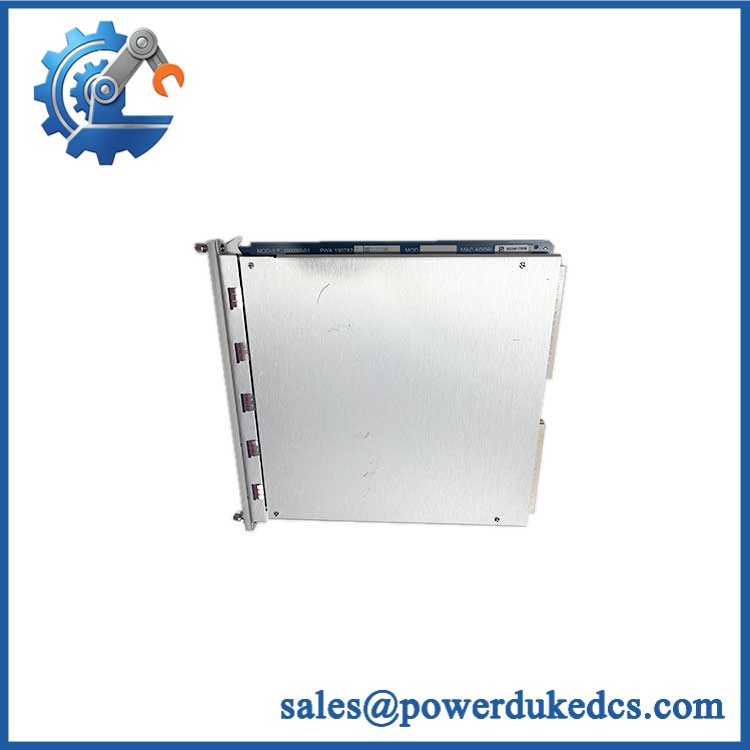

Bently Nevada 3500/93 135799-01 | Display Interface Module

• Brand: Bently Nevada
• Full Model Number: 3500/93 135799-01
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: 3500/93 Display Interface Module for system display communication
• Top 3 Technical Specs: 3500 System interface; RS-422 display communication; 3500 rack data and status transfer
• Stock & Condition: New surplus / tested refurbished — verify firmware revision and associated display hardware before PO

Bently Nevada documentation identifies 135799-01 as the 3500/93 Display Interface Module. It provides the interface between the 3500 rack and the associated system display, while the actual display hardware is a separate component. Baker Hughes documentation also identifies 135799-01 in the 3500/93 software and firmware requirements for compatible 3500 applications.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 135799-01 can remove the operator’s local display path even while the underlying 3500 monitor modules continue performing their machinery-monitoring functions. The module sits between the 3500 rack architecture and the 3500/93 display system, handling rack data and status information required by the display. For a plant that depends on a local operator display for alarm review, measurement status, or rack diagnostics, an unavailable interface module can turn a relatively small hardware failure into a maintenance delay.

From a TCO standpoint, replacing the exact 135799-01 can preserve the existing 3500 rack, display hardware, communication cabling, and established operator workflow. That avoids the engineering and commissioning cost of redesigning the display architecture. The procurement risk is configuration matching. 135799-01 is the Display Interface Module, not the 3500/93 display itself, and the installed software/firmware environment must also be checked. Baker Hughes documentation lists 3500/93 firmware revision G as a requirement in certain current 3500 configurations, so engineers should verify the installed revision before issuing a replacement PO.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Display Interface Module versus Display: The 135799-01 is the interface module. It should not be confused with the 3500/93 display assembly itself. Confirm which component failed before approving the purchase.

Firmware revision: Baker Hughes documentation identifies 3500/93 Display Interface Module 135799-01 with firmware revision G as a required combination in documented 3500 configurations. A replacement should therefore be checked for the required firmware revision rather than accepted solely because the part number matches.

Rack configuration: The 3500 system uses separate main modules and rear I/O modules. Verify the interface module’s physical slot and associated rear connections before replacement.

Bently Nevada 3500/93 135799-01

Module 5: Quality Assurance & Testing SOP

The 135799-01 should undergo controlled electrical, communication, and display-system testing before shipment.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and revision/date-code information.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCB surfaces, connectors, mounting hardware, and enclosure.
• Check for corrosion, contamination, cracked components, damaged contacts, or evidence of unauthorized repair.

2. Configuration verification

• Confirm 3500/93 135799-01 identification.
• Record hardware revision.
• Verify the unit is the Display Interface Module, not the display assembly.
• Record firmware revision where available.
• Confirm the intended associated display and rack configuration.
• Photograph identification markings for traceability.

3. Power-on testing

• Install the unit in a compatible 3500 test configuration.
• Apply controlled rack power.
• Perform power-on self-test (POST) at the system level.
• Check applicable OK/TX-RX/CONFIG/status indications.
• Confirm normal module initialization.
• Verify the rack does not report interface or configuration faults.

4. Communication and display testing

• Connect the appropriate 3500 display hardware.
• Verify communication between the 3500 rack and display interface.
• Confirm representative measurement values appear correctly.
• Verify alarm and status information transfer.
• Check navigation and display response.
• Verify configured rack information is presented correctly.
• Test any applicable external communication path.
• Perform I/O load testing on associated interface circuits where applicable.
• Run an extended communication test to detect intermittent faults.

5. Final QC

• Record startup status, communication results, firmware revision, serial number, and test date.
• Confirm the supplied module matches the requested configuration.
• Generate a unit-specific Test Report.
• Verify connector and mounting integrity.
• Package using ESD and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 3500/93 135799-01 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual serial-numbered module, including condition, hardware revision, and firmware revision. Emergency dispatch depends on completed QC, order/payment clearance, warehouse processing, and the courier cutoff.

How do you guarantee the condition and authenticity of surplus 135799-01 units?

Require complete part-number and serial-number verification, PCB inspection, connector inspection, controlled rack power-up, display-interface recognition, communication testing, and a unit-specific Test Report. Actual photographs of the supplied module should be retained with the procurement record.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. The firmware revision must be checked against the installed 3500 system. Baker Hughes documentation specifically identifies 135799-01 with 3500/93 firmware revision G in documented compatibility requirements. Record the existing revision before replacement and verify it after installation.

Can I substitute another 3500/93 interface or display component?

Not automatically. The Display Interface Module, Display Interface I/O Module, and actual display assembly are separate components within the 3500/93 architecture. Match the failed component, associated hardware, and firmware requirements before approving substitution.

What warranty and return terms should procurement require?

Specify 3500/93 135799-01, serial number, hardware and firmware revision, tested condition, warranty period, DOA criteria, acceptance window, and return procedure in the PO. Functional acceptance should include successful rack initialization, display communication, measurement-data transfer, and alarm/status verification.
