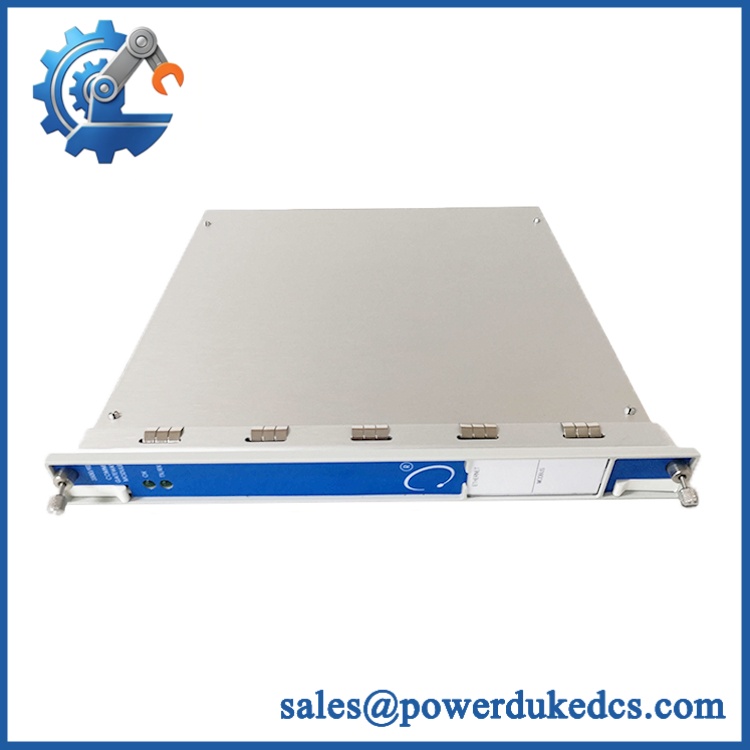

Bently Nevada 3500/94M 184826-01 | VGA Display Main Module

Description

• Brand: Bently Nevada
• Full Model Number: 3500/94M 184826-01
• Lifecycle Status: Legacy / Lifecycle-managed
• Core Function: 3500/94M VGA display main module for local machinery-monitoring visualization
• Top 3 Technical Specs: VGA video output; RS232 touch-controller interface; 24 VDC front-panel display power interface
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Emergency dispatch subject to order cutoff

The 184826-01 is the 3500/94M Main Module. The 3500/94M display system provides local visualization of 3500 machinery data, including vibration levels, system and alarm event lists, module/channel information, and custom display screens. The complete display arrangement also includes a separately specified I/O module and display monitor.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 184826-01 can remove the local display and operator-interface function from a 3500 machinery-protection installation even while the underlying monitoring modules continue to collect protection data. The 3500/94M Main Module interfaces with the associated I/O hardware and display, providing the video and touch-control paths required for local visualization. Bently Nevada documentation identifies 184826-01 separately from the 190214-01 Normal I/O Module, 190214-02 Power-only I/O Module, display units, and cable assemblies.

The TCO case is straightforward when the existing 3500/94M architecture remains serviceable. Replacing the failed main module can preserve the established display hardware, rack wiring, touch interface, and configured screens instead of initiating a broader display-system change. The published specification identifies a maximum power consumption of approximately 4.6 W, with an operating temperature range of −20°C to +65°C for the module. For outage work, verify the installed I/O type and display mounting arrangement before shipment — the main module alone does not constitute the complete 3500/94M display system.

Module 4: Compatibility & Replacement Matrix

The 3500/94M is configured through 3500 Rack Configuration Software, and Bently Nevada specifies different touchscreen-controller configurations for the supported display types.

Field Traps — Watch Out

• Main module versus I/O module: 184826-01 is the main module. 190214-01 and 190214-02 are separate I/O assemblies. Procurement must identify which component has actually failed before issuing the PO.
• Display and touch configuration: Different supported displays use different touch-controller arrangements and require the corresponding configuration in the 3500 software. Verify display size, mounting method, cable set, and touch interface before commissioning.

Bently Nevada 3500/94M 184826-01

Module 5: Quality Assurance & Testing SOP

The main module should be tested as part of a complete 3500/94M interface rather than evaluated only as a powered PCB.

• Incoming traceability: Record Bently Nevada identification, complete 184826-01 part number, serial number, revision, and visible configuration markings.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, VGA connector, RS232 interface, components, solder quality, enclosure, and evidence of unauthorized repair.
• Mechanical inspection: Check card-edge connectors, mounting points, ejector hardware, housing condition, and rack mating surfaces.
• Power-on self-test (POST): Install in an approved 3500/94M test arrangement and verify startup and normal diagnostic behavior.
• Power verification: Apply the specified rack supply and confirm stable operation, current draw, and absence of abnormal heating.
• VGA output test: Connect an approved display and verify synchronization, image stability, resolution, and screen integrity.
• RS232 touch-controller test: Verify serial communication between the main module and the compatible touch controller.
• I/O integration test: Confirm correct operation with the applicable 190214-01 or 190214-02 I/O configuration.
• Display-data test: Verify representative vibration values, system status, alarm event information, module data, and configured screens.
• Touch-function test: Execute representative navigation and selection commands through the touchscreen interface.
• Cable verification: Check VGA, serial, and power-cable continuity, connector engagement, and routing.
• Extended operation: Run the display interface continuously while monitoring image stability, communication integrity, and temperature.
• Final QC release: Record part number, revision, I/O configuration, VGA results, serial-interface results, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 3500/94M 184826-01 genuinely in stock, and what is the cutoff for emergency shipping?

Current supplier records show 184826-01 being offered as available, including listings reporting in-stock quantities. Actual emergency availability should still be confirmed against the physical warehouse, exact revision, and dispatch cutoff before PO release.

2. How do you guarantee the condition and authenticity of this surplus 3500/94M main module?

Verification should start with the complete 184826-01 identification, serial information, PCB markings, connectors, and enclosure condition. Functional QA should then cover controlled power-up, VGA video output, RS232 touch communication, and integration with the correct 3500/94M I/O assembly. The test record should remain attached to the unit’s MRO documentation.

3. Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

The primary concern is 3500/94M configuration compatibility, rather than treating the main module as a generic VGA interface. Engineers should verify the installed I/O module, display type, touch-controller configuration, software baseline, and cable arrangement. Bently Nevada specifies separate I/O and display components within the 3500/94M system.

4. Can the 184826-01 replace the existing 3500/94M main module without hardware modification?

For a like-for-like 184826-01 replacement, additional cabinet modification is normally unnecessary. The existing I/O assembly, display arrangement, touch interface, and cable set must still match. The main module does not replace the separately specified I/O hardware.

5. What warranty and return terms should procurement require?

The PO should specify Bently Nevada 3500/94M 184826-01, exact revision, condition, associated I/O configuration, test status, warranty period, and return procedure. Warranty coverage should address DOA and verified main-module failure while excluding damage caused by incorrect power, ESD, cable faults, incompatible display hardware, improper installation, or unauthorized modification.
